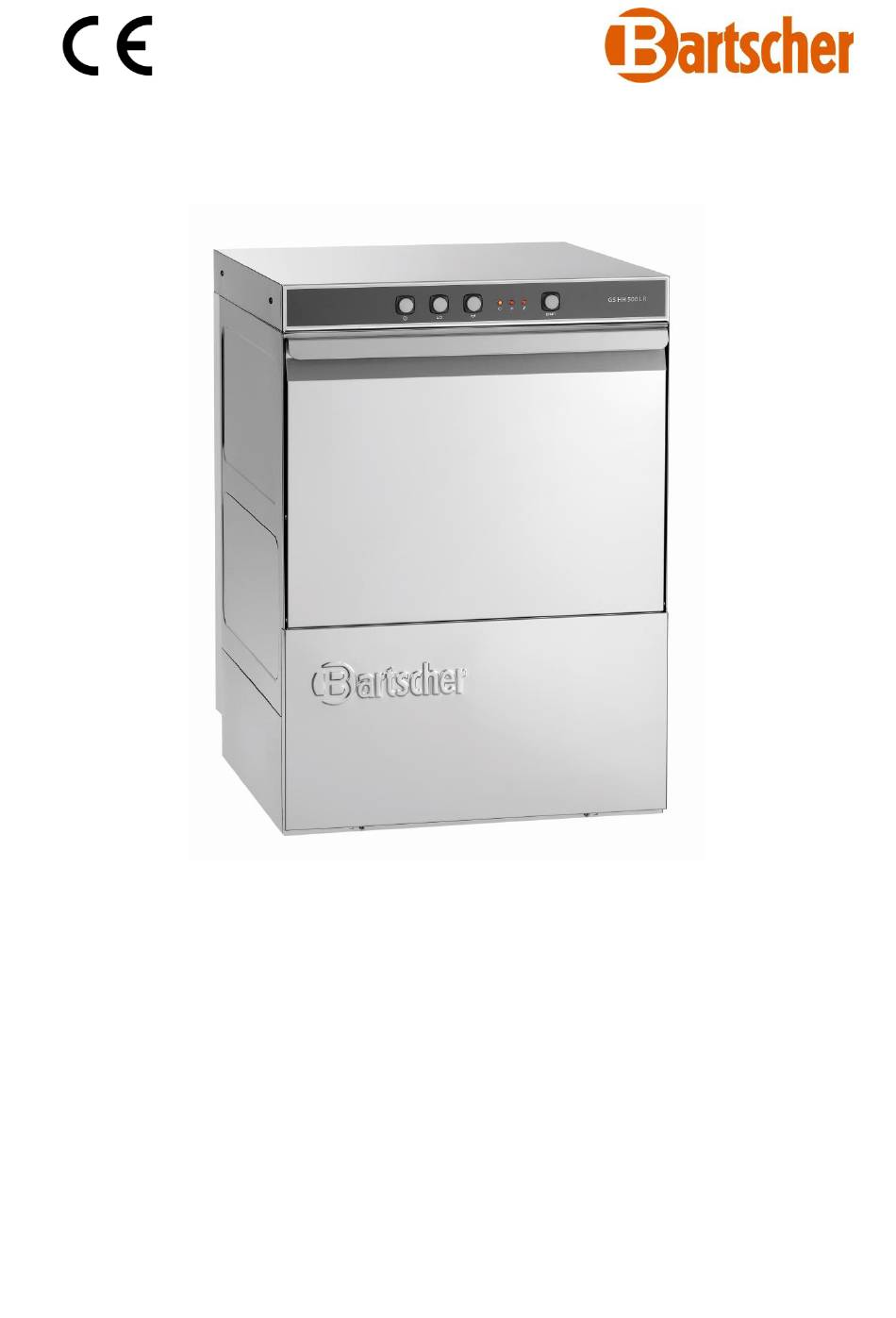

- Page 1 GS HH 500 LR / 109782 REV01 20-04-2017...
-
Page 4: Table Of Contents
INSTRUCTION MANUAL FOR DISHWASHERS TRANSLATION FROM THE ORIGINAL INSTRUCTIONS CONTENTS CHAP 1 PREFACE ........................2 CHAP 2 INSTALLATION ......................2 ........................2 NPACKING ........................3 OSITIONING ....................3 LECTRICAL CONNECTION ..................... 4 ATER CIRCUIT HOOKUP ..................4 ONNECTION TO THE DRAIN LINE .................... -
Page 5: Chap 1 Preface
INSTRUCTION MANUAL FOR DISHWASHERS Chap 1 PREFACE This manual contains important safety warnings relating to installation, use and maintenance. Failure to observe the instructions in the enclosed documentation may compromise the safety of the appliance and immediately voids the warranty. Warnings: Keep all documentation in the vicinity of the appliance;... -
Page 6: Positioning
INSTRUCTION MANUAL FOR DISHWASHERS 2.2 Positioning Check that there are no objects or materials in the installation area which may be damaged by the steam emitted by the appliance during operation, or if there are, make sure they are properly protected. ... -
Page 7: Water Circuit Hookup
INSTRUCTION MANUAL FOR DISHWASHERS 2.4 Water circuit hookup The appliance must be connected to its water supply with a flexible hose. A shut off valve (cock) must be installed between the water supply line and the appliance's solenoid valve. The cock must be close to the appliance. ... -
Page 8: Chap 3 Risks And Important Warnings
INSTRUCTION MANUAL FOR DISHWASHERS Chap 3 RISKS AND IMPORTANT WARNINGS This appliance is intended solely for the use for which has been designed. Any other use is improper and hazardous. The specialised technician responsible for installing the appliance must instruct the user on its operation and any attendant safety measures, including practical demonstrations. -
Page 9: Chap 4 Using The Machine
INSTRUCTION MANUAL FOR DISHWASHERS Chap 4 USING THE MACHINE 4.1 Key and symbols Referring to Fig.1: ON/OFF BUTTON 5 POWER LED DRAIN BUTTON 6 CYCLE UNDERWAY LED PROGRAMME SELECTION BUTTON 7 HEATING UNDERWAY LED START BUTTON The arrangement of buttons and leds may vary according to the machine type Switching the dishwasher on Referring to Fig.2: ... -
Page 10: Hood Dishwashers
INSTRUCTION MANUAL FOR DISHWASHERS 4.4.2 Hood dishwashers Select the washing cycle suited to the type of dishes using PROGRAMME SELECTION (3); with the button pressed, the shorter cycle is enabled (Fig. 4). Press START (3) for automatic start (Fig. 6). ... -
Page 11: End Of Shift
INSTRUCTION MANUAL FOR DISHWASHERS Proceed as follows (Fig. 11): Switch the dishwasher off Empty and clean it. Remove the integral filter and open the salt container in the tub. Pour in 250-300g of regeneration salt (1 or 2mm grain size kitchen salt with no additives). ... -
Page 12: Cleaning The Arms
INSTRUCTION MANUAL FOR DISHWASHERS 5.4 Cleaning the arms The wash and rinse arms are easily removed in order to clean their nozzles and prevent blockage/encrustations. Proceed as follows ( Fig.10 ): Undo nut R and remove the arms. Wash all parts under a jet of running water and clean the nozzles thoroughly, using a toothpick or pointed tool if necessary. -
Page 13: Chap 7 Dosing Unit Settings
INSTRUCTION MANUAL FOR DISHWASHERS Chap 7 DOSING UNIT SETTINGS If the machine is equipped with dosing units, the settings can be changed as follows: Machine in standby with door open. Simultaneously hold pressed the DRAIN (2) and START (4) buttons. ...
