Summary of Contents for Bartscher DS 903

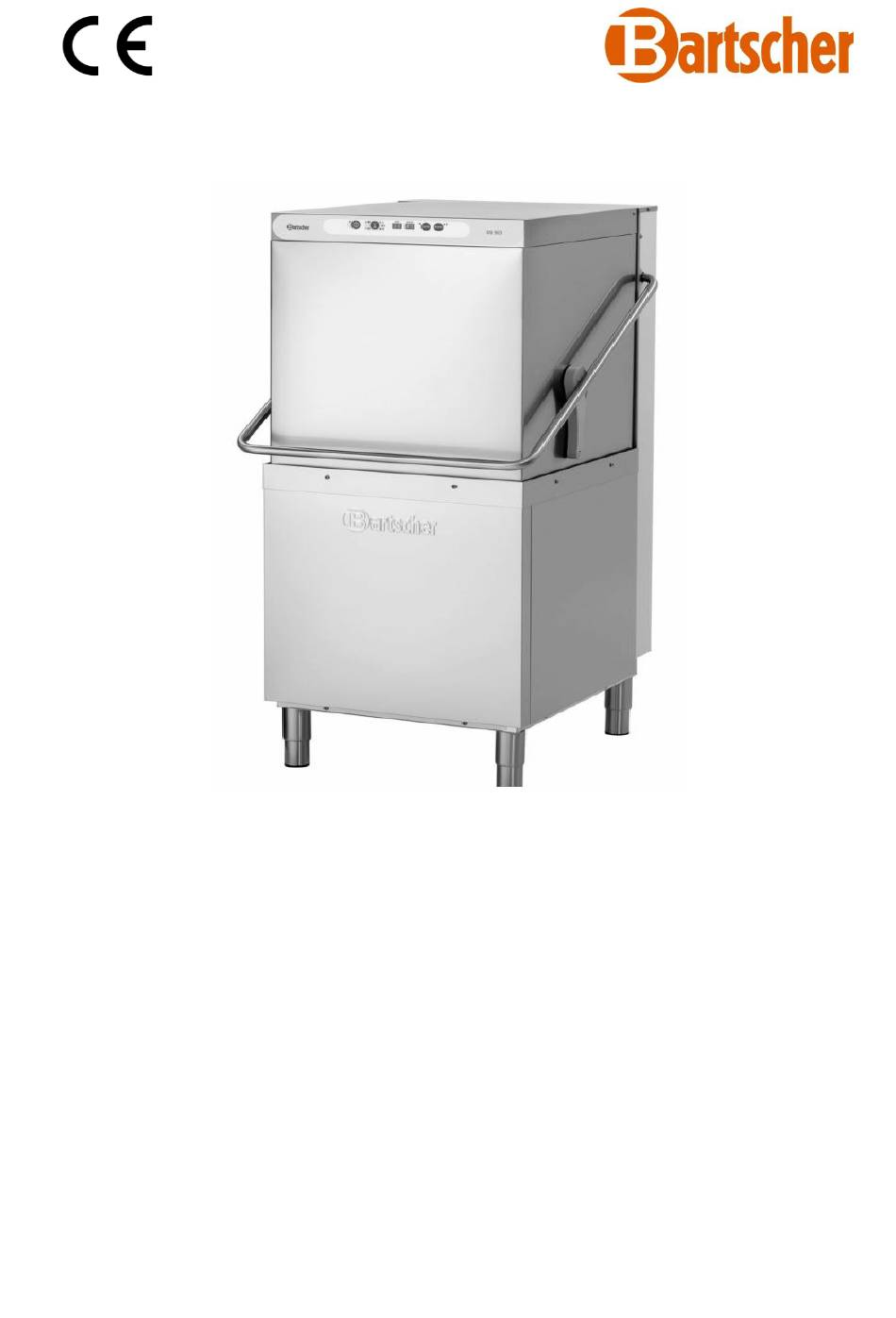

  • Page 1 DS 903 / 109342 Rev 01 16-10-2018...
  • Page 4: Table Of Contents

    INSTRUCTION MANUAL FOR DISHWASHERS TRANSLATION FROM THE ORIGINAL INSTRUCTIONS CONTENTS CHAP 1 PREFACE ........................2 CHAP 2 INSTALLATION ......................2 ........................2 NPACKING ........................3 OSITIONING ....................3 LECTRICAL CONNECTION ..................... 4 ATER CIRCUIT HOOKUP ..................4 ONNECTION TO THE DRAIN LINE ....................
  • Page 5: Chap 1 Preface

    INSTRUCTION MANUAL FOR DISHWASHERS Chap 1 PREFACE This manual contains important safety warnings relating to installation, use and maintenance. Failure to observe the instructions in the enclosed documentation may compromise the safety of the appliance and immediately voids the warranty. Warnings: Keep all documentation in the vicinity of the appliance;...
  • Page 6: Positioning

    INSTRUCTION MANUAL FOR DISHWASHERS 2.2 Positioning  Check that there are no objects or materials in the installation area which may be damaged by the steam emitted by the appliance during operation, or if there are, make sure they are properly protected. ...
  • Page 7: Water Circuit Hookup

    INSTRUCTION MANUAL FOR DISHWASHERS 2.4 Water circuit hookup The appliance must be connected to its water supply with a flexible hose. A shut off valve (cock) must be installed between the water supply line and the appliance's solenoid valve. The cock must be close to the appliance. ...
  • Page 8: Chap 3 Risks And Important Warnings

    INSTRUCTION MANUAL FOR DISHWASHERS Chap 3 RISKS AND IMPORTANT WARNINGS  This appliance is intended solely for the use for which has been designed. Any other use is improper and hazardous.  The specialised technician responsible for installing the appliance must instruct the user on its operation and any attendant safety measures, including practical demonstrations.
  • Page 9: Chap 4 Using The Machine

    INSTRUCTION MANUAL FOR DISHWASHERS Chap 4 USING THE MACHINE 4.1 Key and symbols Referring to Fig.1: ON/OFF LED AND BUTTON 4b RINSE TEMPERATURE DISPLAY PROGRAMME SELECTION BUTTON 5 CYCLE LED START BUTTON 6 STATE LED AUTOMATIC START BUTTON 7 AUTOMATIC START LED (hood only) 4a WASHING TEMPERATURE DISPLAY Short washes Drain cycle...
  • Page 10: Cycle Selection And Start-Up

    INSTRUCTION MANUAL FOR DISHWASHERS Cycle selection and start-up 4.4.1 Under-counter dishwashers  Press the PROGRAMME SELECTION (2) button repeatedly to select a wash cycle that is suitable for the dishes to be washed; the cycle LED lights up to indicate the cycle chosen (Fig. 4). ...
  • Page 11: Turning The Dishwasher Off

    INSTRUCTION MANUAL FOR DISHWASHERS 4.8 Turning the dishwasher off  Press ON/OFF (1), on the DISPLAY (4) the central segments will light up, indicating that the machine is powered. Resin regeneration (*optional) n machines fitted with water softener, when the warning ‘SA Lt’ appears you should add salt to the relative container;...
  • Page 12: Chap 5 Maintenance

    INSTRUCTION MANUAL FOR DISHWASHERS Chap 5 MAINTENANCE 5.1 General rules Before doing any maintenance, completely drain out all water, shut off the power supply and close the water supply cock. Do not use water under pressure - it can damage the electrical equipment. Only wash the body panelling when it is cold, using only product specifically designed for steel.
  • Page 13: Chap 6 Self Diagnostics

    INSTRUCTION MANUAL FOR DISHWASHERS Chap 6 SELF DIAGNOSTICS The machine is equipped with a self-diagnosis system that registers and warns of a number of malfunctions. Fault Description and possible remedies No rinsing. The rinsing cycle was not completed correctly. Make sure that the rinsing nozzles are clean.
  • Page 14: Chap 7 Settings

    INSTRUCTION MANUAL FOR DISHWASHERS Chap 7 SETTINGS The following settings should only be configured by a qualified technician. The parameters listed below can be set during installation of afterwards, accessing the settings menu as follows:  Machine in standby with door open. ...
  • Page 15: Hardness Settings For The Incorporated Water Softener

    INSTRUCTION MANUAL FOR DISHWASHERS 7.1 Hardness settings for the incorporated water softener Set the hardness level of the water supply dH in the settings menu following the instructions given in the following table: Measured hardness °fr n° 0  20 0 ...
