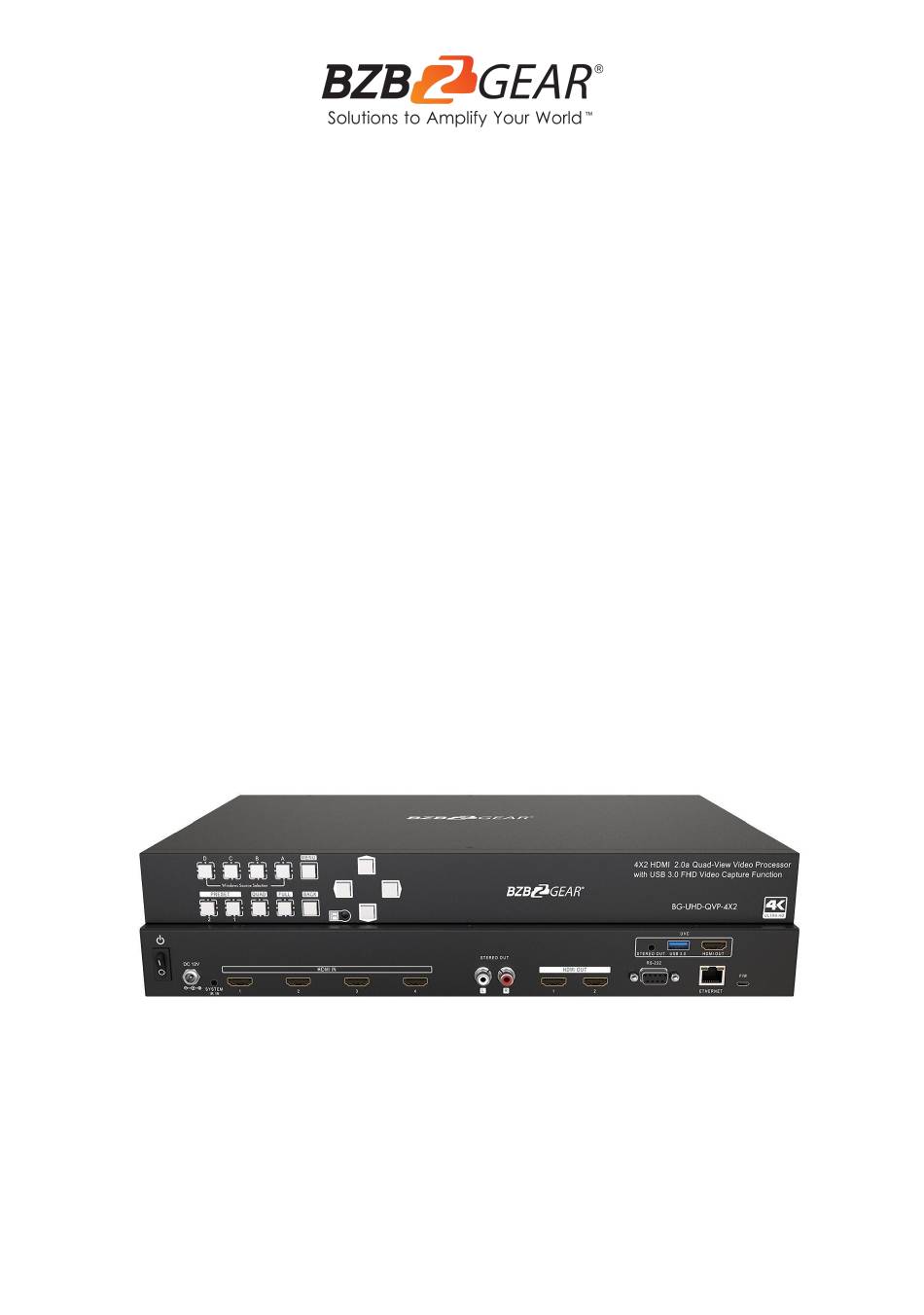

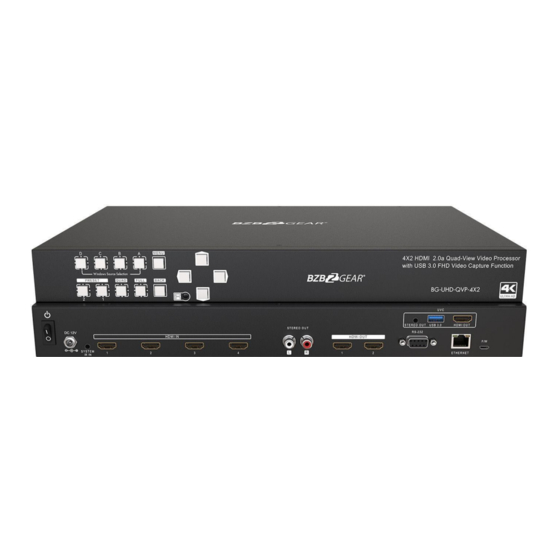

- Page 1 BG-UHD-QVP-4X2 4K/UHD 4X2 Seamless Multiviewer/Presentation Switcher/Scaler with USB Capture Card User Manual...
- Page 2 BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com...
-
Page 3: Table Of Contents
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL TABLE OF CONTENTS Statement Safety Precaution Introduction Features Packing List Specifications Operation Controls and Functions Method A: IR Remote Control Method B: Software Control through RS-232 / Ethernet port Control interface Connection Status Output Settings Advanced Setting EDID (Extended Display Identification Data) -
Page 4: Statement
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL Statement Please read these instructions carefully before connecting, operating, or configuring this product. Please save this manual for future reference. Safety Precaution ● To prevent damaging this product, avoid heavy pressure, strong vibration, or immersion during transportation, storage, and installation. -
Page 5: Introduction
PRODUCT MANUAL Introduction The BG-UHD-QVP-4x2 is a 4x2 HDMI 2.0a quad-view video processor with 4K2K@60 4:4:4 & USB 3.0 capabilities. FHD video capture functionality provides the most flexible and cost effective solution in the market to route ultra-high definition video from any of the four UHD HDMI sources to two remote displays at the same time. -
Page 6: Packing List
*Cloud support is thru an encrypted communication to provide the best private protection when using BG-UHD-QVP-4X2 Packing List ● 1 x BG-UHD-QVP-4X2 ● 1 x IR Receiving cable ● 1 x DC 12V 5A ● 1 x USB 3.0 A to A Cable (host to device) ●... -
Page 7: Specifications
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL Specifications Model Name BG-UHD-QVP-4X2 Technical Usage Multiplexer / video processor Background picture updatable HDCP compliance 1.4 / 2.2 HDMI compliance HDMI 2.0a Video bandwidth HDMI [600MHz [18Gbps] Output Video Support Up to 4K2K@60 (4:4:4 8bits) Video support (USB) - Page 8 BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL Mechanical Housing Metal Enclosure Color Black Model: 390 x 248 x 44mm [1'3" x 9.8" x 1.7"] Dimensions Package: 526 x 318 x 156mm [1'7" x 12.5" x 6.1"] (L x W x H) Carton: 543 x 335 x 344mm [1'8" x 13.2" x 1'1"] Model: 2.2 kg [5 lbs]...
-
Page 9: Operation Controls And Functions
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL Operation Controls and Functions Front Panel Name Function Description Windows Source Window A-D source selection (from the left to the right is D, C, B, A) Selection A-D Presets User preset 2 and user preset 1... -
Page 10: Method A: Ir Remote Control
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL Method A: IR Remote Control Button Function POWER Power on/off the device LOCK Lock/unlock the device Arrow button (up) MENU OSD menu AUDIO Select audio sources Arrow button (right) Trigger the setting Arrow button (left) MUTE Turn off... -
Page 11: Method B: Software Control Through Rs-232 / Ethernet Port
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL Method B: Software Control through RS-232 / Ethernet port System Requirement 1. OS information: MS Win XP/7/8/10 2. Baud rates: 115200 3. Software size: 10 MB 4. Minimum RAM requirement: 256MB Control interface When clicking on the executable file, the following dialog will pop-up (under Microsoft Windows 7, please run as administrator) RS-232 serial Mode: Use RS-232 to connect the port on device and computer. -
Page 12: Connection Status
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL 1. Connection Status Shows connection information and status. If users use RS-232 serial Mode to connect device, the symbol is . In contrast, if Ethernet is connected then is shown. In addition, if users would like to change the control method, users can click on the symbol. - Page 13 BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL (3) Output Resolution Set the output resolution. (4) Save Layout There are 8 custom layout spaces for users to save frequently used configurations. (5) Display Panel In the left part of the control interface, users can customize the display mode. The different colors of frame represent the different input windows.
-
Page 14: Advanced Setting
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL 3. Advanced Setting (1) Label Text Users can input the text to be shown with the video. (2) Sound Select the audio source of the output and R/L channels. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... - Page 15 BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL (3) Window Label On this screen users can turn the window labels/borders on or off. (4) Background This screen is used to set the background of a window. Users can upload up to 4 background pictures. Click the File button to load the picture which you want to use and then click the Start button to write this picture to the device.
-
Page 16: Edid (Extended Display Identification Data)
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL 4. EDID (Extended Display Identification Data) (1) Learn EDID from Default ➔ Select Default EDID ➔ Select Input ➔ Click button to learn default EDID. · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... -
Page 17: System Setting
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL 5. System Setting (1) Firmware Update ➔ Click button to do firmware update. ➔ The “Firmware update” window shows up as below: · · Address: 830 National Drive #140, Sacramento, CA 95834, USA Tel: +1(888)499-9906 Email: support@bzbgear.com... - Page 18 BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL ➔ Select the correct COM port or click the “Scan” button to connect a device. ➔ Click the “update” button perform a firmware update. (2) Factory Reset ➔ Click button to do factory default reset. ➔ The process of default reset will take about 25 seconds.
-
Page 19: Ip Configure
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL 6. IP Configure Users also can use the WEB to control the mixer. First, users should click on the button to set network settings. Next, users can set the Ethernet settings for the unit as shown below. After completing IP configuration, click the The default IP address of the device is: 192.168.1.46... -
Page 20: Refresh
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL 8. Refresh Refreshes the device and updates the software state. Method C: Cloud Control (Eagleyes) through Ethernet Port Create Account The first time using the Eagleyes service you will need to create a new account. 1. Access Eagleyes at (http://www.eagleyes.io) and click “Create new account”. -
Page 21: Add Device To Eagleyes
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL Add Device to Eagleyes 1. First, please make sure the device is connected via Ethernet. Then use the software to generate the register code (see Section 3 Step 5: ‘Cloud Settings’ above). 2. Access Eagleyes (http://www.eagleyes.io), and then log in your account in the top right corner. -
Page 22: Usb Pin Definition
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL 3. Enter the Installer Email for online support in the future, and the Association Code for pairing your device. 4. After adding the device, the list of devices related to your account will show on the right top corner. -
Page 23: Hardware Installation
Hardware Installation BG-UHD-QVP-4X2 as master 1. Connect all sources to HDMI Inputs on the BG-UHD-QVP-4X2. 2. Connect the display to HDMI Output on the BG-UHD-QVP-4X2. 3. Connect the +12V 5A DC power supply to the BG-UHD-QVP-4X2. Connection Diagram · ·... -
Page 24: Tech Support
BZBGEAR BG-UHD-QVP-4X2 PRODUCT MANUAL Tech Support Have technical questions? We may have answered them already! Please visit BZBGEAR’s support page (bzbgear.com/support) for helpful information and tips regarding our products. Here you will find our Knowledge Base (bzbgear.com/knowledge-base) with detailed tutorials, quick start guides, and step-by-step troubleshooting instructions.
