Summary of Contents for VMP LCD-2537C

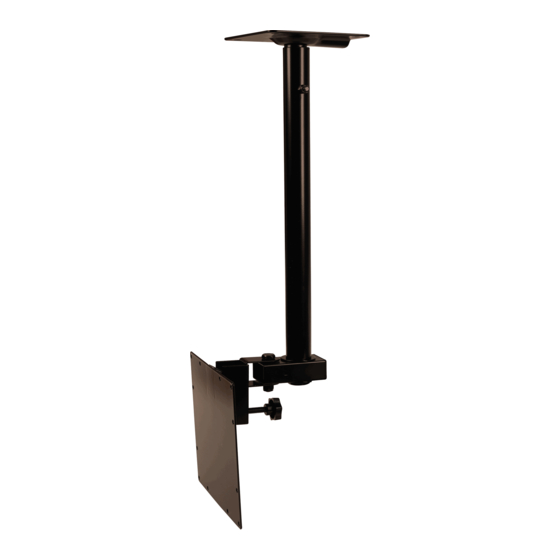

- Page 1 VIDEO MOUNT PRODUCTS Instruction Sheet For: LCD-2537C & LCD-2537CB For more information, please contact us at: 325 Log Canoe Circle, Stevensville, Maryland 21666 (T) 410.643.6390 / (F) 410.643.6615 www.videomount.com...
- Page 2 Step1 Before starting, lay out all parts to your mount and match them to the parts list provided. Verify that you have all your parts before at- tempting to assemble the mount. Step 2 Determine which VESA standard plate you will be using (75mm/100mm or 200mm/100mmx200mm respectively) and at- tach the selected mounting plate to the swivel bracket...
- Page 3 Step 5 Attach the support tube to the extension tube using the 3/4” screw and washers Step 6 Attach the mounting plate assembly from step 2 to your LCD moni- tor using the M4 or M5 screws as appropriate. Step 7 Attach the extension tube to the ceiling plate using the...
