Summary of Contents for VMP 046

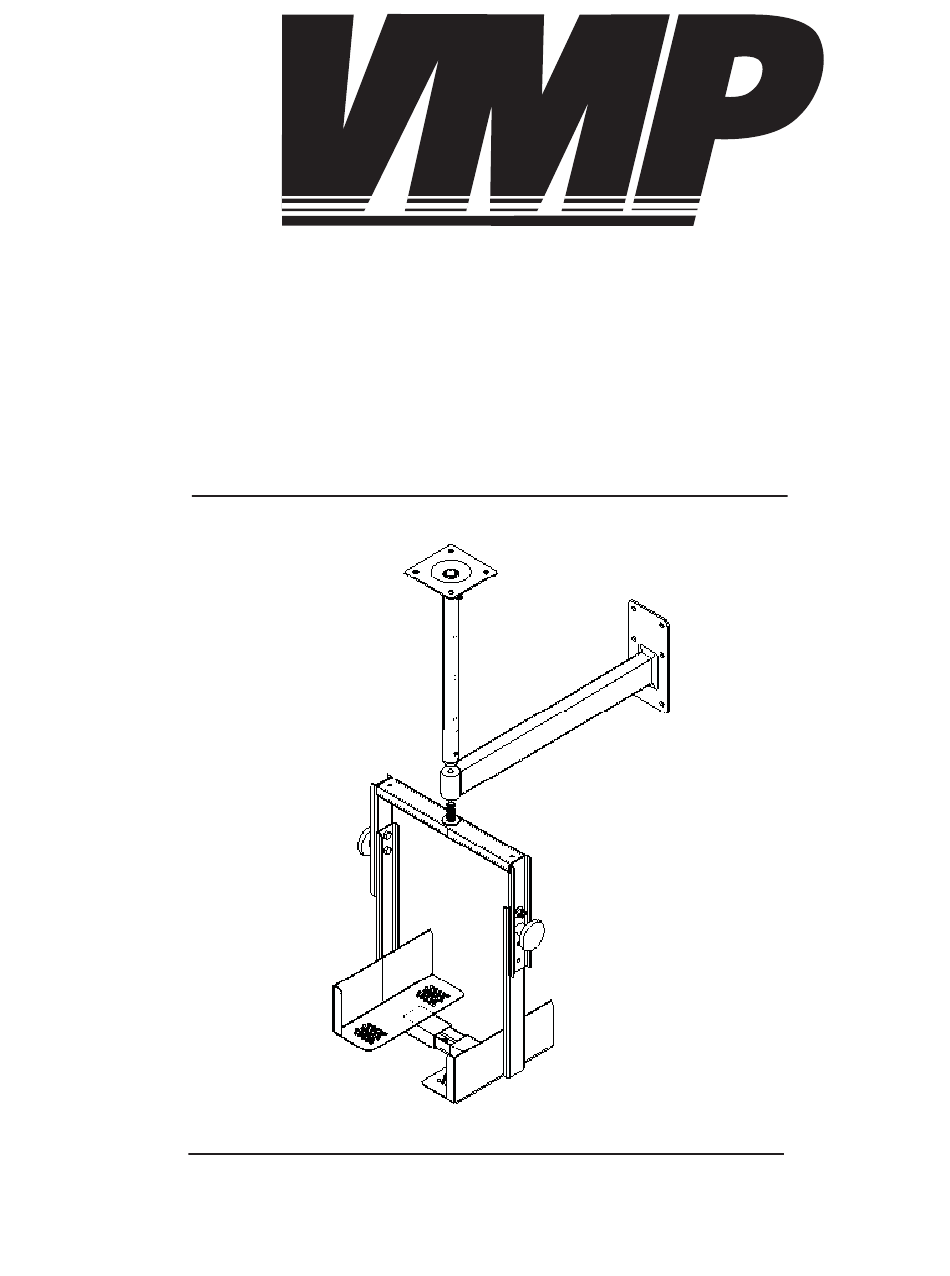

- Page 1 VIDEO MOUNT PRODUCTS Instruction Sheet For: VMP 046/048 For more information, please contact us at: 325 Log Canoe Circle, Stevensville, Maryland 21666 (T) 410.643.6390 / (F) 410.643.6615 www.videomount.com...
- Page 2 Step 1 Before starting lay out all parts to your mount and match them to the parts list provided. Verify that you have all your parts before attempt- ing to assemble the mount. Attaching the VMP046/048 to the ceiling Step 2 Mark the ceiling or desired mounting surface in preparation of instal- lation of ceiling plate .
- Page 3 Step 6 Attach the top force arm to the extension tube using the M12 screw and washers . Thread the ¼” brake screw into the wall bracket and tighten the brake screw down to hold the M12 screw in place. Step 7 Attach the extension arms to the left...
