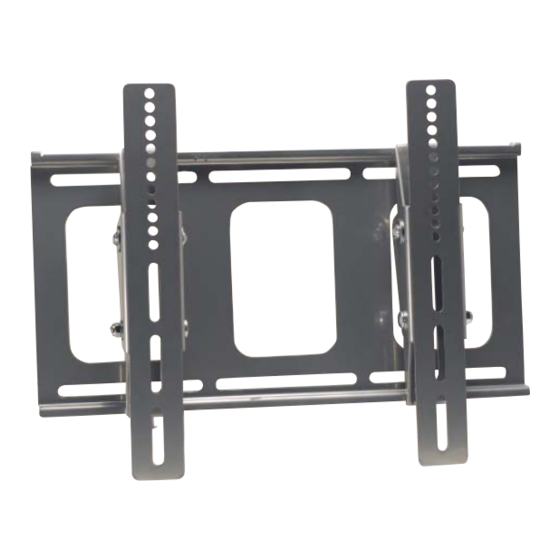

- Page 1 VIDEO MOUNT PRODUCTS Instruction Sheet For: LCD-MID-FT & LCD-MID-FTB For more information, please contact us at: 325 Log Canoe Circle, Stevensville, Maryland 21666 (T) 410.643.6390 / (F) 410.643.6615 www.videomount.com...
- Page 2 Step 1 Before starting, lay out all parts to your mount and match them to the parts list provided. Verify that you have all your parts before at- tempting to assemble the mount. Step 2 Mark the wall or desired mounting surface in preparation of installa- tion of the wall plate .
- Page 3 Step 4 Adjust the tilt tension by tightening the socket head screws with the M5 Allen Key so they are fairly tight. Note: You may have to adjust the tilt tension once the fl at screen is on the wall so do not tighten as hard as you can because it will make further adjustment on the wall much more diffi...
