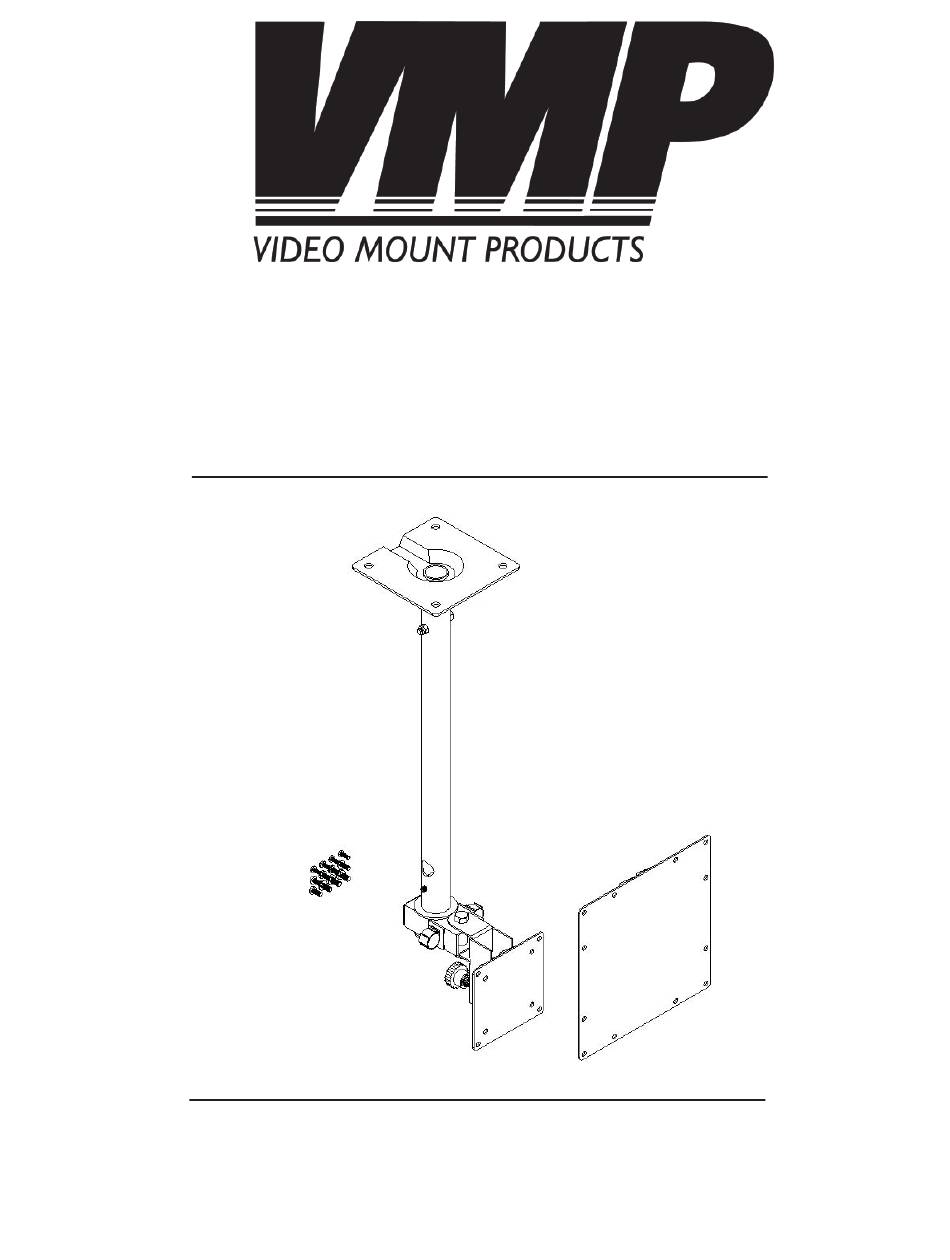

- Page 1 Instruction Sheet For: LCD-2537C & LCD-2537CB For more information, please contact us at: 345 Log Canoe Circle, Stevensville, Maryland 21666 Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615 www.videomount.com...
- Page 3 Step 1 Before starting, lay out all parts to your mount and match them to the parts list provided. Verify that you have all your parts before attempting to assemble the mount. Step 2 Determine which VESA standard plate you will be using (75mm/100mm or 200mm/100mmx200mm respectively) and at- tach the selected mounting plate to the swivel bracket...
- Page 4 Step 5 Attach the support tube to the extension tube using the ¾” screw and washers Step 6 Attach the mounting plate assembly from step 2 to your LCD monitor using the M4 or M5 screws as appropriate. Step 7 Attach the extension tube to the ceiling plate using...
