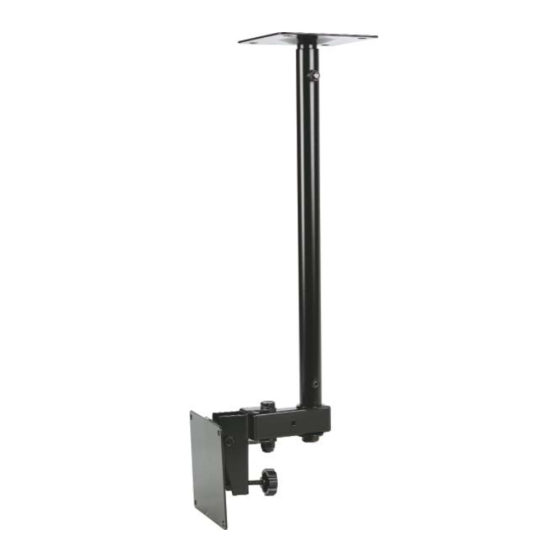

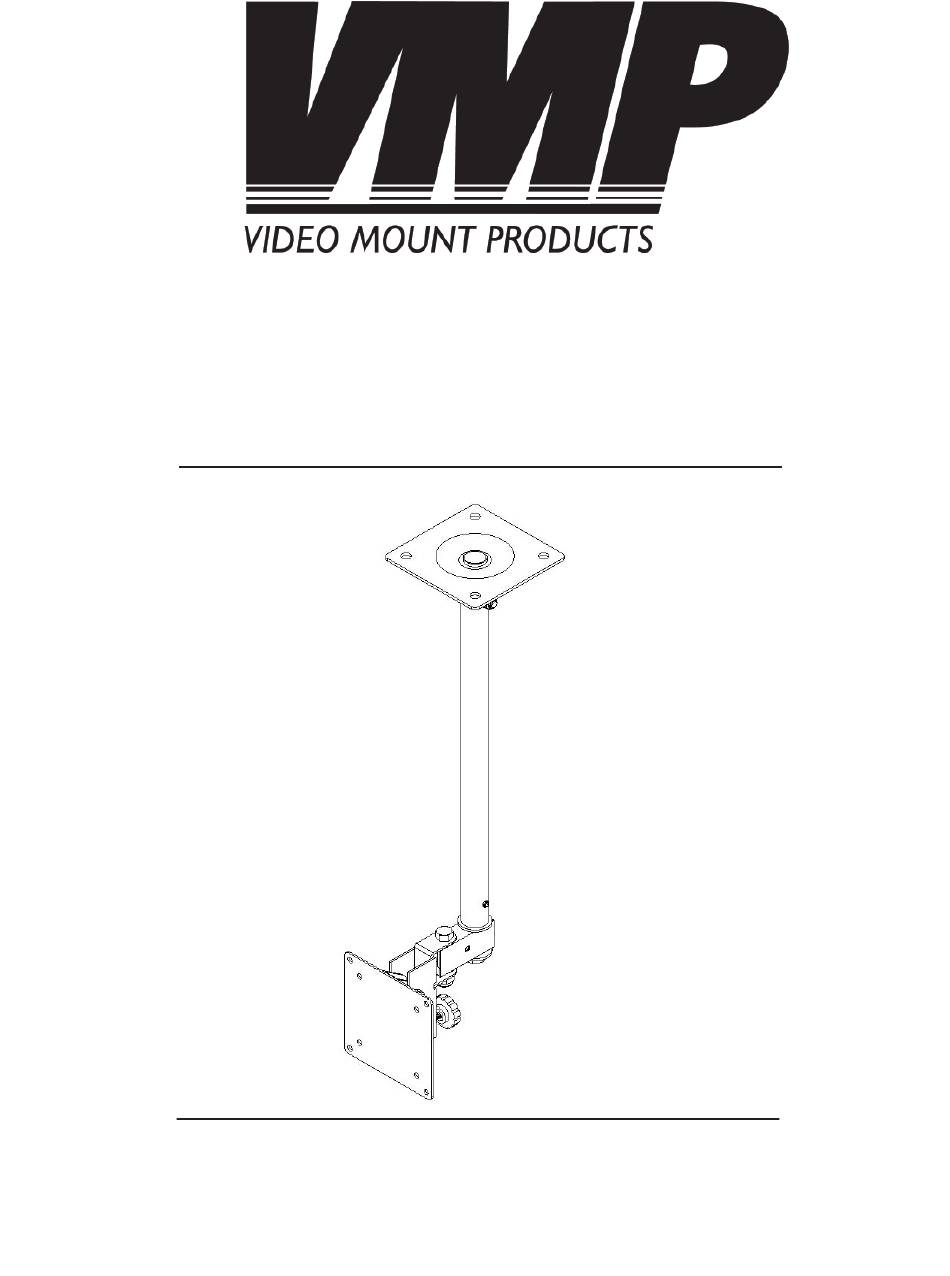

- Page 1 Instruction Sheet For: LCD-1C, LCD-1CB & LCD-1 CW For more information, please contact us at: 345 Log Canoe Circle, Stevensville, Maryland 21666 Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615 www.videomount.com...
- Page 3 Step 1 Before starting, lay out all parts to your mount and match them to the parts list provided. Verify that you have all your parts before attempting to assemble the mount. Step 2 Attach the mounting plate to the LCD using the M4 or M5 screws.
- Page 4 Step 5 Attach the support tube to the extension tube using the M12 screw and washers Step 6 Attach the extension tube to the ceiling plate using the 5/16” screw and nylon nut . Secure the M12 screw from slipping in the extension tube by tightening the ¼”...
