Summary of Contents for VMP LCD-1

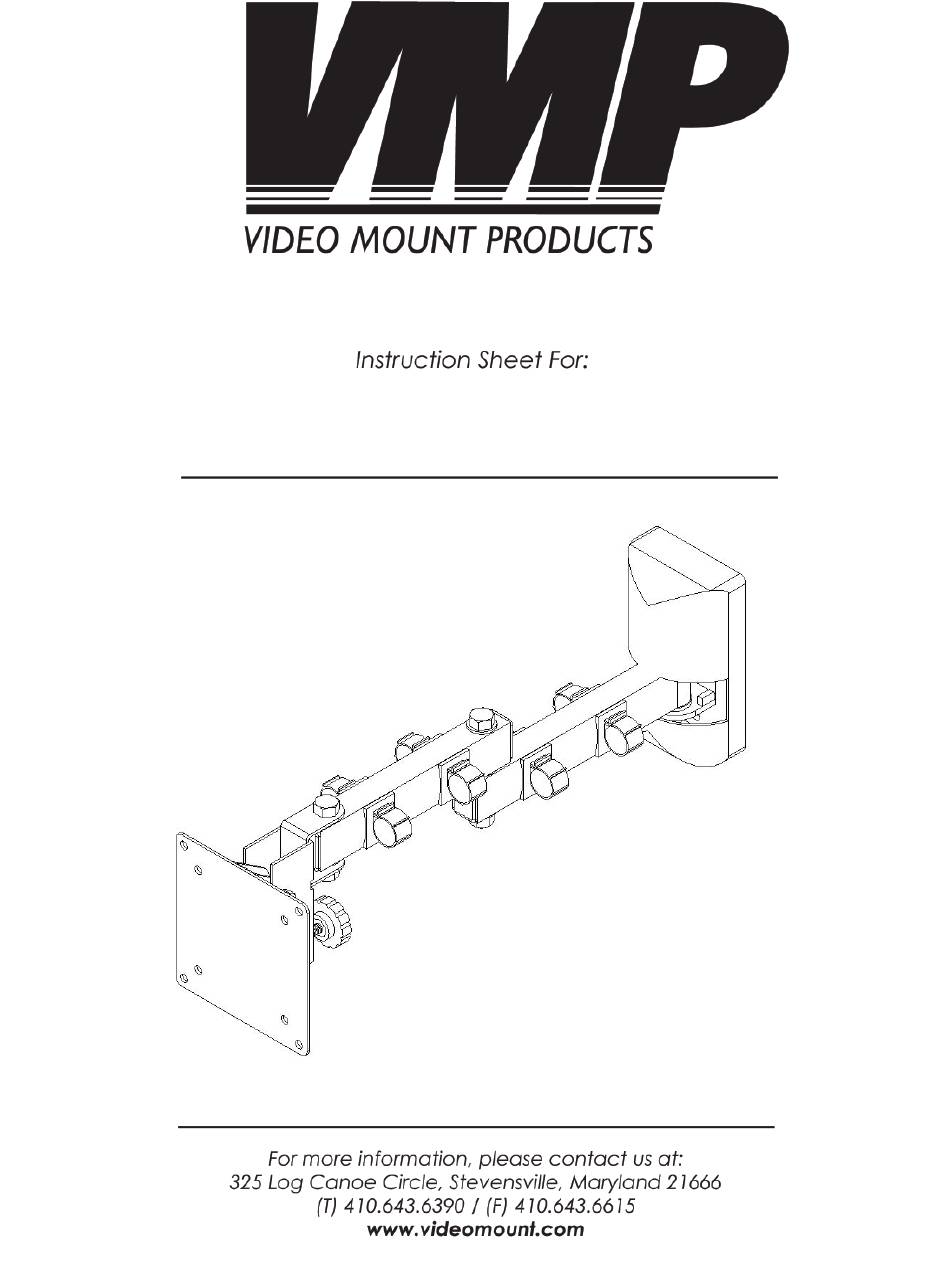

- Page 1 LCD-1 & LCD-1B...
- Page 2 Step 1 Before starting, lay out all parts to your mount and match them to the parts list provided. Verify that you have all your parts before attempting to assemble the mount. Step 2 Attach the mounting plate to your LCD monitor using the M4 or M5 screws or as appropriate.
- Page 3 Step 5 If your application calls for the single arm or near fl ush mount confi guration proceed to the next step. If your application calls for the double arm confi guration, attach the front force arm to the rear force arm using the metal pin , washers and the nylon nut...
