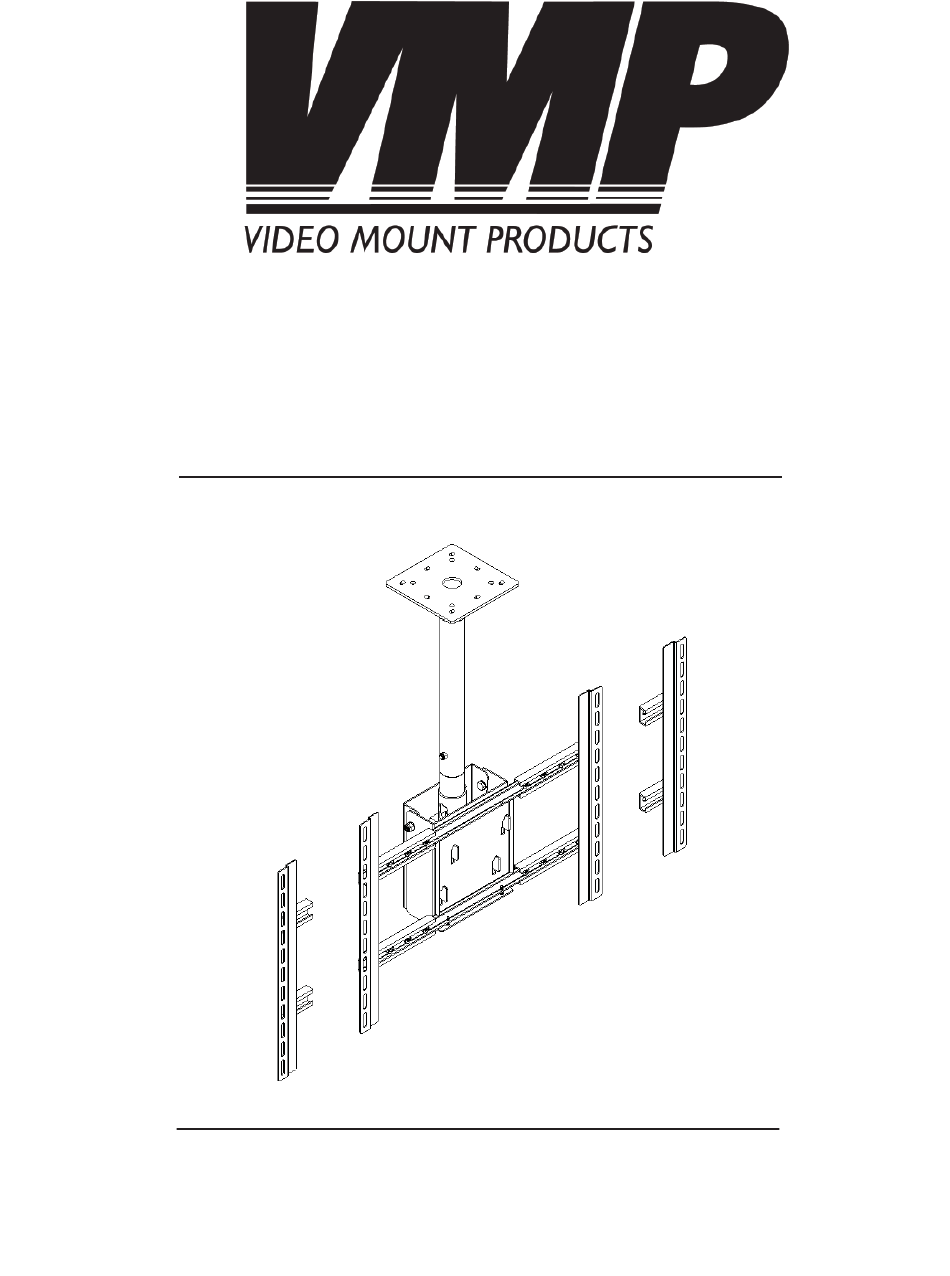

- Page 1 Instruction Sheet For: PDS-LC & PDS-LCB For more information, please contact us at: 345 Log Canoe Circle, Stevensville, Maryland 21666 Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615 www.videomount.com...
- Page 3 Step 1 Before starting lay out all parts to your mount and match them to the parts list provided. Verify that you have all your parts before attempting to assemble the mount. Step 2 Slide either extension brackets A or B ( depending on which works better for your TV) onto the mounting plate match up the slots on the extension brackets to the holes on the...
- Page 4 Step 6 Screw the outer mast into the ceiling plate as tight as possible. Then proceed to take the ¼” – 20 brake screw tight- en it down into the pipe couple on the ceiling plate using the M3 Allen key .
- Page 5 Step 9 Attach the swivel bracket to the pipe couple using the large metal washers , PVC washers and M16 nylon nut . Once the nylon nut is tight, slide the cotter pin through the small hole near the bottom of the screw coming out of the pipe couple .
