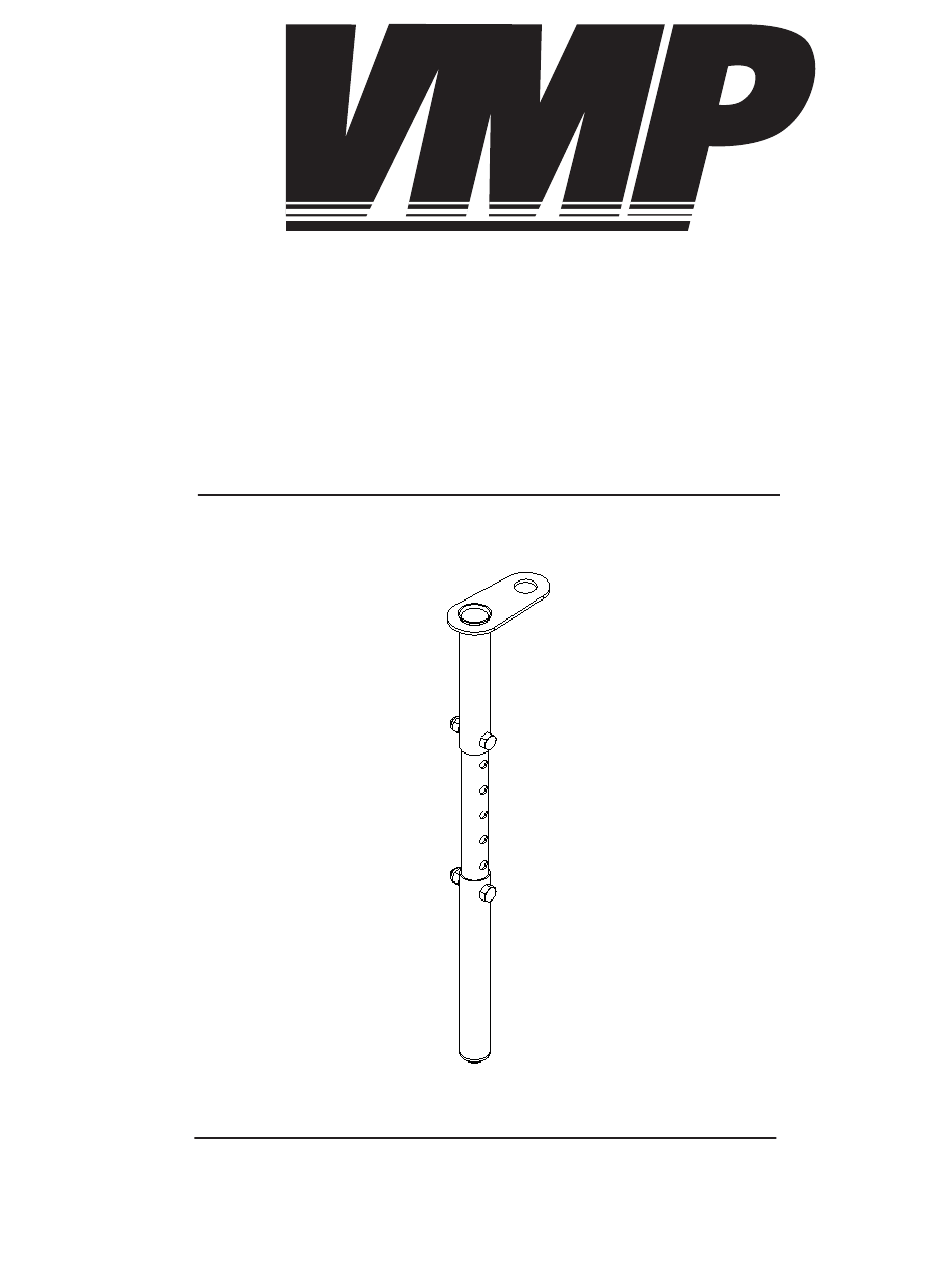

- Page 1 VIDEO MOUNT PRODUCTS Instruction Sheet For: VH-004 For more information, please contact us at: 345 Log Canoe Circle, Stevensville, Maryland 21666 Toll Free: 877.281.2169 Phone: 410.643.6390 Fax: 410.643.6615 www.videomount.com...
- Page 3 Now you must determine which mount you are trying to attach the VH-004 to. If you are trying to attach the VH-004 to the LCD-1C proceed to Step 5. If you are trying to attach the VH-004 to the LCD-2537C proceed to Step 6.
- Page 4 LCD-1C. Place the mount connector VH-004 in between the top washer LCD-1C and the support tube LCD-1C. Use the M12 screw provided with the VH-004 VH-004 and insert it through the washers LCD-1C, support tube LCD-1C and mount connector VH-004.
- Page 5 B PDM-C. Insert the ¾” screw through the washers PDM-C, swivel bracket B PDM-C, and mount connector VH-004. Screw the extension tube PDM-C onto the ¾” screw PDM-C and use the brake screw PDM-C Step 8 : Removing the adjusting to secure ¾”...
