Installation -
Typical Installation

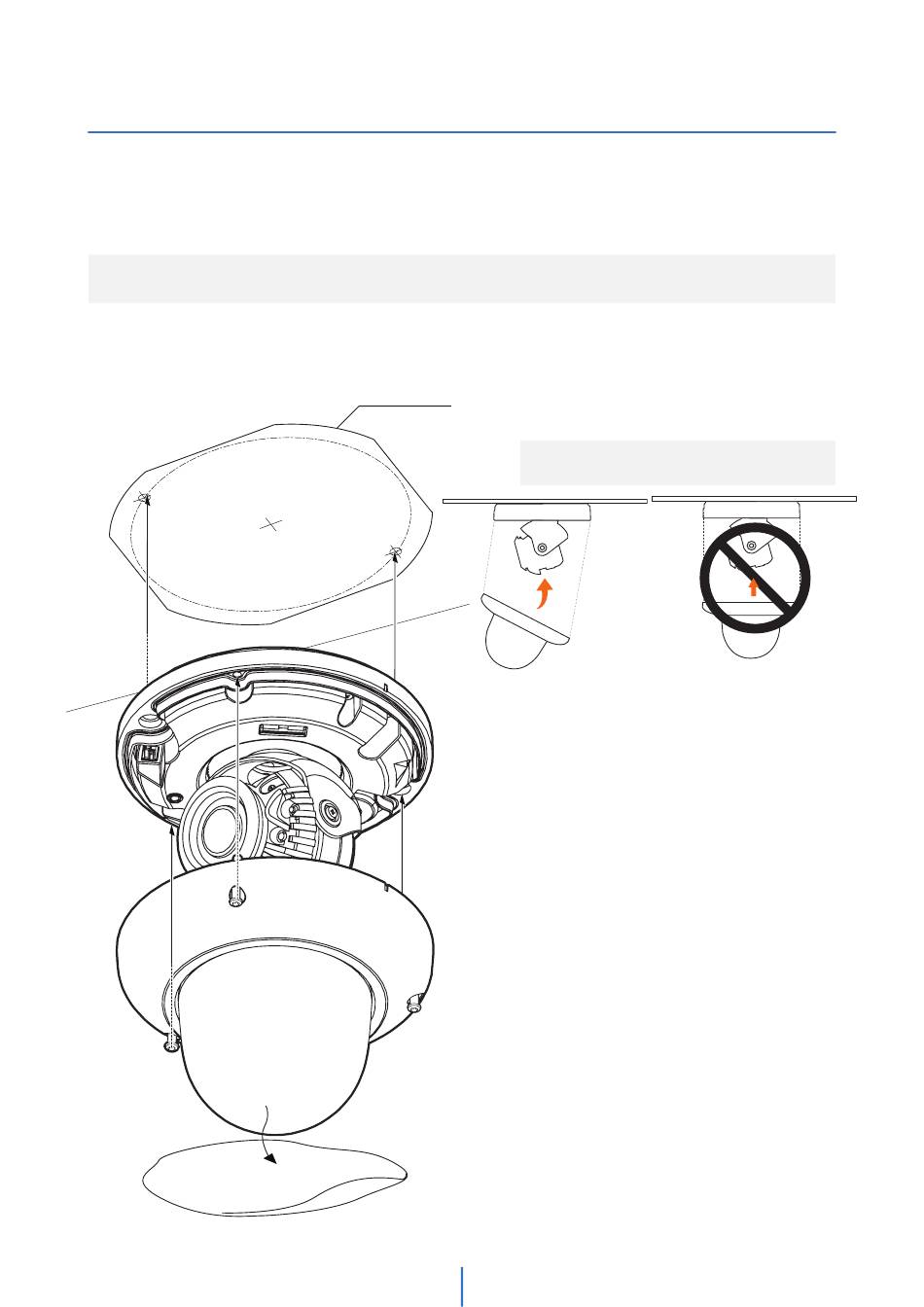

1. Using the mounting template sheet or the camera itself, mark and drill the necessary holes in the mounting
surface.
2. Attach the camera to the mounting surface using the included anchors and screws.
3. Adjust the camera's tilt and angle by loosening the tilt screw at the base of the camera module. The camera's
max tilting angle is 75°. Tighten the screw once the adjustment is complete.
NOTE:
When setting up the camera for the first time, use the CALIBRATE button on the camera's web GUI to auto
calibrate the camera's lens before operation.
4. Assemble the dome cover over the camera body. Align the dome and bottom case to match the case outline.
5. Remove the protective film from the dome. Softly wipe the dome with lens tissue or a microfiber cloth to
remove any dust or smudges left from the installation process.
Mounting template
9
NOTE: Be careful not to alter the direction of
the camera module.
