Installation -

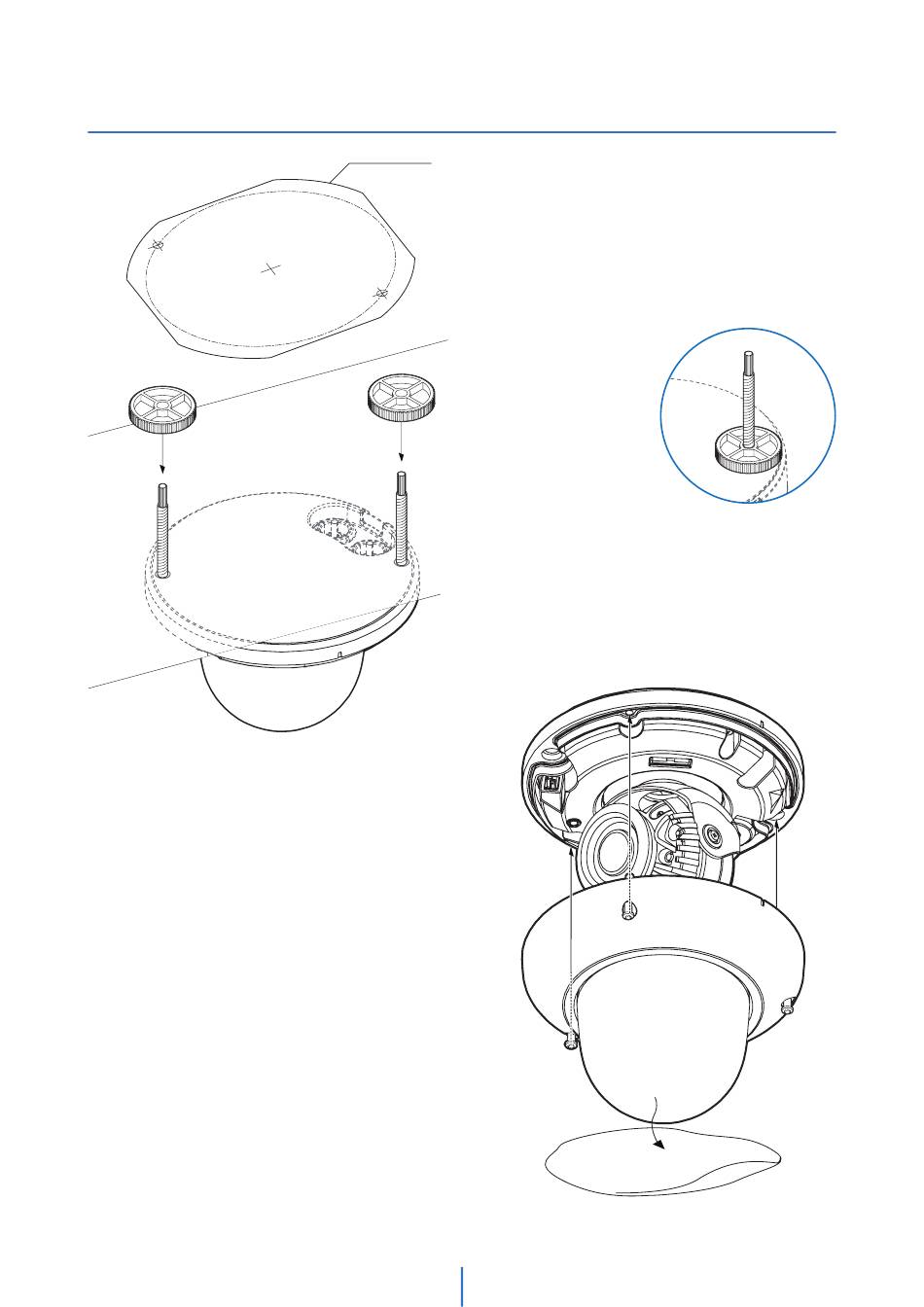

Installation Using Mounting Bolt & Nuts
1. Mark and drill the necessary holes in the wall or
ceiling using the mounting template for the nuts
and bolts installation.
2. Pass the wires through and make all necessary
connections.
3. Secure the two mounting screws to the camera's
base.
4. Mount the camera to the
mounting surface using
the two mounting nuts.
5. Rotate the locking
discs over the screws
until the camera is
held tightly from the
mounting surface.
6. Adjust the camera's lens
position to the necessary
angle. The camera's max tilting angle is 75°.
7. Assemble the dome cover over the camera body.
Be sure to assemble the dome and bottom case
to match the case outline.
8. When the installation is completed, remove the
protective film.
