Alpha-InnoTec WZSV Series Operating Manual page 7

2 Heating circuit/hot water circulation pump
3 Heating element
4 3-way changeover valve, heating circuit/
domestic hot water
5 Valve motor
6 Position of rating plate
8 Venter
9 Electrical switch cabinet
11 Module box
12 Height-adjustable foot (4x)
Rating plate
Rating plates are attached to the following places on
the unit:
at the top of the heating station
left-hand side, on the module box
The rating plate contains the following information at
the top:
Unit type, product number
Serial number, unit index
The rating plate also contains an overview of the most
important technical data.

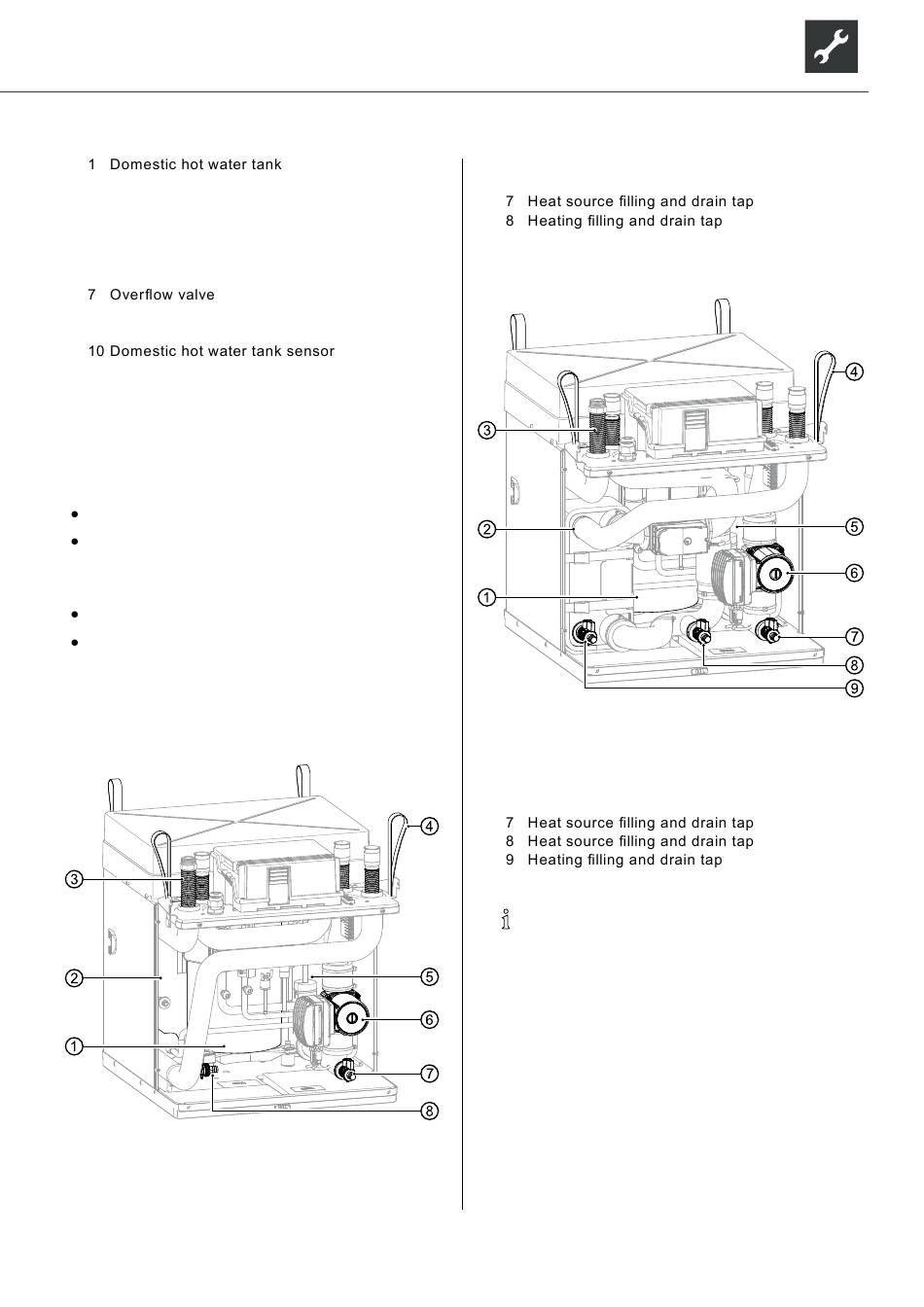

Module box – variant without cooling
1 Compressor
2 Condenser
3 Vibration isolator (4x)
4 Lifting lug (4x)
Subject to change without notice | 83056900kUK | ait-deutschland GmbH
5 Evaporator
6 Heat source circulation pump
Module box – variant with cooling
1 Compressor
2 Condenser
3 Vibration isolator (4x)
4 Lifting lug (4x)
5 Evaporator
6 Heat source circulation pump
NOTE
The hose connectors are not part of the
scope of delivery with all KFE ball valves.
