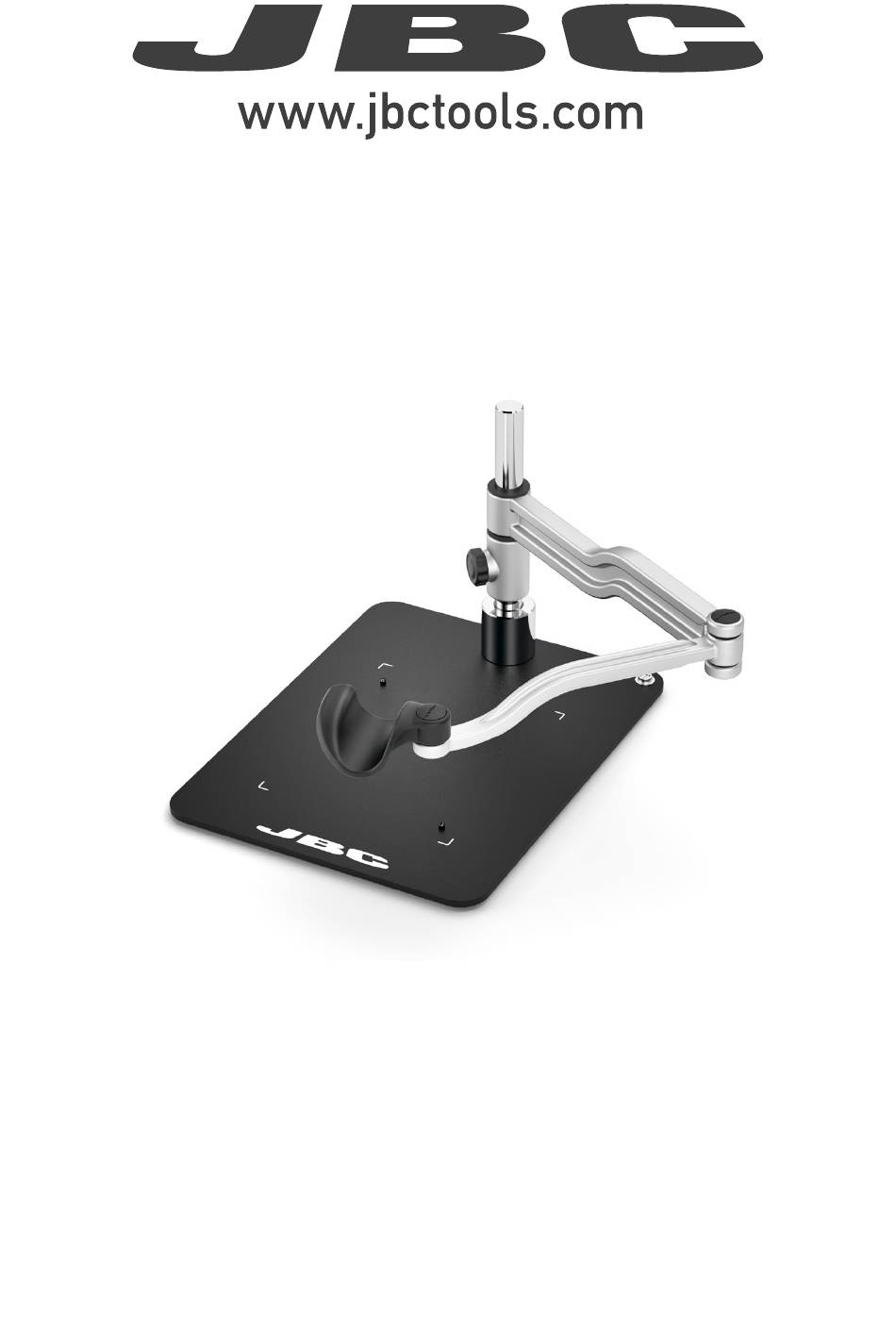

INSTRUCTION MANUAL
RHN

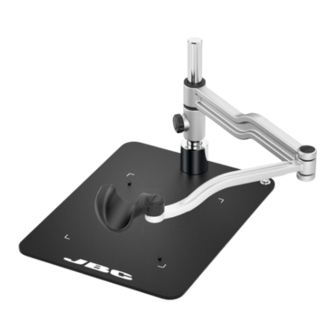

Rework Hand Support for PHN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the RHN and is the answer not in the manual?

Questions and answers

Related Manuals for jbc RHN

Summary of Contents for jbc RHN

  • Page 1 INSTRUCTION MANUAL Rework Hand Support for PHN...

  • Page 2: Packing List

    This manual corresponds to the following reference: RHN-A Packing List The following items are included: Tool Arm ......1 unit Height Adj. Knob... 1 unit Shaft ......1 unit Ref. HRR-A Ref. 0023991 Base .............. 1 unit Headless Screw ..........1 unit Ref.
  • Page 3 para manuales - color gris 200 mm Features 130 mm 130 mm Shaft 100 mm Tool Arm Height Adjustment Knob Headless Screw 80 mm Printed Corner Guides Hand Support ESD Safe Connector 60 mm Base Positioning Bolds 50 mm 40 mm Assembly Setting up the Tool Arm Fit the tool arm onto the base and tighten the...

  • Page 4: Height Adjustment

    Slide the arm to the appropriate height and secure by tightening the knob to guarantee stability. Work Position Adjustment RHN arm allows adjustment for different positions according to your work needs. The articulated arm covers all work areas. Top view Position the arm and tighten the knobs.
  • Page 5 - color gris 200 mm Positioning PHN on RHN 130 mm 130 mm The position of preheater PHN can be fixed on the RHN by means of the positioning caps. Positioning Caps 100 mm 80 mm preheater 60 mm...
  • Page 6 Accessories If a second hand support ist need choose the Left Hand Support HRL (Ref. HRL-A). HRL allows adjustment for different positions. Left Hand Support Ref. HRL-A In case of using both left and right arms, assemble them as shown in the picture, according with the letter back of the arm support, to keep the supports at the same height.

  • Page 7: Maintenance

    - color gris 200 mm Maintenance 130 mm 130 mm - Check periodically that RHN is clean, Keep the sliding especially the sliding parts and the shaft. parts clean 100 mm - Use a damp cloth when cleaning. Alcohol can only be used to clean the metal parts.

  • Page 8: Specifications

    14.57 x 8.03 x 14.57 in / 13.43 lb Complies with CE standards ESD Safe Warranty JBC’s 2 year warranty covers this equipment against all manufacturing defects, including the replacement of defective parts and labour. Warranty does not cover product wear or misuse.
