EN

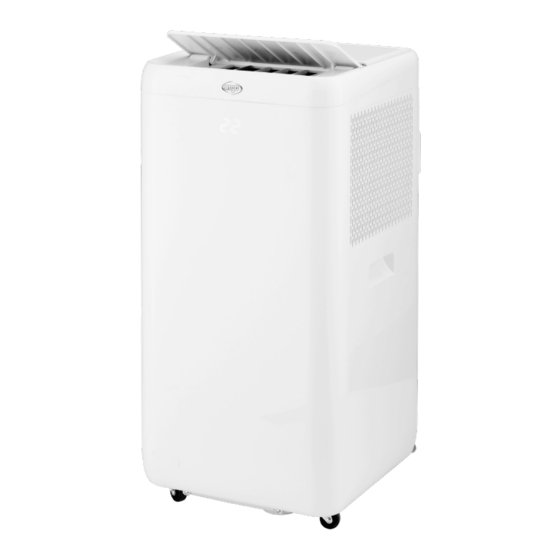

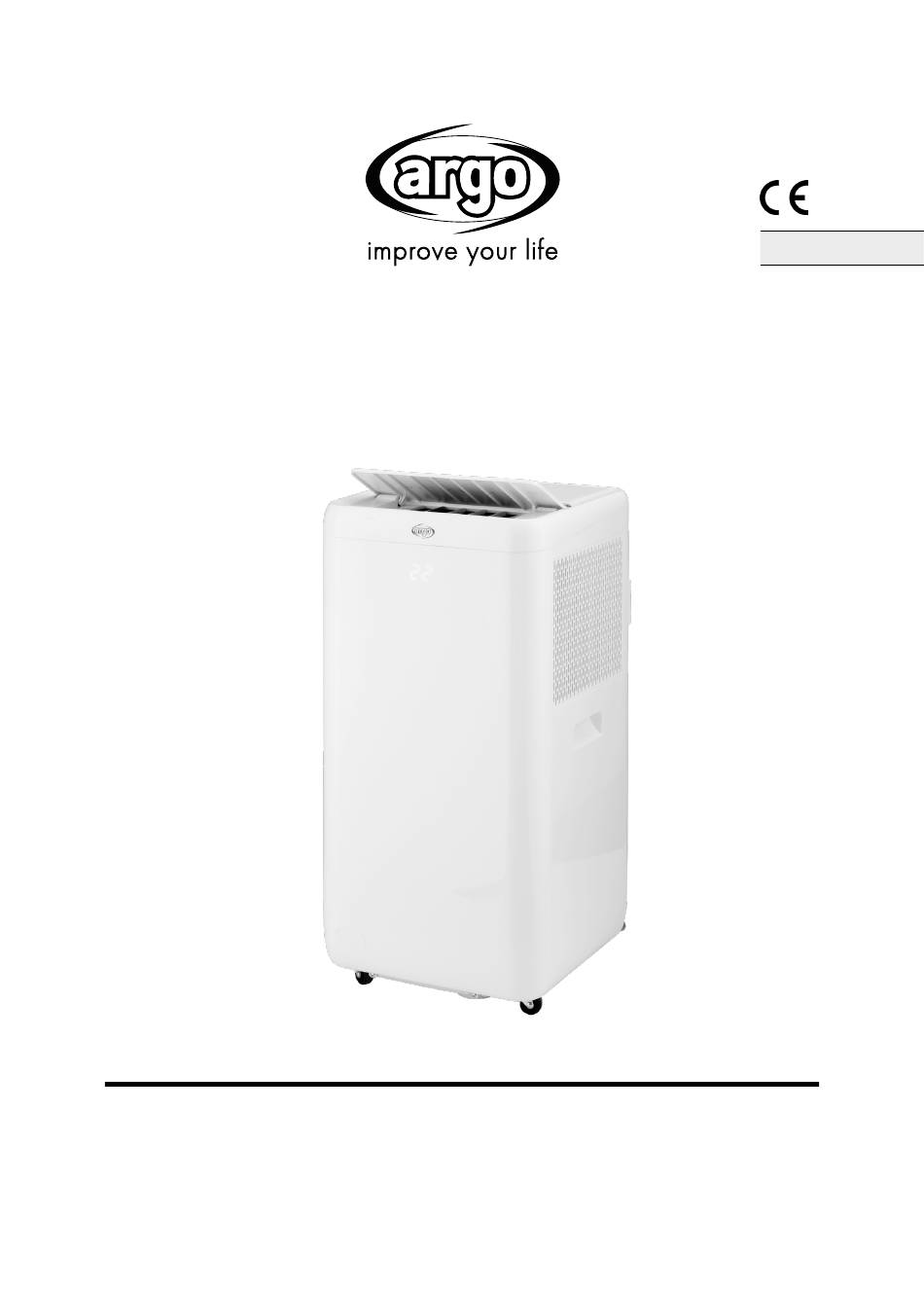

KALL P L U S
PORTABL E AI R CO ND ITION ER (L OCA L)
OPERATING INSTRUCTIONS
Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe
all the safety instructions; failure to do so may lead to accidents and/or damage. Store these instructions in
a safe place for future reference.
V 01/23
Advertisement
Table of Contents
Related Manuals for Argo KALL PLUS
Summary of Contents for Argo KALL PLUS
- Page 1 KALL P L U S PORTABL E AI R CO ND ITION ER (L OCA L) OPERATING INSTRUCTIONS Read the instructions carefully before operating the appliance or carrying out maintenance work. Observe all the safety instructions; failure to do so may lead to accidents and/or damage. Store these instructions in a safe place for future reference.
- Page 2 Appliance is filled with flammable Before installing and using the appliance, read the owner gas R290. manual. Before installing the appliance, Any repairs you need, contact the nearest read the installation manual. authorized Service Centre and strictly follow manufacturer’s Service Manual. THE REFRIGERANT R290 •...
- Page 3 GENERAL OPERATING AND SAFETY INSTRUCTIONS • This appliance is a local air conditioner designed for domestic use. • Only use this air-conditioner as described in this manual. • Ensure that the required voltage and frequency (220-240V~50Hz) match the available power source. •...
- Page 4 • Before moving or cleaning the device, ensure that it is unplugged from the socket. • Do not move the air conditioner while it is operating; first turn the appliance off, check for any condensate build-up and empty it if necessary. •...
- Page 5 In the event of a malfunction, contact the service centre directly. WARNING! • Do not expose the air conditioner to direct sunlight, as the colour of the materials may change; moreover, the appliance may overheat causing the protection mechanism to intervene and switch the appliance off. •...
-
Page 6: Description Of The Appliance
DESCRIPTION OF THE APPLIANCE 1. Control panel 7. Air inlet 2. Air outlet 8. Hole for condensate drainage (in cooling mode) 3. Remote controller signal receiver 9. Hole for condensate drainage (in dehumidification 4. Remote controller mode) 5. Side Handle 6. -
Page 7: Appliance Start-Up
APPLIANCE START-UP Open the packaging and pull out the box. Remove the product and the other elements supplied (illustrated in the box below). CR2025 Remote Battery for Fitting to apply Hose Terminal flat fitting controller remote controller on the unit to which of expulsion to be placed between connect the exhaust pipe... -
Page 8: How To Use The Appliance
Avoid tight bends or folds in the hose. If the air conditioner is not used for prolonged periods, disconnect the pipe and plug the window unit. HOW TO USE THE APPLIANCE This appliance can be used for Cooling, Heating, Dehumidification and Fan. Before using the appliance, leave it in an upright position for at least two hours. -
Page 9: Operating Modes
OPERATING MODES 1. COOLING MODE (COOL) • Press the MODE button to select Cooling. The LED on the control panel lights up. • The temperature adjustment range goes from 15 °C to 31 °C with 1 °C steps. • In this mode, every time the unit is switched off by pressing the ON/OFF button, the appliance stores the set temperature and when it is switched on again it will keep the setting. -
Page 10: Function Controls
Dehumidification Warning: when using the air conditioner in dehumidification mode, it is advisable to always arrange for continuous drainage, so as to maximise dehumidification efficiency. Connect one end of the supplied PVC pipe to the upper discharge hole and place the other end above a drain. Manual drainage Continuous drainage (Cooling and Heating) - Page 11 If liquid from the battery gets on your skin or clothing, wash the skin with water immediately. Before inserting new batteries, thoroughly clean the battery compartment with a dry paper towel, or follow the battery manufacturer’s recommendations for cleaning. Only use batteries of the same size and type. Caution: Danger of explosion if battery is replaced by a type other than that specified.
- Page 12 BY CONTROL PANEL Temperature indicators Led Timer Low and High speed 1. Power button Child Lock WiFi °C °F 2. Speed button 3. Up/Down (+/-) buttons 4. Mode button 5. Timer button 6. Swing button 7. Sleep/Child Lock button FUNCTION OF THE BUTTONS ON THE REMOTE CONTROLLER AND CONTROL PANEL 1.
- Page 13 In heating mode , when the ambient temperature is higher than the set one, the compressor stops. When the room temperature is lower than the set one, the appliance starts operating in heating mode. In fan mode , the unit runs at the set speed. In this mode it is not possible to adjust the temperature. 5.
-
Page 14: Care And Maintenance
WIFI GUIDE WI-FI CONNECTION GUIDE: 1. Search “Tuya Smart” in App Store (for iOS) or Google Play (for Android), download the “Tuya Smart” application on your smartphone. Register or log into your account on Tuya. 2. Make sure the device is in standby. Long press the mode button until you hear a beep. The Wi-Fi led will flash rapidly. - Page 15 4. Transport Transport the air conditioner in the vertical position. Should this not be possible, rest it on its right-hand side; when the appliance reaches its final destination, place it immediately in the vertical position and wait at least 4 hours before operating it in cooling mode.
- Page 16 SPECIALIST’S MANUAL Aptitude requirement for maintenance man (repairs. should be done only be specialists). • Any person who is involved with working on or breaking into a refrigerant circuit should hold a current valid certificate from an industry-accredited assessment authority, which authorises their competence to handle refrigerants safely in accordance with an industry recognised assessment specifìcation.
- Page 17 manufacturer’s technical department for assistance. The following checks shall be applied to installations using flammable refrigerants: • The actual refrigerant charge is in accordance with the room size within which the refrigerant containing parts are installed; • The ventilation machinery and outlets are operating adequately and are not obstructed; •...
- Page 18 employed, and the appropriate percentage of gas (25 % maximum) is confirmed. Leak detection fluids are suitable for use with most refrigerants but the use of detergents containing chiarine shall be avoided as the chiarine may react with the refrigerant and corrode the copper pipe-work. If a leak is suspected, all naked flames shall be removed/extinguished.
- Page 19 checked. • Labelling Equipment shall be labelled stating that it has been de-commissioned and emptied of refrigerant. The label shall be dated and signed. For appliances containing flammable refrigerants, ensure that there are labels on the equipment stating the equipment contains flammable refrigerant. •...
- Page 20 www.argoclima.com Argoclima assumes no responsibility for any errors or inaccuracies in the content of this manual and reserves the right to make to this, at any time and without notice, any changes deemed appropriate for any technical or commercial need. V 01/23...
