For your continued safety and to reduce the risk of injury or electric shock,
please follow all the safety precautions listed below.
• Read all instructions carefully before using the dishwasher and keep
them for future reference.
• Retain the manual. If you pass the dishwasher onto a third party, make
sure to include this manual.
• Keep ventilation openings in the dishwasher enclosure clear of
obstructions. The ventilation openings at the base of the dishwasher
must not be obstructed by carpet.
• Choose a location for your dishwasher away from heat sources such as
radiators or fires.
• Children should be supervised to ensure that they do not play with the
dishwasher.
• Keep mains cable out of reach from children.
• This appliance can be used by children aged from 8 years and above
and persons with reduced physical, sensory or mental capabilities or
lack of experience and knowledge if they have been given supervision
or instruction concerning use of the appliance in a safe way and
understand the hazards involved. Children shall not play with the
appliance. Cleaning and user maintenance shall not be made by
children without supervision.
• Keep children away from detergents and rinse aids. These may cause
chemical burns in the mouth, throat and eyes or asphyxiation.
• Keep children away from the dishwasher when the door is open.
• Switch off and disconnect from the mains supply before fitting or
removing tools/attachments, after use and before cleaning.
• Keep your fingers away from moving parts and fitted attachments.
• Never use a damaged machine.
• If the mains cable is damaged, it must be replaced by the manufacturer,
its service agent or a qualified technician in order to avoid a hazard.
• Keep the mains cable and plug away from water.
• Never exceed the maximum capacities.
• 2 people are required to lift this dishwasher.
• Only use the dishwasher for its intended domestic use.
• This appliance is intended for indoor household use and similar
applications such as:
– farm houses and by clients in hotels, motels and other residential
SAFETY WARNING
DISHWASHER
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Logik LID60W20
Summary of Contents for Logik LID60W20
- Page 1 SAFETY WARNING DISHWASHER For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the dishwasher and keep them for future reference. •...
- Page 2 type environments; – bed and breakfast type environments; – catering and similar non-retail applications. WARNING IT IS HAZARDOUS FOR ANYONE OTHER THAN AUTHORISED SERVICE PERSONNEL TO CARRY OUT SERVICING OF REPAIRS WHICH INVOLVE THE REMOVAL OF COVERS. TO AVOID THE RISK OF AN ELECTRICAL SHOCK DO NOT ATTEMPT REPAIRS YOURSELF.
- Page 3 dangerously bent or flattened. • Do not tamper with controls. • The appliance is to be connected to the water mains using new hose sets. • Never place heavy or wet items directly on top of the appliance. • Do not dismantle, repair or modify the machine. This may invalidate your guarantee and could lead to malfunction and cause fire or injury.
- Page 4 Visit Partmaster.co.uk today for the easiest way to buy electrical spares and accessories. With over 1 million spares and accessories available we can deliver direct to your door the very next day. Visit www.partmaster.co.uk or call 0344 800 3456 (UK customers only) Calls charged at National Rate. The symbol on the product or its packaging indicates that this product must not be disposed of with your other household waste.

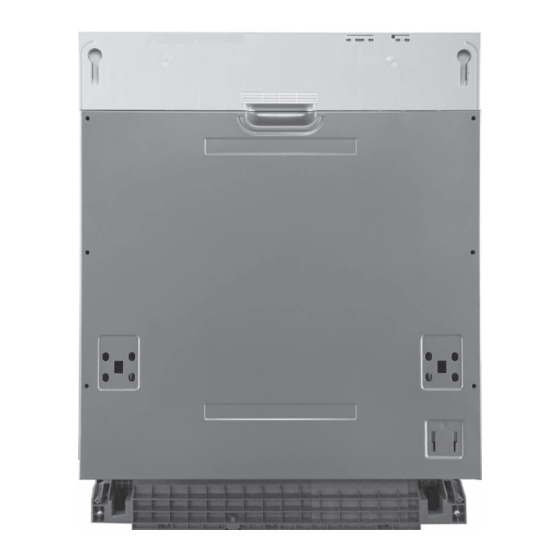

- Page 5 60cm Integrated Dishwasher Installation / Instruction Manual LID60W20...
-
Page 6: Table Of Contents
Contents Unpacking ............................4 Installation ............................5 Location ....................................5 Product Overview ..........................11 Front View ..................................11 Rear View ..................................11 Internal View..................................12 Control Panel ................................... 13 Before Operating ..........................14 To Open the Door ................................14 To Close the Door ................................14 Items Not Suitable for Use in the Dishwasher ..................... - Page 7 Internal Care ..................................30 – Filtering System ..............................30 – Spray Arms ................................31 Frost Precaution ..........................31 Moving the Dishwasher ........................31 Maintenance After a Prolonged Period of Non-Operation ............32 Hints and Tips ............................32 Technical Problems ............................... 32 General Problems ................................33 Disposal of the Dishwasher ......................34 Disposal of Packing Material ......................34 Specifications .............................35...
-
Page 8: Unpacking
Thank you for purchasing your new product. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 9: Installation
INSTALLATION Location When selecting a position for your dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, eg. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly. - Page 10 INSTALLATION 3. Do not connect the unit to the mains socket before installation. Ensure you are not installing the unit right in front of the mains socket. This is to avoid potential damage to the back of the unit. 4. The condensation strip must be fitted to the underside of the worktop above your dishwasher to protect it against any moisture.
- Page 11 INSTALLATION 6. Tape the supplied Door Template to the dishwasher door. Ensure the aesthetic door weight is a minimum of 3kg and a maximum of 7kg. Make sure the top of the template is at the top of the door. Drill the required holes following the depth and diameter shown on the Door Template.
- Page 12 INSTALLATION 10. To secure the dishwasher under the table Synthetic / Ceramic Worktop top, tighten the screws as shown. ST4x30 Hole Cover 11. Cut out a 598 mm wide plinth for toe panel. Tape the supplied toe panel mounting brackets to the toe panel as shown.
- Page 13 INSTALLATION 14. Insert the toe panel to the dishwasher. 15. Make sure your plumbing is suitable for use with the dishwasher. If in doubt contact water mains a qualified plumber. This unit MUST BE connected to COLD WATER MAINS using Y-Adaptor the new water inlet hose.
- Page 14 INSTALLATION • The waste pipe must only be connected to the foul drains and not the surface water drainage system. • Make sure you do not raise the drain hose above 10cm from the outlet on the dishwasher. Your dishwasher will not drain properly if you raise the hose by more than 10cm.
-
Page 15: Product Overview
Product Overview Front View 1. Control Panel 2. Door Handle Rear View 3. Mains Cable (Connect To Electrical Mains Outlet) 4. Drain Hose 5. Water Inlet (Connect To Supply Hose) -
Page 16: Internal View
Internal View 6. Cutlery Rack 10. Detergent Dispenser 7. Spray Arm 11. Rinse Aid Reservoir (one under the upper 12. Filtering System and one under the 13. Lower Basket lower basket) 14. Cutlery Basket 8. Upper Basket 15. Cup Rack 9. -
Page 17: Control Panel
Control Panel EC O 1. ON/OFF button To turn on/off the power supply. 2. Programme button To select a wash programme. 3. Delay button To delay the wash starting time: 3 hours, 6 hours or 9 hours. 4. Half load button To choose half load washing of 6 place setting or less. -
Page 18: Before Operating
Before Operating To Open the Door • Pull the door handle. • If the door is opened during operation, first open the door slightly to avoid water spillage. If the door is opened during operation, all functions are automatically interrupted. To Close the Door •... -
Page 19: Adding Detergent Powder Or Detergent Tablet
Adding Detergent Powder or Detergent Tablet Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent. Fill the detergent dispenser with detergent powder or tablet. See the detergent manufacturers instructions for the correct amount to use. -
Page 20: Adding Rinse Aid
Adding Rinse Aid Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. This model is designed to use liquid rinse aids only. Please follow the steps below to pour the rinse aid into the storage reservoir, and the amount will dispense automatically. -
Page 21: Adjusting The Rinse Aid Reservoir
Adjusting the Rinse Aid Reservoir To achieve a better drying performance, adjust the rinse aid level. 1. Open the door and press the On/Off button to switch on the dishwasher. 2. Within 60 seconds, press and hold the Programme button for more than 5 seconds, and then press the Delay button to enter setting mode. -
Page 22: Adding Salt
Adding Salt If the water in your area is hard, deposits will form on your dishes and utensils. This appliance contains a salt reservoir for you to reduce the hardness of the water. Please follow the steps below to pour the salt into the salt reservoir and it must be set to correspond to the water hardness level in your area. -
Page 23: Adjusting Salt Consumption
Adjusting Salt Consumption Salt consumption must be adjusted to correspond to the water hardness level in your area. If you don’t know how hard the water in your home is, please ask the company that supplies water in your area. It is recommended that adjustments should be made in accordance with the following chart. - Page 24 EC O EC O EC O EC O EC O 4. After adjusting the water hardness level, press the On/Off button to save the setting.
-
Page 25: Loading The Dishwasher
Loading the Dishwasher Before Loading the Dishwasher In general, please observe the following notes before loading your cutlery and crockery into the basket. • Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary. • Dishes and cutlery must not lie inside one another, or cover each other. •... -
Page 26: Upper Basket
Upper Basket Please use the upper basket for small and lightweight items such as cups, saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the upper basket. Long items such as soup ladles, mixing spoons and long knives should be placed lying down across the front of the upper basket. -
Page 27: Lower Basket
Lower Basket We recommend that large items and the most difficult to clean items are placed in the lower basket, such as plates, serving platters, saucepans, serving bowls, pots, pans, lids etc. We recommend placing serving dishes and lids at the side of the basket to avoid blocking the rotation of the spray arms. -
Page 28: Loading The Upper And Lower Basket For 13 Place Settings (According To En 60436)
Number Item Cups Saucers Glasses Small serving bowl Medium serving bowl Large serving bowl Dessert plates Dinner plates Soup plates Oval platter Cutlery basket Loading the Upper and Lower Basket for 13 Place Settings (according to EN 60436) For optimum loading of crockery in the upper and lower basket, please refer to the below table and image. -
Page 29: Cutlery Rack And Basket (According To En 50242 And En 60436)
Cutlery Rack and Basket (according to EN 50242 and EN 60436) To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery rack and basket. Please refer to the table below for the optimum placement of cutlery. Cutlery rack: Cutlery basket: Number... -
Page 30: Operation
Operation Starting a Wash Cycle 1. Ensure the unit is connected to the mains power and the water supply is fully opened (water pressure between 0.04MPa and 1.00MPa). 2. Open the door. Pull out the lower and upper baskets, load the dishes and push the baskets back. -
Page 31: Delay Start
Delay Start The starting time of a washing programme can be delayed and adjusted. Please follow the steps below. 1. Open the dishwasher door and load your soiled dishes and crockery. 2. Press the On/Off button to turn on the dishwasher. 3. -
Page 32: Wash Cycle Table (According To En 50242)
Wash Cycle Table (according to EN 50242) Detergent Cycle Running Energy Water Rinse Amount Time Consumption Consumption Programme Process Selection (Pre-wash/ Information (min.) (kWh) Main wash) Intensive • For heaviest soiled • Pre-wash • Pre-wash 1.621 17.8 crockery, and (50°C) (5g) normally soiled pots, •... -
Page 33: Wash Cycle Table (According To En 60436)
Wash Cycle Table (according to EN 60436) Detergent Cycle Running Energy Water Rinse Amount Time Consumption Consumption Programme Process Selection (Pre-wash/ Information (min.) (kWh) Main wash) Intensive • For heaviest soiled • Pre-wash • Pre-wash 1.621 17.8 crockery, and (50°C) (4g) normally soiled pots, •... -
Page 34: Cleaning After Use
Cleaning After Use External Care The Door and the Door Seal • Clean the door seals regularly with a soft damp cloth to remove food deposits. • When the dishwasher is being loaded, food and drink residues may drip onto the sides of the dishwasher door. -
Page 35: Spray Arms
Spray Arms Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly. 1. Ensure the dishwasher is switched off. 2. Check whether or not the holes for the upper and lower spray arms are clogged. -
Page 36: Maintenance After A Prolonged Period Of Non-Operation
Maintenance After a Prolonged Period of Non-Operation If you are not going to use the unit for a prolonged period of time, you are advised to: 1. Disconnect the dishwasher from the mains. 2. Disconnect the dishwasher from the water inlet and drain. Use a suitable receptacle to catch any residual water in the pipes. -
Page 37: General Problems
Water tap is not turned on. Turn on the water tap. Low water pressure Turn on the water tap and ensure Rapid programme indicator (<0.04 MPa) it is in full position. blinking rapidly (blink 5 Flow meter is broken. times faster than normal operation blinking) The wire terminals which connect the flow meter are... -
Page 38: Disposal Of The Dishwasher
The wash temperature of the Select a programme with a higher wash selected programme was too low. temperature. The bleaching effect of the Tea or lipstick stains have not been Change your detergent. detergent used is too low. completely removed. Forgot to pre-rinse or remove Pre-rinse or remove the stains with a the stains with a napkin prior to... -
Page 39: Specifications
Specifications Rated Voltage and Frequency 220-240 V~50Hz Rated Power Input 1760-2100 W Inlet Water Pressure 1.0 MPa (maximum) – 0.04 MPa (minimum) Degree of protection against ingress of IPX1 water Approx. 815mm (H) x 598mm (W) x 550mm (D) Dimension (door closed) Features and specifications are subject to change without prior notice. - Page 40 IB-LID60W20-210603V2...
- Page 41 16176000A51767 ST4X30 5~7 kg 560.4 (Door) 589±1 mm...
Need help?
Do you have a question about the LID60W20 and is the answer not in the manual?
Questions and answers
Glass display icon is flashing & machine is beeping and pumping out, what is the issue? Please
If the glass programme indicator is flashing rapidly (blinking five times faster than normal operation) and the Logik LID60W20 machine is beeping and pumping out, it indicates a water leakage issue. Possible causes include:
- A leaking tank
- A leaking hose
- A broken float switch or a faulty PCB
The recommended action is to call a qualified technician for further inspection and repair.
This answer is automatically generated
Our dishwasher will not start. The lights come on for the particular program but it will not start. We have tried holding each button for 10 seconds and still no joy.
The Logik LID60W20 dishwasher may not start despite the program lights being on for the following reasons:
1. The door is not properly closed: Ensure the door is firmly closed. A click sound should be heard when it is closed correctly.
2. The unit is not switched on: Press the On/Off button and select a program.
3. The dishwasher is not connected to the mains socket: Verify that the mains plug is properly connected to the socket.
Check and address these issues to resolve the problem.
