Summary of Contents for Logik LDW45S12

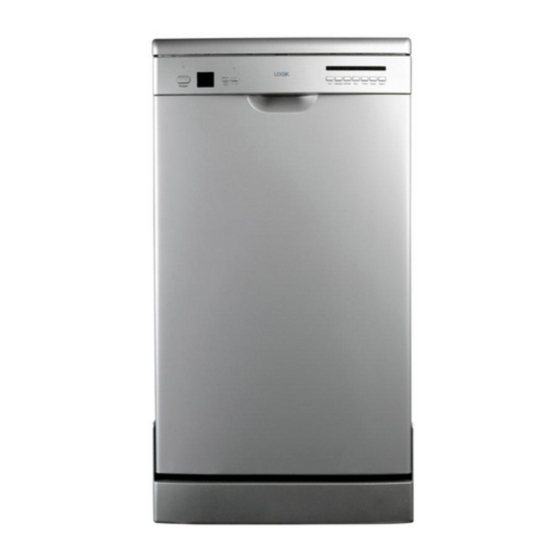

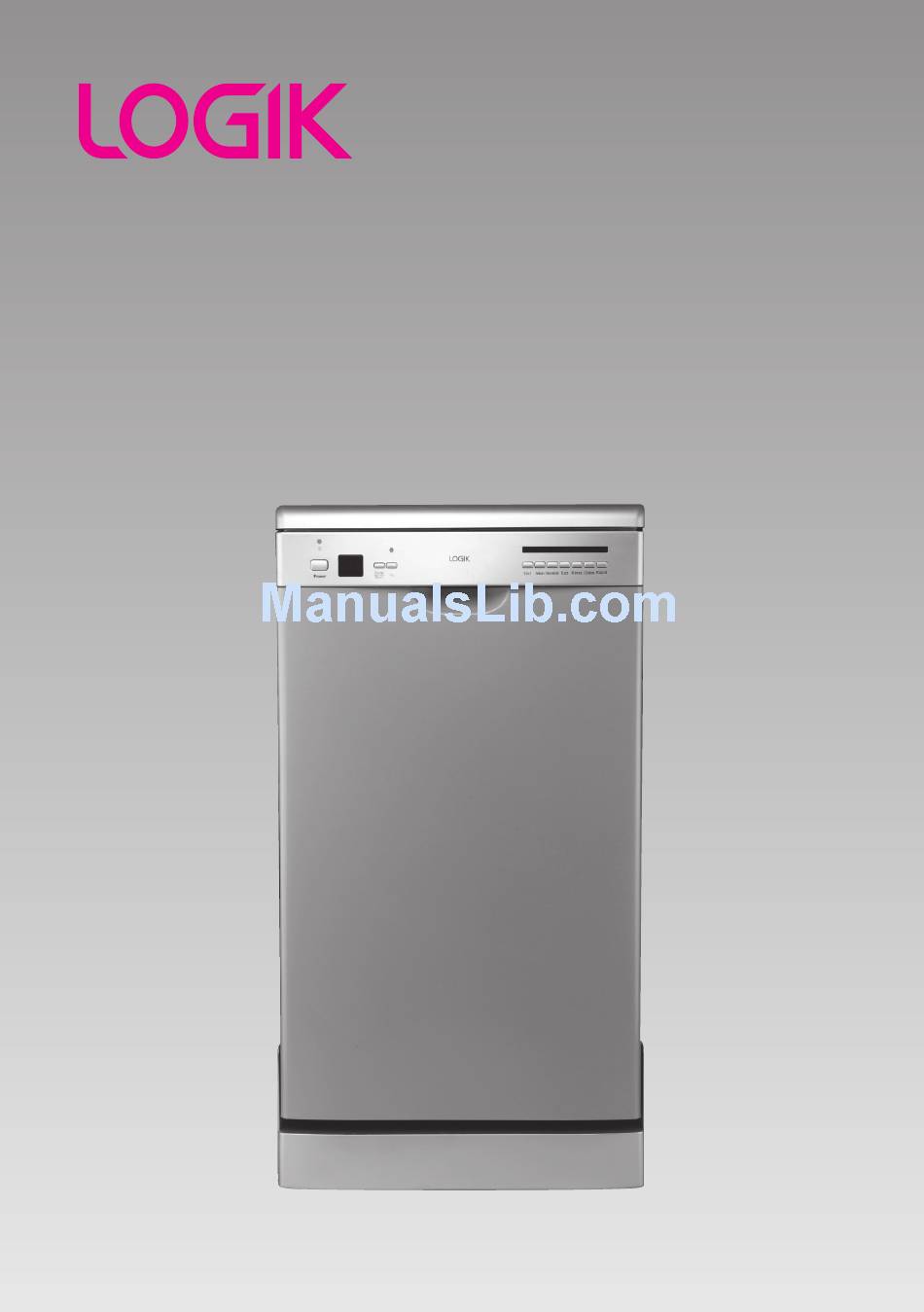

- Page 1 Slimline Dishwasher Installation / Instruction Manual LDW45S12...
-
Page 3: Table Of Contents
Contents Unpacking ............................. 5 Installation ............................ 6 Location ..................................6 Product Overview ........................10 Front View ................................10 Rear View .................................. 10 Upper Basket ................................11 Lower Basket ................................11 Internal View................................11 Control Panel ................................12 Wash Cycle Table ......................... 13 Before Operating ........................ - Page 4 Frost Precaution ......................... 26 Moving the Dishwasher ......................26 Maintenance After a Prolonged Period of Non-Operation ............. 26 Hints and Tips ..........................27 Fault Code ................................27 Technical Problems ............................... 27 Disposal of the Dishwasher ....................... 29 Disposal of Packing Material ..................... 29 Specifications ..........................
-
Page 5: Unpacking
Thank you for purchasing your new Logik Slimline Dishwasher. These operating instructions will help you use it properly and safely. We recommend that you spend some time reading this installation/instruction manual in order that you fully understand all the operational features it offers. -
Page 6: Installation
Installation INSTALLATION Location When selecting a position for your slimline dishwasher you should make sure the installation surface is flat and firm, and the room is well ventilated. Avoid locating your dishwasher near a heat source, eg. cooker, boiler or radiator. Extreme cold ambient temperatures may also cause the appliance not to perform properly. - Page 7 INSTALLATION 3. If required, the worktop of the dishwasher can be removed. The height without the worktop is 820 mm, the minimum dimensions required to accommodate the dishwasher within fitted kitchen furniture units. Do not connect the unit to the mains socket Glass Rapid Rinse...
- Page 8 INSTALLATION 6. Position the dishwasher next to a water tap and a drain. Ensure the water inlet and drain hoses are not kinked or squashed. The unit must not stand on the mains cable. Rinse Glass Rapid Normal 3in1 Intensive Delay 1/2 Load Start...
- Page 9 INSTALLATION • You may use the U-shaped drain hose holder to secure your drain hose and to avoid bending it. U-shaped drain hose holder water drain hose • Secure the water drain hose to the waste pipe to avoid it coming off during the washing process.
-
Page 10: Product Overview
Product Overview Front View Power Delay Start 1/2 Load 3in1 Intensive Normal Rinse Glass Rapid 1. Control Panel 2. Door Handle Rear View 3. Drain Hose 4. Water Inlet (Connect To Supply Hose) 5. Mains Cable (Connect To Electrical Mains Outlet) -
Page 11: Upper Basket
Upper Basket Lower Basket Internal View 15 16 6. Upper Basket 10. Cup Rack 14. Salt Reservoir 7. Salt Reservoir 11. Spray Arm 15. Spray Arm 8. Lower Basket 12. Filter 16. Filtering System 9. Detergent Dispenser 13. Rinse Aid Reservoir * All images are for reference only;... -
Page 12: Control Panel
Control Panel Delay 3in1 Intensive Normal 1 hour Glass Rapid Power 1/2 Load Start 5. Half Load Washing Button 1. ON / OFF Button • Press this button to select the half load • To turn the dishwasher on and off. washing cycle. -
Page 13: Wash Cycle Table
Wash Cycle Table Detergent Running Energy Water Cycle Selection Amount Rinse Programme Process Time Consumption Consumption Information (Pre-wash/ (min.) (Kwh) Main wash) 3 In 1 • Pots, utensils and • Pre-wash • 3 in 1 1.08 13.5 cutlery. (50°C) • Normally soiled •... -
Page 14: Before Operating
Before Operating To Open the Door • Pull the door handle. • If the door is opened during operation all functions are automatically interrupted. To Close the Door • After loading the dishes, push the baskets fully into the dishwasher. •... -
Page 15: Adding Detergent Or Detergent Tablet
Adding Detergent or Detergent Tablet Only use detergents specifically designed for use in dishwashers. To be more environmentally friendly, please use no more than the correct amount of detergent. Please follow the steps below to fill the detergent dispenser. Bleach and Irritant Countertop detergent •... -
Page 16: Adding Rinse Aid
Adding Rinse Aid * All images are for reference only; please refer to your individual unit for actual item. Rinse aid helps to ensure water does not cling and leave marks on crockery during the drying phase and helps crockery dry faster after it has been washed. Only pour rinse aid that is for domestic dishwashers into the reservoir. -
Page 17: Adding Salt
Adding Salt If the water in your area is hard, deposits will form on your dishes and utensils. This appliance contains a salt reservoir for you to reduce the hardness of the water. Please follow the steps below to pour the salt into the salt reservoir and it must be set to correspond to the water hardness level in your area. -
Page 18: Adjusting Salt Consumption
Adjusting Salt Consumption Salt consumption must be adjusted to correspond to the water hardness level in your area. If you don’t know how hard the water in your home is, please ask the company that supplies water in your area. It is recommended that adjustments should be made in accordance with the following chart. -
Page 19: Loading The Dishwasher
Loading the Dishwasher * All images are for reference only; please refer to your individual unit for actual item. Before Loading the Dishwasher Please observe the following notes before loading your cutlery and crockery into the basket. • Remove lipstick stains and any food residues from crockery and dishes. Rinse if necessary. •... -
Page 20: Upper Basket
For safety reasons, do not operate the dishwasher without the upper and lower baskets in place. Upper Basket Please use the upper basket for small and lightweight items such as cups, saucers, glasses, dessert bowls, etc. Shallow pans or casserole dishes can also be placed in the upper basket. -
Page 21: Hinged Cup Rack
Hinged Cup Rack To make room for taller items in the upper basket, raise the cup rack upwards. You can then lean the tall glasses against it. You can also remove it when it is not required for use. To prevent water dripping from the upper basket onto the dishes in the lower basket, we recommend that you empty the lower basket first and then the upper basket. -
Page 22: Loading The Lower Basket
Loading the Lower Basket For the optimum loading of the lower basket, please refer to the table below. Number Item Oval platter Dinner plates Soup plates Dessert dishes Cutlery basket Cutlery Basket Loading the Cutlery Basket To make unloading much easier, cutlery should be grouped in zones and placed in the cutlery basket. -
Page 23: Starting A Wash Cycle
Starting a Wash Cycle Please follow the steps below to start a wash cycle. 1. Ensure the unit is connected to the mains power and the water supply is on (water pressure between 0.04MPa and 1.00MPa). 2. Open the door. Pull out the lower and upper baskets, load the dishes and push the baskets back. It is recommended that the lower basket is loaded first, and then the upper basket. -
Page 24: Switching Off The Unit
Switching Off the Unit To save energy, remember to switch the dishwasher off using the ON/OFF button. The dishwasher will continue to use electricity until it is switched off with the ON/OFF button. If the dishwasher is not going to be used for a long period of time, e.g. whilst on holiday, disconnect the unit from the mains supply. -
Page 25: Cleaning After Use
Cleaning After Use * All images are for reference only; please refer to your individual unit for actual item. External Care The Door and the Door Seal 1. Clean the door seals regularly with a soft damp cloth to remove food deposits. 2. -
Page 26: Spray Arms
Spray Arms Particles of food can get stuck in the spray arm jets and bearings. The spray arms should therefore be checked and cleaned regularly. • Use a pointed object, eg. a cocktail stick, to loosen food particles in the spray arms’ jets. Do not attempt to remove the spray arms. -
Page 27: Hints And Tips
Hints and Tips Repairs should only be carried out by a qualified technician in strict accordance with current local and national safety regulations. Unauthorised or incorrect repairs could cause personal injury or damage to the unit. Fault Code Codes Possible Causes Remedy Water tap is not turned on. - Page 28 General Problems Problem Possible Causes Remedy Detergent residue is left in the The detergent dispenser was Make sure the dispenser is dry before dispenser at the end of the still damp when detergent was adding detergent. programme. added. The detergent dispenser lid Clogged detergent residue is Clean the catch.
-
Page 29: Disposal Of The Dishwasher
Disposal of the Dishwasher • When disposing your old dishwasher, first make it unusable. Disconnect the hoses and unplug the mains cable. Cut off the mains cable from the dishwasher. Make the door lock inoperative, so that children cannot accidentally shut themselves in. Make appropriate arrangements for the disposal of the dishwasher. -
Page 30: Specifications
Specifications Model LDW45S12 Dimensions 450 mm (W) x 580 mm (D) x 850 mm (H) Capacity 9 Place Settings Water Pressure Required 0.04 - 1.00MPa Power Consumption 1930W Rated Voltage 230V~50Hz Off Mode Power Consumption Left-on Mode Power Consumption 0.75W... -
Page 31: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the dishwasher and keep them for future reference. • Retain the manual. - Page 32 • The door should not be left in the open position since this could present a tripping hazard. • For energy saving, always remember to switch the dishwasher off when you have finished using it. The dishwasher should not be left unattended when in use. •...
- Page 33 EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd. • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: LDW45S12-003)
