Summary of Contents for ITV ICE MAKERS IQ 50C

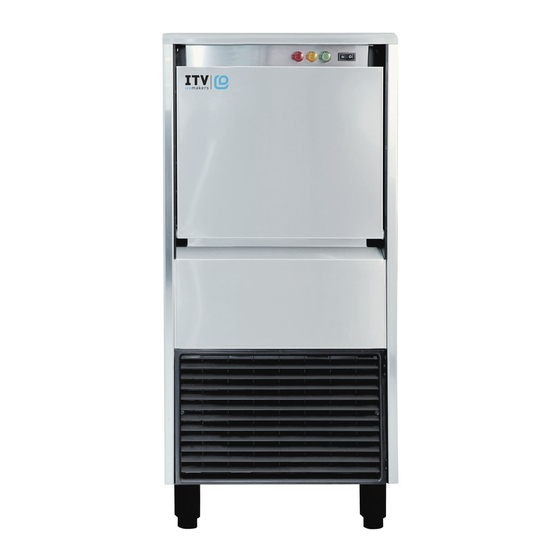

- Page 1 TECHNICAL MANUAL IQ R290 ELECTRONICS RANGE MODELS: IQ 180C READ THIS MANUAL CAREFULLY, ESPECIALLY INSTALLATION MAINTENANCE SECTIONS. THE INSTALLATION OF THIS APPLIANCE MUST BE CARRIED OUT BY THE TECHNICAL ASSISTANCE SERVICE.
-
Page 2: Table Of Contents
INDEX INTRODUCTION........................... 4 1.1. WARNINGS ..........................4 1.2. MACHINE RECEPTION ....................... 6 INSTALLATION ............................ 8 2.1. ICE MACHINE LOCATION ....................... 8 2.2. ICE MACHINE LEVELING ......................... 9 2.4. MINIMUM DISTANCE TO OBSTACLES .................... 9 2.5. WATER SUPPLY CONNECTION ....................10 2.6. - Page 3 5.5 THREE-PHASE ELECTRONIC BOARD ................... 26 5.6 ELECTRONIC BOARD FOR DRAINAGE BY PUMP................. 27 5.7 MODBUS ............................28 6. OPERATION SEQUENCE ........................29 7- ALARMS ..............................30 7.1 High pressure safety switch ......................30 7.2 Geared motor alarms ........................30 7.2.1 Temperature shutdown of the geared motor ................
-
Page 4: Introduction
INTRODUCTION This manual has been created to provide the installer with information to carry out a correct installation and for the effective maintenance of the machine. Furthermore, the user will find in the document a section referring to the cause of possible incidents, as well as complete information on their resolution. - Page 5 It is mandatory to connect the equipment to ground to avoid possible electric shocks to people or damage to the equipment. The machine must be grounded in accordance with local and/or national regulations. The manufacturer disclaims any responsibility in the event of damage occurring due to the lack of ground installation.
-
Page 6: Machine Reception
In case of refrigerant leak: • Do not generate a flame in the surroundings of the appliance. • Do not turn on/off switches or connect/disconnect plugs in the area of the appliance. • Do not use a direct flame. • Immediately ventilate the area of the appliance by opening doors and windows. - Page 7 Check that the installation kit inside the machine is complete and includes: • Shovel • ¾ inch water inlet hose • 22mm drain hose • Filter gasket • User manual • Warranty CAUTION: All packaging elements (plastic bags, cardboard boxes and wooden pallets) must be kept out of the reach of children, as they are a source of potential danger.
-
Page 8: Installation
INSTALLATION 2.1. ICE MACHINE LOCATION This ice maker is not designed to be used outdoors. The ice maker should not be located next to ovens, grills, or other equipment that produces a lot of heat. Compact IQ machines are designed to operate at ambient temperatures between 10ºC and 43ºC (50ºF and 109ºF) and inlet water temperatures between 5ºC and 35ºC (41ºF and 95ºF). -
Page 9: Ice Machine Leveling
2.2. ICE MACHINE LEVELING Use a level on the top of the ice maker to ensure the equipment is perfectly level. Screw the leveling feet into the bottom of the ice maker as far as they will go. Place the machine in its final position. -
Page 10: Water Supply Connection
Connection diagram: The location should allow sufficient clearance for water drainage and electrical connections at the rear of the ice machine. 2.5. WATER SUPPLY CONNECTION The quality of the water supplied to the ice maker will influence the time between cleanings and ultimately the life of the product (mainly on water-cooled units). -
Page 11: Drain Connection
2.6. DRAIN CONNECTION 2.6.1. GRAVITY DRAINAGE The drain must be located lower than the level of the machine, at least 150mm. It is advisable that the drain hose be 30mm in inner diameter and with a minimum slope of 3cm/meter. 2.6.2. -
Page 12: Electric Connection
2.7. ELECTRIC CONNECTION • It is mandatory to connect the equipment to ground. To avoid possible electric shock to persons or damage to the equipment, the machine must be grounded in accordance with local and/or national regulations, as applicable. • The manufacturer disclaims any responsibility in the event that damage occurs due to the lack of ground installation. -
Page 13: Prior Control And Start-Up
PRIOR CONTROL AND START-UP 3.1. PRIOR CHECK Is the machine level? Do the voltage and frequency match those on the nameplate? Are the drains connected and working? Are the ambient temperature and water temperature maintained in the following range? ATMOSPHERE WATER MAXIMUM 43ºC/109.4ºF... -
Page 14: Start Up
3.3. START UP Once installation instructions have been followed (ventilation, site conditions, temperatures, water quality, etc.), proceed as follows: 1. Open the water inlet. Check for leaks. 2. Connect the machine to the power source. Turn on the power switch •... -
Page 15: Control Display
CONTROL DISPLAY The outer panel is located on the front of the machine in the upper left corner and has 5 buttons: Icon Description Color Symbol ON/OFF ON/OFF button + two-colour LED. Blue PE 1 • Push button to turn the machine on: the blue LED indicates that the machine is ON (it can be on timer, producing ice or stopped). -
Page 16: Descripción De Componentes
5. DESCRIPCIÓN DE COMPONENTES 5.1 EQUIPO DE REFRIGERACIÓN It consists of the following components: - Compressor. - Condenser. Air or water. - Evaporator. Vertical tube with cooling jacket. They are kept filled with water and, inside, a worm screw scrapes and removes the ice that forms. - Thermostatic expansion valve (capillary in smaller models). -
Page 17: Hydraulic Equipment
5.2 HYDRAULIC EQUIPMENT • Water inlet valve. Controlled by the control board; supplies water from the tank. • Water tank/basin. Maintains the water level inside the evaporator using the communicating vessels principle. Stainless steel electrodes signal the control board to maintain the internal level. An overflow allows drainage to prevent internal spillage in case of malfunction and serves as a drain plug for the tank. -
Page 18: Drainage By Pump (Only For Compacts)
5.2.3. Drainage by pump (only for compacts) While the machine is on, there is water that needs to be evacuated: • melt water from the ice melting in the ice bin. • water from the drain valve that empties the system. •... -
Page 19: Water Level Control
5.2.4 Water level control The water level control system is carried out directly by the conductivity signal at the short electrode LW. Two electrodes of different lengths (as shown in the illustration below) are placed in the water tank, from which an analogue conductivity signal (LW) is generated once the water reaches the short electrode. -
Page 20: Electrical Equipment
5.3 ELECTRICAL EQUIPMENT Motor-Reducer (R) / Pushbutton Motor-technical protector (Pt) panel outside Water level electrodes (Lw) Solenoid drain valve (EV) Pressure Water inlet solenoid switches valve (EW) Compressor • Geared motor (R): is a mechanical assembly consisting of an electric motor coupled to a speed reducer. They reduce the input speed and multiply the torque based on the gear ratio "i". -
Page 21: Single Phase Electronic Board
5.4. SINGLE PHASE ELECTRONIC BOARD CONMPACT MACHINE WITH NTC MODULAR MACHINE with variator... -
Page 22: Inlets
MODULAR MACHINE with ST stop 5.4.1 Inlets Symbol Description Safety pressure switch Reducing thermal protector. Water level in the bucket Safety entrance (ice outlet lock). ST +12 Stop stock sensor NPN 12Vdc. auxiliary digital input Internal button on the plate 5.4.2 Outlets Symbol Description... -
Page 23: Signaling Leds
5.4.3 Signaling LEDs The following tables describe the signals provided by the different LEDs on the control board. Whenever there is voltage there must be a green indicator LED (STB) active voltage of 5V. 5.4.3.1 Input LEDs The input LEDs are positioned next to each of their corresponding inputs. Green LED color with active signal. 5.4.3.2 Output LEDs The output LEDs are positioned next to their corresponding relays. -
Page 24: Setting The Dip Switches
5.4.3.4 Status LEDs. Alarm (flashing LEDs) The following table defines the alarm states of the machine, which can be differentiated with the following flashing of the status LEDs: Intermittents Flashing red LED DL1 DL2 DL3 DL4 DL1+2 Reducer Below the lower limit current R Above the upper limit open... -
Page 25: Functions Of The Internal Button On The Plate (Rt)
The following table shows the default intensity configuration in each of the possible combinations allowed by the switches on the control board (S5, S6, S7 and S8). SWITCH Intervalo de Intensidad Nº valor Modelo 0,2 - 1 0,5 – 1,2 0,5 –... -
Page 26: Three-Phase Electronic Board
5.5 THREE-PHASE ELECTRONIC BOARD In addition to the errors explained in the single-phase board section, there are also phase sequence errors. -
Page 27: Electronic Board For Drainage By Pump
5.6 ELECTRONIC BOARD FOR DRAINAGE BY PUMP. PCB conexiones Salidas Bomba de agua Entradas Sensor de nivel de agua LED signage There are two LEDs that indicate the status of the machine. Status signaling. Continuous LED LED5 LED6 Pump running Water level sensor on... -
Page 28: Modbus
5.7 MODBUS Modbus is an open communication protocol, used to transmit information over serial networks between electronic devices. The device that requests the information is called the Modbus master and the devices that supply the information are the Modbus slaves. For its physical connection, it must be connected to CN4 and CN6 of the electronic board. -
Page 29: Operation Sequence
6. OPERATION SEQUENCE 1. When powering the machine with the mains switch (see point 3.3). in red. The machine switches to stand-by mode with the button 2. When pressed, the machine will time out for 10 minutes with the button flashing in blue. 3. -
Page 30: 7- Alarms
7- ALARMS They detect malfunctions. These are indicated by flashing status LEDs DL1-4. For some alarms, a second retry attempt is made and if it is repeated again, the machine stops. If the second retry attempt is successful, the signaling is turned off. In case the machine stop was caused by an alarm, the resetting is done by turning the main switch off and 7.1 High pressure safety switch If the pressure switch is actuated (contacts open), the control board input (Ps) opens, generating this shutdown... -
Page 31: Stop Of The Geared Motor Due To Current Above The Upper Limit
7.2.3 Stop of the geared motor due to current above the upper limit If the measured current value of the geared motor R is above the upper limit of the range specified in the switch setting table (section 5.4.4) for a time of 5 consecutive seconds, the machine stops. Signaling: •... -
Page 32: Blocking Alarm
Two types of faults are detected: Probe shorted Probe not connected or open Signaling: External panel PE4 pilot light fixed on Internal: ▪ Probe not connected or open: LED1+2 with 2 flashing lights. ▪ Probe short-circuited: LED1+2 with 1 flashing light 7.6 Blocking alarm It is not used as standard on the machine, but it can be wired for any external alarm that you want to manage. -
Page 33: Maintenance And Cleaning Procedures
8. MAINTENANCE AND CLEANING PROCEDURES It is the responsibility of the user to maintain the ice machine and ice storage bin in a hygienic condition. Ice machines also require occasional cleaning of their water systems with a specifically designed chemical. This chemical dissolves mineral buildup that forms during the ice making process. -
Page 34: Cleaning Of Air Condenser
8.1 CLEANING OF AIR CONDENSER 1. Disconnect the power supply of the machine. 2. Close the water inlet valve or the faucet. 3. Clean with the aid of a vacuum cleaner, non-metallic brush or low-pressure air. 4. Open the water inlet valve or faucet. 5. -
Page 35: Cleaning Cycle
8.4 CLEANING CYCLE In this operating mode of the machine, it is used to clean the hydraulic circuit (evaporator, tank and feed pipe). There is no cold generation and therefore the compressor will be deactivated during the whole cycle. First of all, the water inlet tap must be closed. For emptying and cleaning, proceed as follows: •... -
Page 36: Decalcification Process
8.4.1 Decalcification process First, close the water inlet tap and leave the machine in Stand-by (button PE1 in red ), which is activated pressing and holding the PE1 button on the display for 7 seconds. When activated, it starts only the geared motor R for 30 minutes, during which time the user fills the bucket with the cleaner (50% phosphoric acid and water, or use an anti-scale cleaning product such as ITV's Calklin. -
Page 37: Maintenance Table
8.7 MAINTENANCE TABLE ACTION MONTHLY QUARTERLY SEMESTERLY ANNUAL BIENNIAL T UNIT Cleaning 30 minutes air condenser Cleaning 90 minutes water condenser 45 minutes Descaling Disinfection 30 minutes Cleaning/exchange 30 minutes water filters Exterior cleaning Depending on the characteristics of the environment Indispensable/Essential Depending on water quality Performed by owner... -
Page 38: Troubleshooting Guide
9. TROUBLESHOOTING GUIDE 9.1 GENERAL QUESTIONS PROBLEMS POSSIBLE CAUSES SOLUTION No power. Check power supply and connection Switch OFF None of the electrical systems work. Compact: side electrical panel Power on Front display off Modular: rear part Display connector loosened Check. -
Page 39: Pump Drainage
PROBLEMS POSSIBLE CAUSES SOLUTION Very high ambient temperature (> Change the location of the machine, if 35º C) possible. Very high water temperature (> Check the piping and filter in case condensation air or other heat source 30º C heats up the water in the pipes. Very wet ice Lower the position of the water tank. -
Page 40: Technical Information
10. TECHNICAL INFORMATION OTHER TECHNICAL INFORMATION For more technical information, scan the QR code below or click on the link: • Technical Data Sheets • User's manual • Parts • CAD / REVIT • Technical videos https://acortar.link/yqDOHZ...
