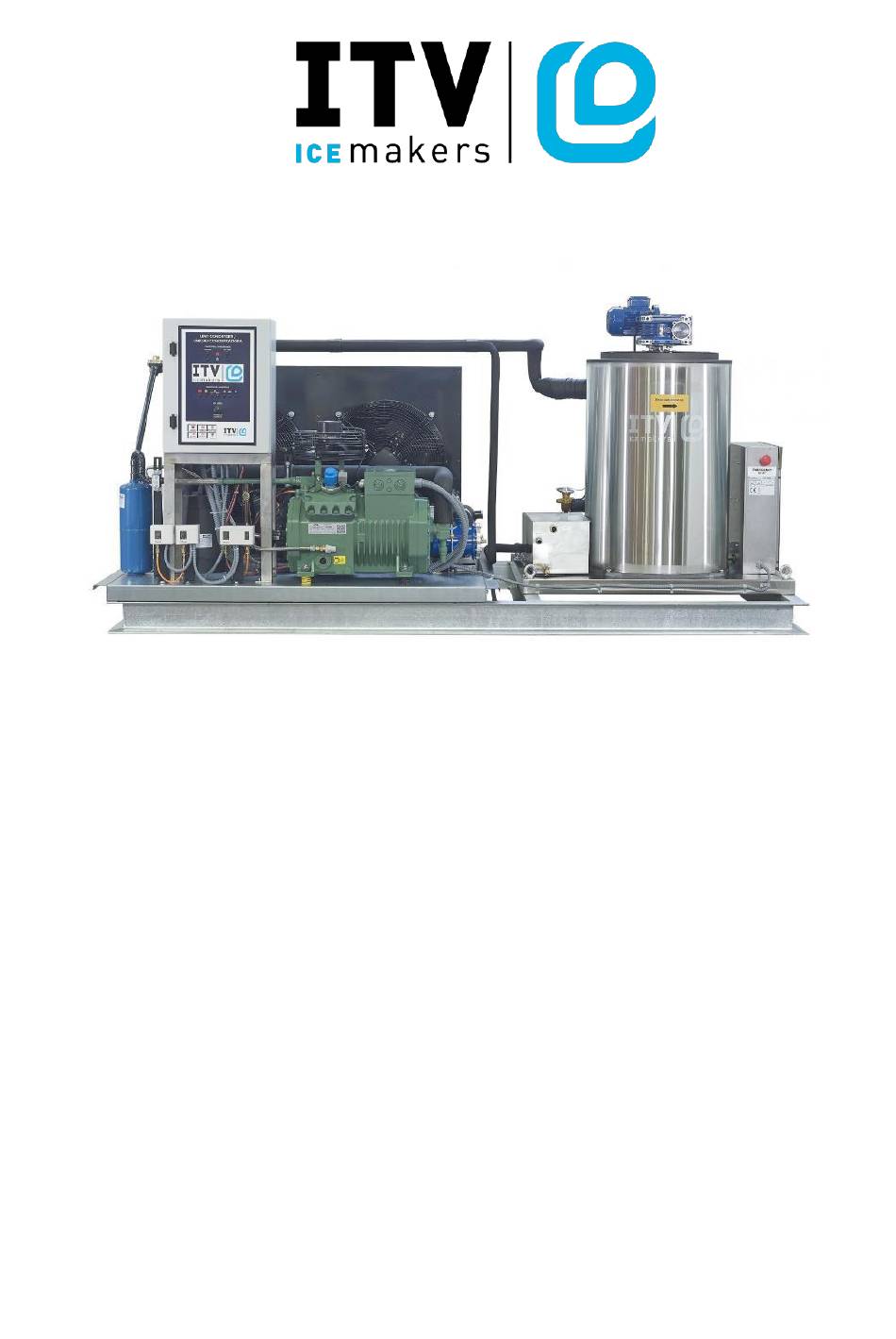

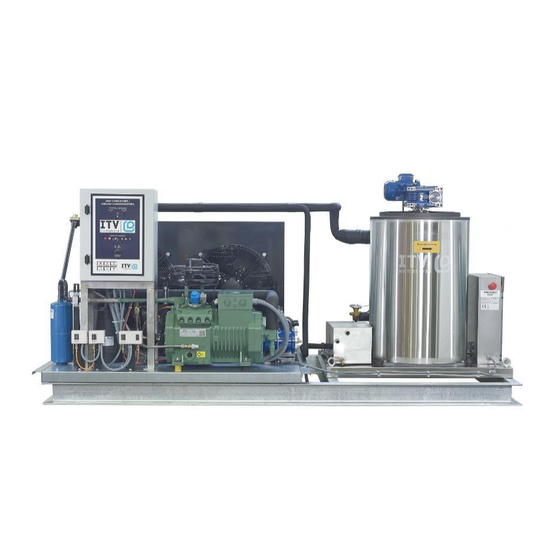

- Page 1 INSTALLATION MANUAL SCALA 3000 COMPACT...
- Page 2 INSTALLATION MANUAL SCALA 3000 ADVICE FOR THE INSTALLATION OF SCALA 3000 COMPACT STEP 1: LOCATION OF THE ICE MACHINE • Needs an electricity commenction: 1 three phase socket 5+TTx6 mm2. Install differential and thermal in the main frame (32 amps, consumption 14870W).
- Page 3 INSTALLATION MANUAL SCALA 3000 Step 2: INSTALLATION REMOTE ELECTRICAL CONTROL BOX (TO BE INSTALLED IN SILO CHAMBER) The remote box lets you control the unit from the silo chamber. It has a switch to start/stop the ice maker, and another to start/stop the water evaporator (cooler). In addition, it has LEDs indicating: •...
- Page 4 INSTALLATION MANUAL SCALA 3000 Terminal box condenser unit generator In addition, there are two outputs to power the cooler (evaporator), which is located in the chamber, upper part, to cool the water that goes to the generator. Use a 3x1.5 mm2 cable to feed.
- Page 5 INSTALLATION MANUAL SCALA 3000 REMOTE CONTROL SCALA 3000 1. Phase L 2. Phase N Heater 3. Reduction gear thermostat 4. Reduction gear 5. Full ice photocell 6. Full ice photocell 7. Thermal reducer 8. Thermal compressor 9. Lack of water 10.
-
Page 6: Step 3: Plumbing Installation
INSTALLATION MANUAL SCALA 3000 STEP 3: PLUMBING INSTALLATION The ice generator has a ¾” water inlet, ready to connect the water supply network. In the installation is included a cooler (evaporator) to to be placed in the silo chamber, and to reduce the inlet temperature of water to the unit. - Page 7 INSTALLATION MANUAL SCALA 3000 Water inlet network Overflow pipe Emptying tank Water tank STEP 3: INSTALLATION OF PIPE FOR ICE DROPPING TO SILO The ice comes out through the circular opening of the evaporator and falls by gravity. Being sub- cooled flake ice, from -5ºC to -7ºC, with a thickness of 1.2 mm to 3 mm, it inclines to come out (by the rotation of the milling cutter that causes the ice to fall from the evaporator wall).
- Page 8 INSTALLATION MANUAL SCALA 3000 Bottom of ice unit STEP 4: INSTALLATION STOP PHOTOCELL The unit has a remote stop photocell, which can be installed in the chamber, to stop the ice falling (if the fall is completely conducted, it is not necessary, since it stops just below the evaporator, which has the stop photocell for full of ice).
- Page 9 INSTALLATION MANUAL SCALA 3000 Position the switch as indicated in the figure – Adjust the TIME selector to the minimum until it stops in anti-clockwise rotation – Adjust the operating distance with the SENS selector – Put an object at the desired distance If the sensor does not detect the object (LED ON) –...
-
Page 10: Step 5: Starting Up
INSTALLATION MANUAL SCALA 3000 STEP 5: STARTING UP • Start the unit. It comes with a control panel, with a delayed start of 3 minutes for safety. After 3 minutes, the water pump starts up, the reduction motor starts and the liquid solenoid valve opens, then the unit starts. - Page 11 INSTALLATION MANUAL SCALA 3000 ELECTRIC DIAGRAM EVAPORATOR PANEL UNIT...
