Summary of Contents for ITV ICE MAKERS DELTA NDP60

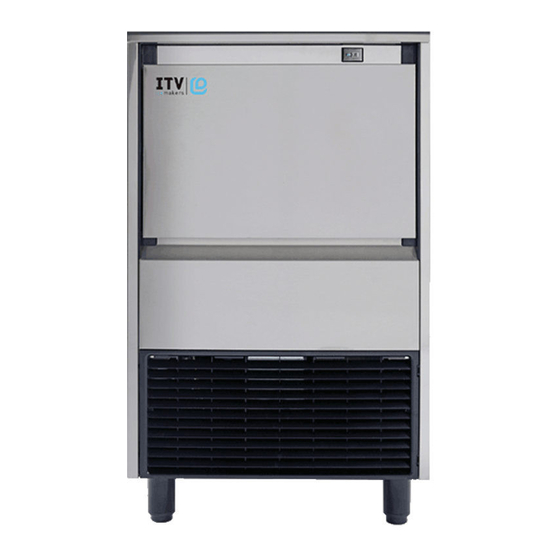

- Page 1 DELTA USER MANUAL NG MACHINES R290 ICE CUBE MAKERS / UNDERCOUNTER MODELS NDP60 NG80 NG100 NG120 NG180 NG260 NG360...
- Page 2 USER MANUAL NG MACHINES: ALFA / GALA Ice Cube Makers - Self Contained Models...
- Page 3 DELTA USER MANUAL NG MACHINES R290 INDEX WARNING RECEPTION OF THE MACHINE INSTALLATION START-UP MAINTENANCE AND CLEANING PROCEDURES...
- Page 4 THIS MANUAL IS PART OF THE PRODUCT. READ IT CAREFULLY IN ORDER TO USE AND MAINTAIN THE EQUIPMENT CORRECTLY. IT IS IMPORTANT TO KEEP IT FOR FUTURE TROUBLESHOOTING AND REFERENCE. Warning This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments;...
- Page 5 In case of a flammable refrigerant leakage: • Do not generate flames close to the appliance. • Do not switch on/off or plug in/off the appliance. • To ventilate immediately the area where appliance is located by opening doors and/or windows. •...
-
Page 6: Reception Of The Machine
Reception of the Machine Inspect the outside packing. In case of damages, MAKE THE CORRESPONDING CLAIM TO THE CARRIER. To confirm the existence of damages, UNPACK THE MACHINE IN THE PRESENCE OF THE CARRIER and state any damage on the equipment on the delivery document or on a separate instrument. Always state the machine number and model. -
Page 7: Minimum Distance To Obstacles
USER MANUAL NG The NG machines with air-cooler condenser take the air through the front section, and drive it off through the lateral, back and also front louvers due to their new oblique condenser structure and placement. Do not place anything over the maker or in facing the front louver. - Page 8 (1) Water and Drainage Water quality has a remarkable influence on the appearance, hardness and flavour of the ice as well as, in the machines condensed by water, on the life of the condenser. (2) Connections to the Water Network Use a flexible food grade pipe.
- Page 9 USER MANUAL NG Start-Up (1) Previous Checkup a) Is the machine leveled? b) Voltage and frequency are the same as those on the nameplate? c) Are the discharges connected and operating? d) Will the ambient temperature and water temperature remain in the following range? ROOM WATER MAXIMUM...
-
Page 10: Maintenance And Cleaning Procedures
Maintenance and Cleaning Procedures CAUTION: Instruct the user about maintenance, informing that maintenance and cleaning operation as well as damages due to the lack of such operations are not included in the warranty. If a good maintenance is performed, the machine will continue producing a good quality of ice and will be free of damages. - Page 11 USER MANUAL NG 6) Remove overflow pipe to empty reservoir. ** Sanitary cleaning. Repeat operation using approved (EPA/FDA) sodium hypochlorite food equipment sanitizer to form a solution with 100 to 200 ppm free chlorine yield. (Household bleach 12,5% can be used) 7) Switch on again the machine.
