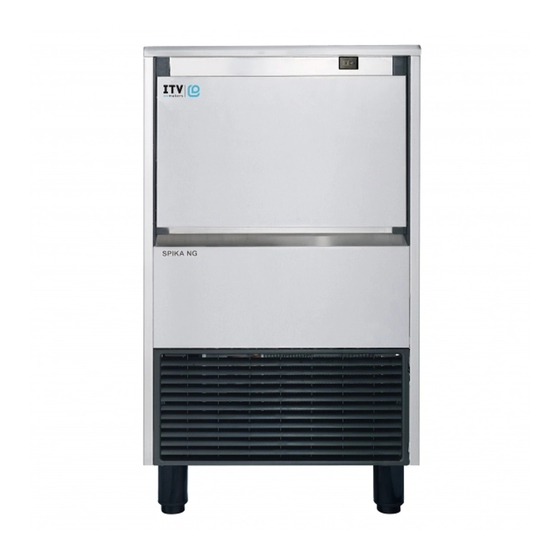

SPIKA NG 130
SPIKA NG 160
SPIKA NG 230
SPIKA NG 360
ICE CUBE MAKERS / MODULAR MODELS
MÁQUINAS DE HIELO EN CUBITOS / MODELOS MODULARES
MACHINES A GLAÇONS / MODELES MODULAIRES
SPIKA MS 500
SPIKA MS 600
SPIKA MS 1000
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ITV ICE MAKERS SPIKA NG 130
Summary of Contents for ITV ICE MAKERS SPIKA NG 130
- Page 1 MANUEL DE L’ UTILISATEUR SPIKA MACHINES ICE CUBE MAKERS / UNDERCOUNTER MODELS MÁQUINAS DE HIELO EN CUBITOS / MODELOS COMPACTOS MACHINES A GLAÇONS / MODELES COMPACTES SPIKA NG 130 SPIKA NG 160 SPIKA NG 230 SPIKA NG 360 ICE CUBE MAKERS / MODULAR MODELS MÁQUINAS DE HIELO EN CUBITOS / MODELOS MODULARES...
-
Page 2: Table Of Contents
SPIKA USER MANUAL SPIKA MACHINES MANUAL DEL USUARIO MÁQUINAS SPIKA MANUEL DE L’ UTILISATEUR SPIKA MACHINES INDEX INTRODUCTION WARNING RECEPTION OF THE MACHINE INSTALLATION START-UP MAINTENANCE AND CLEANING PROCEDURES USER TROUBLESHOOTING GUIDE WIRING DIAGRAMS Introduction Thank you for purchasing a ‘Spika Series’ Ice Cube Maker by ITV. You have purchased one of the most reliable ice-making products on the market today. Carefully read the instructions contained in this manual since they provide important information relative to safety during installation, use, and maintenance. -
Page 3: Warning
Warning This appliance is intended to be used in household and similar applications such as staff kitchen areas in shops, offices and other working environments; farmhouses and by clients in hotels, motels and other residential type environments; bed and breakfast type environments; catering and similar non-retail applications. The installation of this equipment should be done by the Service Department. -
Page 4: Installation
USER MANUAL SPIKA (3) Nameplate: On the back of the machine. Check that in interior of the machine the installation kit is complete and comprises: • Scoop, four legs and manual. • Warranty and serial number CAUTION: All packing elements (plastic bags, carton boxes and wood pallets) should be kept outside the reach of children, as they are a source of potential hazard. Installation 1.- LOCATION OF ICE MACHINE This ice maker is not designed for outdoor operation. - Page 5 3.-MINIMUM DISTANCE TO OBSTACLES The minimum clearance values you can see below are recommended for efficient operation and servicing. UNDERCOUNTER MODELS MODULAR MODELS 4.-CONNECTION DIAGRAMS The location must allow enough clearance for water drain and electrical connections in the rear of the ice machine. UNDERCOUNTER MODELS...
- Page 6 USER MANUAL SPIKA MODULAR MODELS 5.-WATER SUPPLY The quality of the water supplied to the ice machine will have an impact on the time between cleanings and ultimately on the life of the product (mainly in water cooled units). It also will have a remarkable influence on the appearance, hardness and flavour of the ice. Local water conditions may require treatment of the water to inhibit scale formation, improve taste and clarity.
-
Page 7: Start-Up
SPIKA NG 130 SPIKA NG 160 SPIKA NG 230 SPIKA NG 360 8.-INSTALLATION OF MODULAR EQUIPMENTS ON TOP OF BINS Modular ice makers should be installed on top of bins, following the instructions contained in this manual. The resistance and stability of the container-machine/s assembly should be verified, as well as the fastening elements. Follow bin manufacturer instructions. - Page 8 USER MANUAL SPIKA In case the room temperature exceeds 85ºF (29.5ºC) or water inlet temperature exceeds 68ºF (20ºC) the following adjustments should be made to ensure a proper efficiency. Control Schematics Considering the fabrication time and water inlet time, you can make the switches adjustments accordingly.
-
Page 9: Maintenance And Cleaning Procedures
2.- Start-Up Once the installation instructions are followed (ventilation, site conditions, temperatures, water quality, etc.), proceed as follows: 1. Open the water inlet. Verify the no existence of leakages. 2. For undercounter models open the door and remove the protection elements on the shield. For modular models remove the two locking screws on top of machine, take off the front panel and remove protection elements on the shield and on the thickness sensor. - Page 10 USER MANUAL SPIKA 3. Remove all ice from the bin. 4. Remove the auxiliary pipe for drain operations near the pump and empty the water tray. Return it to their original position to avoid water spill. 5. Prepare a solution of an appropriate product for the cleaning of ice machines (lime). Do not use hydrochloric acid. We recommend the use of any NSF approved scale removal product prepared according to the manufacturer’s instructions.
- Page 11 17. Return shield to its position. 18. Connect power and water supplies. 19. Fill water reservoir with the sanitizer solution. 20. Switch on machine in order to run water pump. Let solution stand for 20 minutes and switch off. 21. Remove the auxiliary pipe to drain and purge out the sanitizer solution and residue. Replace it. Fill the water reservoir with water and switch on the machine to allow water to circulate for 5 minutes and then stop the machine.
-
Page 12: User Troubleshooting Guide
USER MANUAL SPIKA User Troubleshooting Guide UNDERCOUNTER MODELS: PROBLEM PROBABLE CAUSE SOLUTION None of the electrical parts work. The machine is unplugged. Plug in the machine and verify shocket power. Bin thermostat open. Ice Remove ice from the bin. touching bin tube. Bin thermostat open.
