SPIKA
USER MANUAL SPIKA MACHINES
MANUAL DEL USUARIO MÁQUINAS SPIKA
MANUEL DE L' UTILISATEUR SPIKA MACHINES
ICE CUBE MAKERS / UNDERCOUNTER MODELS
MÁQUINAS DE HIELO EN CUBITOS / MODELOS COMPACTOS
MACHINES A GLAÇONS / MODELES COMPACTES

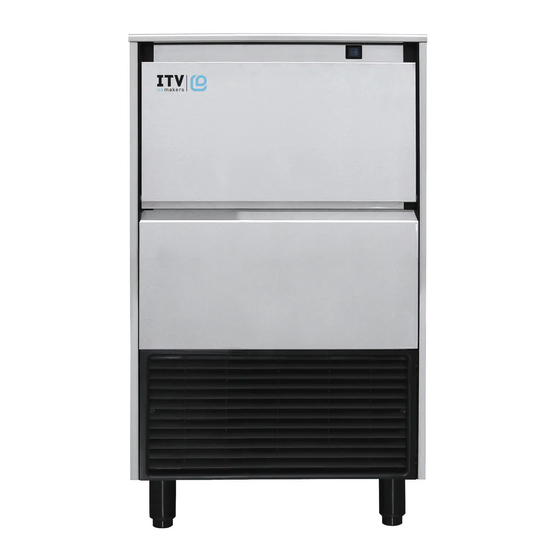

SPIKA NG 45
SPIKA NG 50
SPIKA NG 70
SPIKA NG 100
SPIKA NG 140
SPIKA NG 160
ICE CUBE MAKERS / MODULAR MODELS
MÁQUINAS DE HIELO EN CUBITOS / MODELOS MODULARES
MACHINES A GLAÇONS / MODELES MODULAIRES
SPIKA MS 220
SPIKA MS 300
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for ITV ICE MAKERS SPIKA NG 45
Summary of Contents for ITV ICE MAKERS SPIKA NG 45
- Page 1 MANUEL DE L’ UTILISATEUR SPIKA MACHINES ICE CUBE MAKERS / UNDERCOUNTER MODELS MÁQUINAS DE HIELO EN CUBITOS / MODELOS COMPACTOS MACHINES A GLAÇONS / MODELES COMPACTES SPIKA NG 45 SPIKA NG 50 SPIKA NG 70 SPIKA NG 100 SPIKA NG 140...
-
Page 2: Table Of Contents
SPIKA USER MANUAL SPIKA MACHINES MANUAL DEL USUARIO MÁQUINAS SPIKA MANUEL DE L’ UTILISATEUR SPIKA MACHINES INDEX INTRODUCTION WARNING RECEPTION OF THE MACHINE INSTALLATION START-UP MAINTENANCE AND CLEANING PROCEDURES USER TROUBLESHOOTING GUIDE... -
Page 3: Introduction
Introduction Thank you for purchasing a ‘Spika Series’ Ice Cube Maker by ITV. You have purchased one of the most reliable ice-making products on the market today. Carefully read the instructions contained in this manual since they provide important information relative to safety during installation, use, and maintenance. -
Page 4: Reception Of The Machine
Reception of the Machine Inspect the outside packing. In case of damages, MAKE THE CORRESPONDING CLAIM TO THE CARRIER. To confirm the existence of damages, UNPACK THE MACHINE IN THE PRESENCE OF THE CARRIER and state any damage on the equipment on the reception document or freight document. - Page 5 2.- LEVELING THE ICE MACHINE Use a level on top of ice machine in order to ensure the equipment is perfectly levelled. Only for SPIKA NG (undercounter) machines: Screw the levelling legs onto the bottom of the ice machine as far as possible. Move the machine into its final position.
- Page 6 5.-WATER SUPPLY The quality of the water supplied to the ice machine will have an impact on the time between cleanings and ultimately on the life of the product (mainly in water cooled units). It also will have a remarkable influence on the appearance, hardness and flavour of the ice. Local water conditions may require treatment of the water to inhibit scale formation, improve taste and clarity.
-
Page 7: Start-Up
8.-INSTALLATION OF MODULAR EQUIPMENTS ON TOP OF BINS Modular ice makers should be installed on top of bins, following the instructions contained in this manual. The resistance and stability of the container-machine/s assembly should be verified, as well as the fastening elements. Follow bin manufacturer instructions. Start-Up 1.- Previous Checkup a) Is the machine levelled? -
Page 8: Maintenance And Cleaning Procedures
Modular Models Undercounter Models Damages due to the lack of maintenance and cleaning operations are not included on the warranty. 3.- Sequence of Operation • Initial Start-up: The first time the machine is started there is a delay of 30“in the power on sequence, it begins with the harvest sequence to ensure the water tray is filled. - Page 9 3. Remove all ice from the bin. 4. Remove the auxiliary pipe for drain operations near the pump and empty the water tray. Return it to their original position to avoid water spill. 5. Prepare a solution of an appropriate product for the cleaning of ice machines (lime). Do not use hydrochloric acid. We recommend the use of any food approved scale removal product prepared according to the manufacturer’s instructions.
- Page 10 12. Clean all surfaces of the shield with the cleaner solution using a brush (not a wire brush) or cloth. Rinse all areas with water. 13. Clean all the interior surfaces of the freezing compartment (including storage bin) with the cleaner solution using a brush or cloth. Rinse all areas with water.
- Page 11 (2) Water Condenser The water condenser may require cleaning due to scale build-up. The cleaning procedures require special pumps and cleaning solutions. They must be performed by qualified maintenance or service personnel. CLEANING THE OUTSIDE OF THE MACHINE Clean the area around the ice machine as often as necessary to maintain cleanliness. Sponge any dust and dirt off the outside of the ice machine with mild soap and water.
- Page 12 Clean the metal surfaces of the thickness sensor, water level sensor, the adjustment screw, the shield and the water tray with the cleaner solution using a brush (not a wire brush) or cloth. Clean the interior surfaces of the freezing compartment (including walls, plastic parts of the evaporator, distributor...) and the front panel with the cleaner solution using a brush or cloth.
-
Page 13: User Troubleshooting Guide
User Troubleshooting Guide UNDERCOUNTER MODELS: PROBLEM PROBABLE CAUSE SOLUTION None of the electrical parts work. The machine is unplugged. Plug in the machine and verify shocket power. Curtain not properly Check no ice and it moves freely closed No water in tray. Not incoming water.
