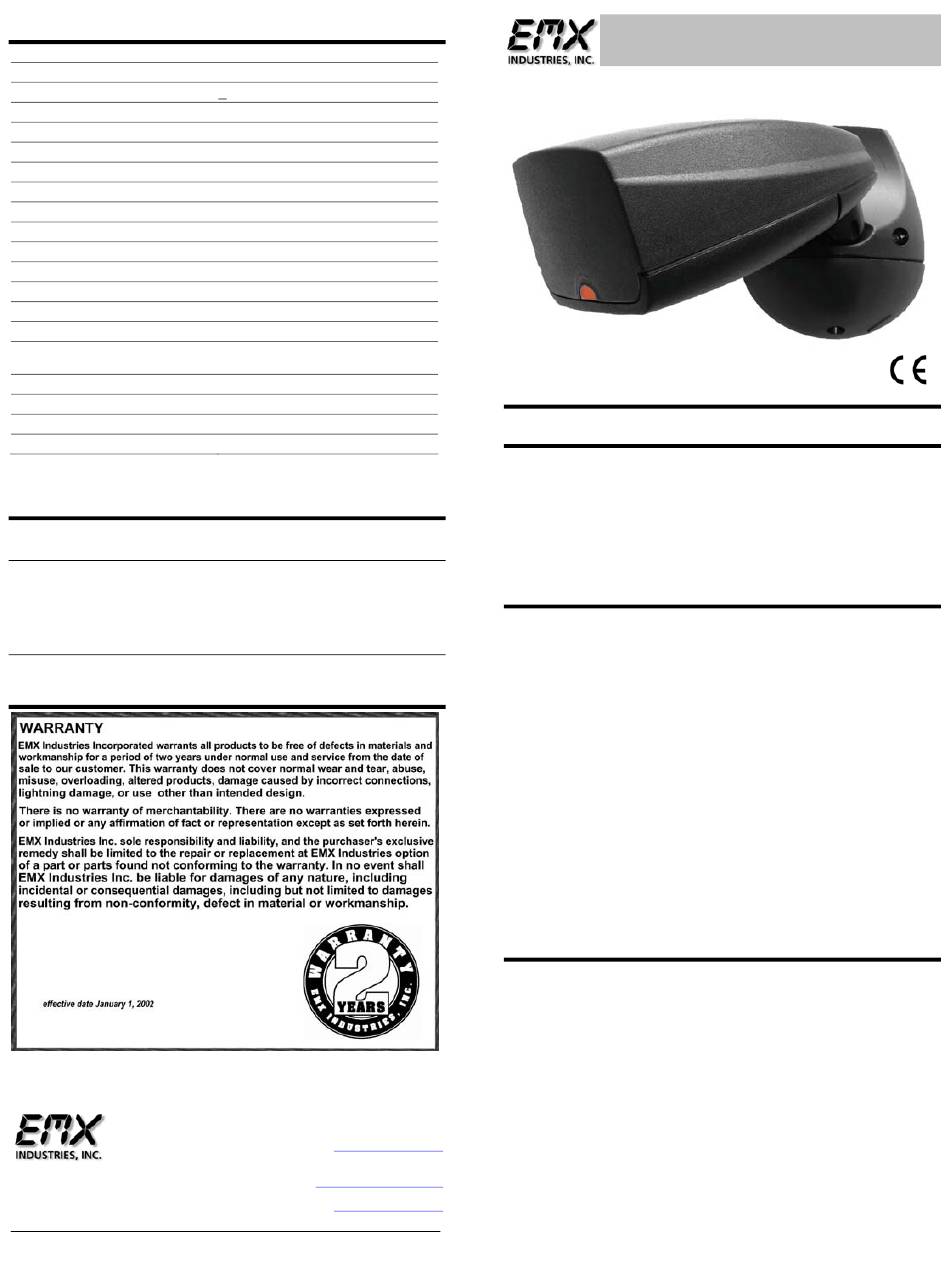

EMX HAWK 2 Operating Instructions

SPECIFICATIONS

Operating frequency
Output power (EIRP)
Detectable speed
Vertical directionality
Horizontal directionality
Installation height
Range
Relay control time
Relay output configuration
Relay contact rating
Detection indicator
Operating temperature
Supply Voltage
Operating current
Dimensions
Weight
Housing
Connection
Mechanical protection
CAUTIONS AND WARNINGS
This product is an accessory or part of a system. Always
read and follow the manufacturer's instructions for the
equipment before connecting this product. Comply with all
applicable codes and safety regulations. Failure to do so
may result in damage, injury or death
WARRANTY
HAWK 2 Operating Instructions
24.150 GHz
<20dBm
0.1 m/s min.
0...60°
+/- 45°
Max. 6 m
1...10 m adjustable
1...6 sec. adjustable
Form C (SPDT)
1A @ 24V AC/DC
Red LED
-4°F...122°F (-20°C...50°C)
12...24 VDC/VAC
Max. 40mA
6.3"(160mm) x 3.8"(95mm) x
4.4"(110mm)
1.0 lbs. (450 g)
ABS (plastic)
6.5' (2m) cable
IP66
4564 Johnston Parkway
Cleveland, Ohio 44128
United States of America
WEB http://www.emxinc.com
Sales Telephone (216) 518-9888
Fax (216) 518-9884
E-mail salessupport@emxinc.com
Technical Support Telephone (216) 834-0761
E-Mail: technical@emxinc.com
REV1.3 10.17.13
I N D U S T R I A L M O T I O N S E N S O R
OPERATING INSTRUCTIONS

MATERIALS SUPPLIED

•
Operating Instructions
•
HAWK 2 Sensor

GENERAL DESCRIPTION

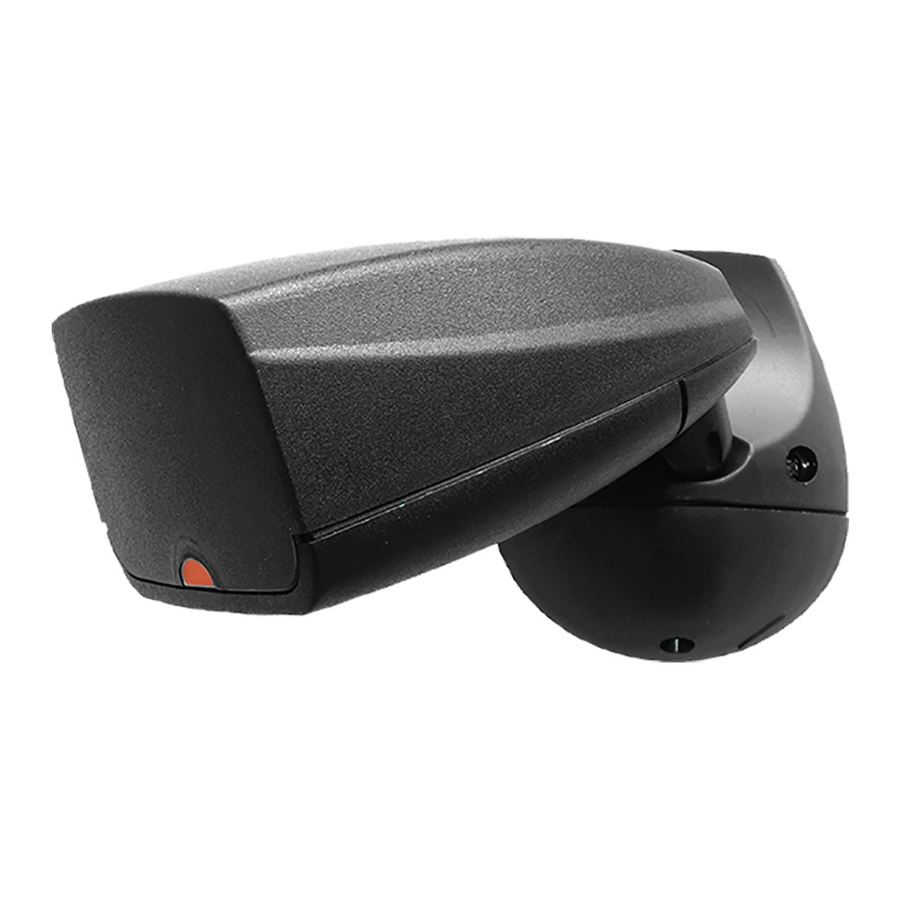

The HAWK 2 is a planar technology microwave detector
working in the K band. It is the ideal solution for operating all
types of fast doors and industrial gates.
movement of people and vehicles in the monitored area.
With an appealing style, it can also be used for operating
automatic doors.
Easy to install at a height of up to 20ft (6 meters), it has a
versatile mechanical orientation
positioning to the required coverage area.
sensitivity and direction of movement (toward, away or both)
are programmed by DIP switch setting. A microprocessor
processes the received Doppler signals and provides set of
form C relay contacts for external connection.
The LED on the front of the HAWK 2 indicates detection.

SET-UP

The HAWK 2 motion sensor can be configured in the mono
direction mode (one direction only) or in the bi-directional
mode (both directions). Remove the rubber plug from the
lower section of the detector (FIG. 1-A) and set the required
function using the dip-switch (FIG. 1-B) settings per the
following table.
Setting the detection range
It is possible to define the controlled area by changing the
angle of the detector and the position of the dip-switch 4 (Fig.
3). Using trimmer TR1 (FIG. 1-F) the sensitivity can be
optimized to activate detection only for the desired area.
HAWK 2
It detects the
system for accurate
The detection
