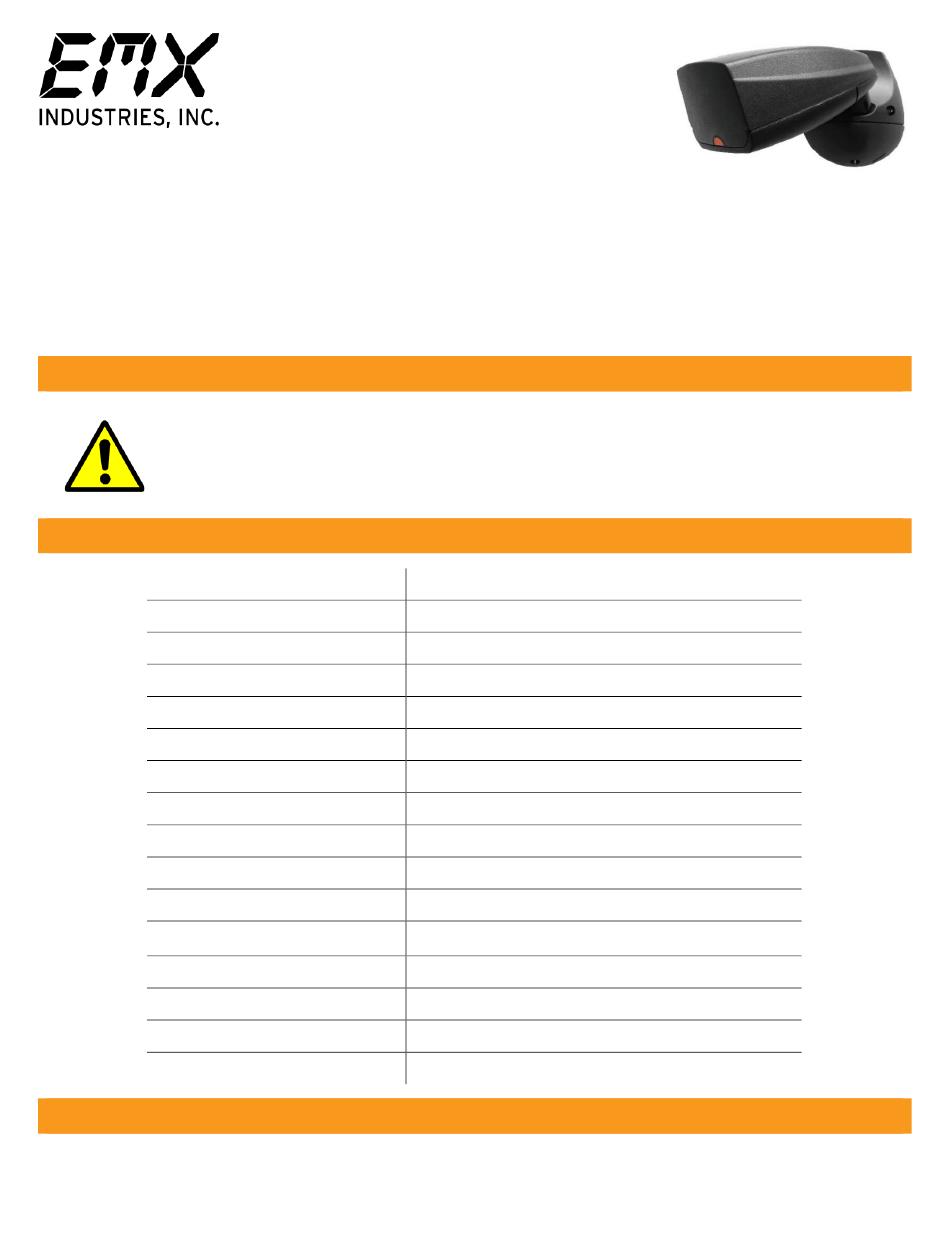

Instruction Manual

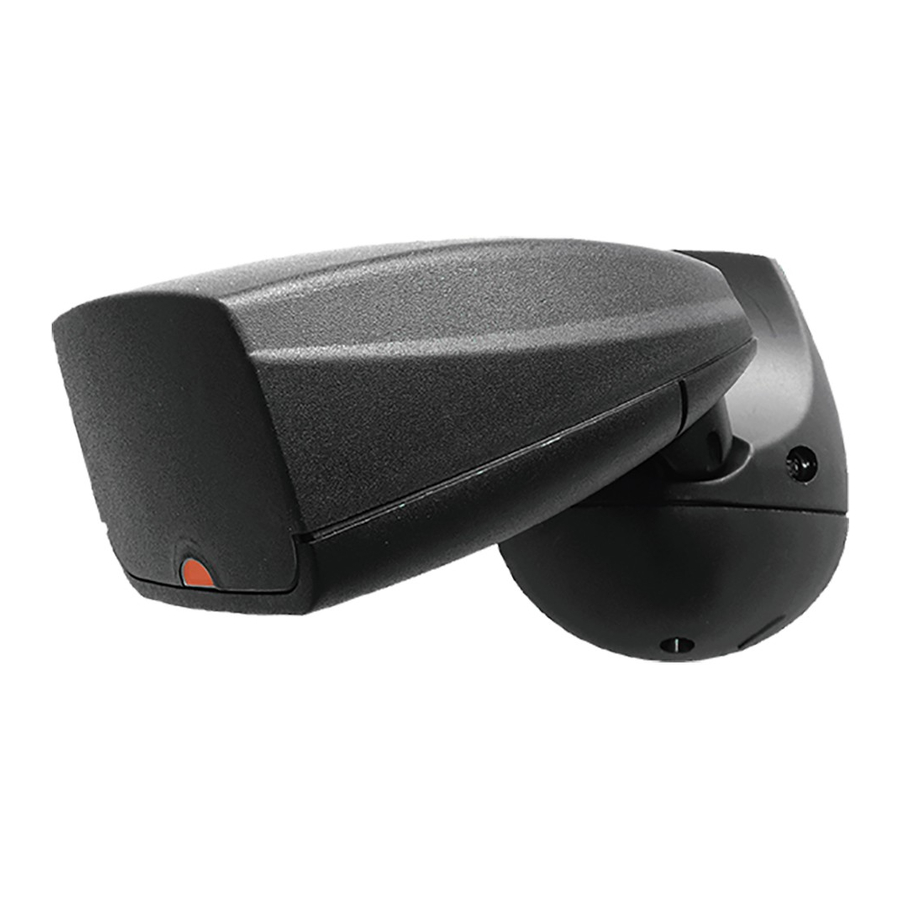

The HAWK 2 is a K-band microwave sensor. It detects the movement of people and vehicles in the
monitored area. The HAWK 2 is used for operating automatic doors and industrial gates. It has a versatile
mechanical orientation system for accurate positioning to the required coverage area making it easy
to install. The detection sensitivity and direction of movement (toward, away or both) are programmed by
DIP switch settings.
Cautions and Warnings
This product is an accessory or part of a system. Install the HAWK 2 according to
instructions from the gate or door operator manufacturer. Comply with all applicable
codes and safety regulations.
Specifications
Operating Frequency
Detection Range
Vertical Directionality
Horizontal Directionality
Mounting Height
Power
Current Draw
Relay Output
Relay Hold Time
Relay Contact Rating
Operating Temperature
Dimensions (L x W x H)
Connection
Housing Material
Weight
Environmental Rating
Ordering Information
HAWK 2
•
EMX Industries, Inc.
HAWK 2_Rev2.0_062420
HAWK 2
™
Overhead Microwave Motion Sensor
24.150 GHz
3-33 ft (1-10 m) (adjustable)
0-60°
+/- 45°
10-20 ft (3-6 m)
12-24 VDC/AC
40 mA (relay activated)
Form C (SPDT)
1-6 seconds (adjustable)
1 A @ 24 VDC/AC
-4° to 122°F (-20° to 50°C)
6.3" (160 mm) x 3.8" (95 mm) x 4.4" (110 mm)
6.5 ft (2 m) cable
ABS plastic
1.0 lbs (450 g)
IP66
Overhead Microwave Motion Sensor
Tech support: 216-518-9889
technical@emxinc.com
TM
1/3
Advertisement
Table of Contents
Related Manuals for EMX HAWK 2
Summary of Contents for EMX HAWK 2
- Page 1 Overhead Microwave Motion Sensor Instruction Manual The HAWK 2 is a K-band microwave sensor. It detects the movement of people and vehicles in the monitored area. The HAWK 2 is used for operating automatic doors and industrial gates. It has a versatile mechanical orientation system for accurate positioning to the required coverage area making it easy to install.
- Page 2 Mono-Directional mode. Detect Approaching Configures the relay contacts position (NO/NC) when in detect Relay Operation DIP Switch 3 and no-detect states. Normal Operation Positive Safety Normal Operation Positive Safety EMX Industries, Inc. Tech support: 216-518-9889 HAWK 2_Rev2.0_062420 technical@emxinc.com...
- Page 3 2. Remove the rubber plug from the back of the sensor and configure the DIP switches, output period, and range as desired. 3. Mount the HAWK 2 at a height between 10-20 feet. Use the provided mounting template to drill appropriately distanced holes on the mounting surface.
