Maintenance Manual

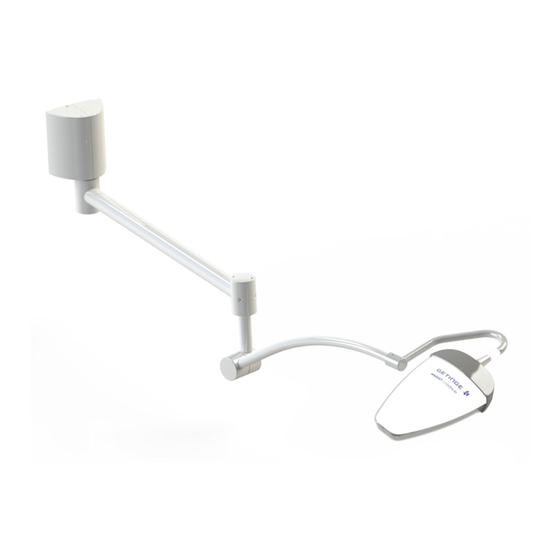

LUCEA 10-40
01700 EN  22-07-18

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LUCEA 10 and is the answer not in the manual?

Questions and answers

Related Manuals for Getinge LUCEA 10

Summary of Contents for Getinge LUCEA 10

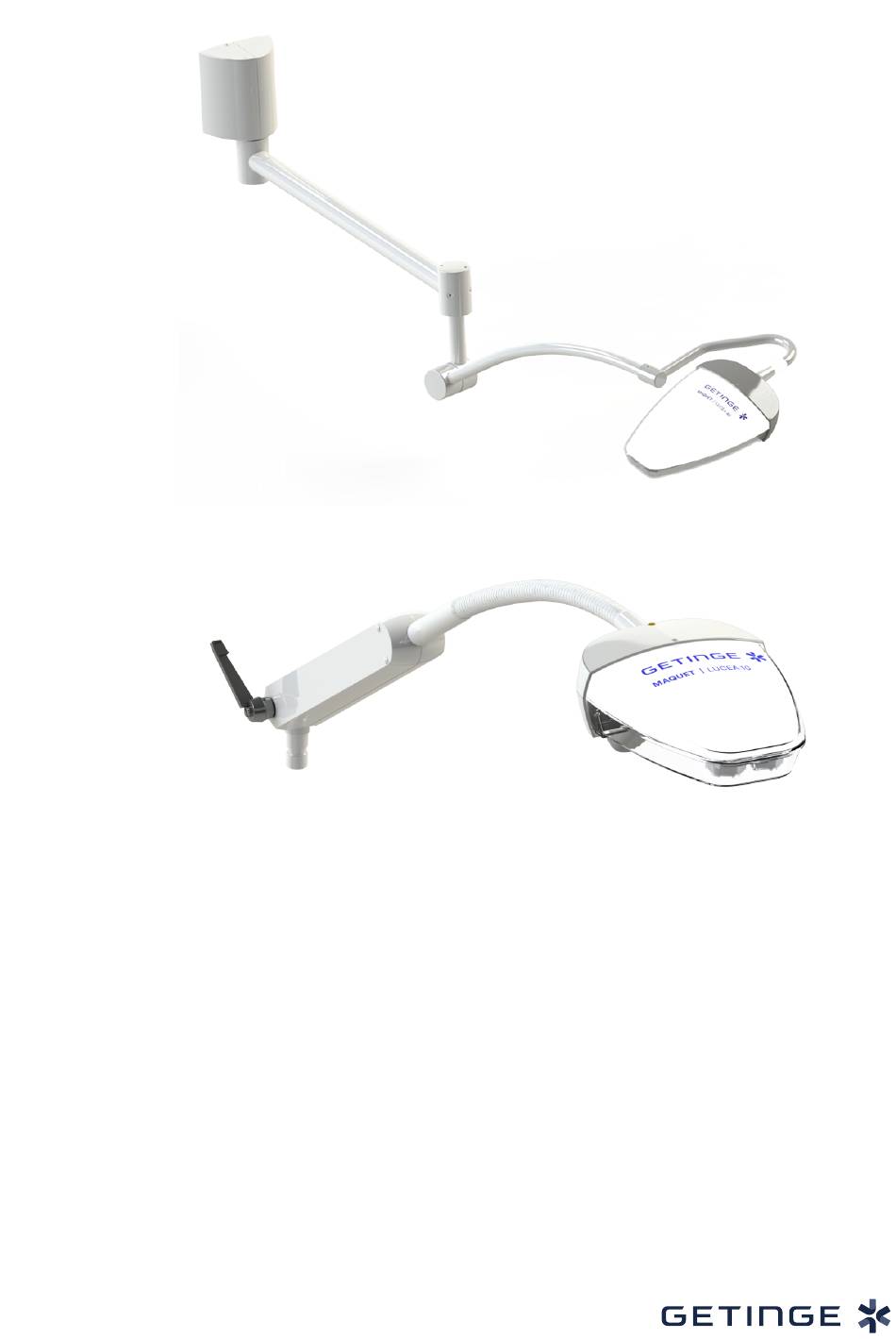

  • Page 1 Maintenance Manual LUCEA 10-40 01700 EN  22-07-18...
  • Page 2 © Copyright 2021 Maquet SAS Subject to technical changes. The illustrations and technical specifications provided in this manual may, on account of future product devel- opments, differ slightly from the actual product supplied. V 01 18.07.22 LUCEA 10-40 01700 EN...

  • Page 3: Table Of Contents

    Adjusting the ceiling and wall-mounted spring arm ..........22 4.3.2.3 Adjusting the mobile spring arm ................22 Mechanical inspections ........................4.4.1 Visual inspections on LUCEA 10 ................... 23 4.4.2 Visual inspections on LUCEA 40 ................... 26 4.4.2.1 Checking the position of the circlip..............29 Electrical inspection ..........................
  • Page 4 Contents LUCEA 10-40 4 / 40 01700 EN...

  • Page 5: Introduction

    Your hospital has chosen Getinge's innovative medical technology. We thank you for the confid- ence you have shown in us. Getinge is one of the world’s leading suppliers of medical equipment for operating rooms, hybrid rooms, induction rooms, intensive care units and patient transport. Getinge always puts the needs of healthcare staff and patients first during the development of its products.

  • Page 6: Definitions

    Additional assistance or useful information not relat- ing to risks of injuries or risks of material damage. ENVIRONMENT Information relating to recycling or to appropriate disposal of waste. Tab. 2: Types of indication in the document LUCEA 10-40 6 / 40 01700 EN...

  • Page 7: Safety-Related Information

    Anyone not trained in installation, maintenance or decommissioning opera- tions is exposed to the risk of injury or electric shock. Installation, maintenance and decommissioning of the device or components of the device must be performed by a Getinge technician or a Getinge-trained service technician. AR NI NG...

  • Page 8: Product Integrity

    AR NI NG Risk of infection Lightweight parts from the device may fall onto the surgical site. Check that all fastenings, covers, cover plates and bumpers on the device are properly in place. LUCEA 10-40 8 / 40 01700 EN...

  • Page 9: Technical Specifications

    100-240 VAC / 50-60 Hz Nominal voltage 40 V 45 V Rated power 14 VA 40 VA Tab. 3: LUCEA 10-40 electrical specifications Item Description Part number Length POWER CORD C7 Power cord for Europe 5 686 02 901 4 metres...

  • Page 10: Mechanical Specifications

    LUCEA 40 Lighthead weight 0.8 kg 1.85 kg Lighthead dimensions 223 × 175 mm 337 × 214 mm Sterilisation and disinfection methods Not applicable Operating mode Continuous operation Tab. 6: LUCEA 10-40 mechanical characteristics LUCEA 10-40 10 / 40 01700 EN...

  • Page 11: Diagrams

    Technical specifications Diagrams Diagrams 3.3.1 Lucea 10 circuit diagrams LUCEA 10 simplified circuit diagram: wall-mounted, mobile, desktop and rail-mounted (old version) black black Fig. 1: LUCEA 10 simplified circuit diagram: wall-mounted, mobile, desktop and rail-mounted LUCEA 10-40 11 / 40 01700 EN...
  • Page 12 Technical specifications Diagrams LUCEA 10 circuit diagram: wall-mounted, mobile, desktop and rail-mounted (new version) Regulator circuit LCA 10 soldered IEC cable ARD568602524 ARD669606029 HBU32-110 power supply Fig. 2: LUCEA 10 circuit diagram: wall-mounted, mobile, desktop and rail-mounted LUCEA 10-40 12 / 40...
  • Page 13 Technical specifications Diagrams Ceiling-mounted Lucea 10 circuit diagram Regulator circuit Fig. 3: Ceiling-mounted Lucea 10 circuit diagram LUCEA 10-40 13 / 40 01700 EN...

  • Page 14: Lucea 40 Circuit Diagrams

    Handle mount ARD568602519 ARD569003014 ARD568601563 ARD568601525 ARD569003038 LED board PCB connection cable Fork cables kit Blue 30 spring arm cable Extension cable Blue 30 Blue S80/30 850 Fig. 5: Circuit diagram for wall-mounted version LUCEA 10-40 14 / 40 01700 EN...
  • Page 15 Fork Spring arm Structure ARD568601525 ARD568602519 ARD569003014 LED board PCB connection cable Fork cables kit Blue 30 ARD568601504 110 V UL power cord ARD568601503 220 V CE power cord Fig. 6: Circuit diagram for mobile version LUCEA 10-40 15 / 40 01700 EN...
  • Page 16 5 682 04 020 5 682 04 540-A Connect to the double terminal / male term Power supply board Power supply cover 5 686 04 521-B Fig. 7: Integration of earth wires in the mobile unit LUCEA 10-40 16 / 40 01700 EN...

  • Page 17: Maintenance And Inspection Procedures

    Periodic replacements 4.2.1 Periodic replacement cycles To ensure safety and performance, please follow the recommendations below. Items Frequency Suspension mounting screws on Lucea 40 Every six years (tighten the screws with a torque of 16 N.m) LUCEA 10-40 17 / 40 01700 EN...

  • Page 18: Adjustments

    Maintenance and inspection procedures Adjustments Adjustments 4.3.1 On LUCEA 10 • Remove the three Torx screws. Fig. 8: Unscrewing the Torx screws • Remove the transparent housing and cover plate assembly. Fig. 9: Removing the transparent housing • Loosen the two Torx screws by a few turns.
  • Page 19 To reinstall the faceted structure and the cover subassembly, follow the above instructions in reverse order. The transparent housing mounting screw must be tightened to a torque of 0.9 N.m. OTICE Check that the two-pin connector is properly connected. LUCEA 10-40 19 / 40 01700 EN...

  • Page 20: On Lucea 40

    Fig. 14: Unscrew the Torx screws • Remove the transparent housing and cover plate assembly. Fig. 15: Remove the cover • Loosen the two Torx screws by a few turns. Fig. 16: Unscrew the Torx screws LUCEA 10-40 20 / 40 01700 EN...
  • Page 21 To reinstall the faceted structure and the cover subassembly, follow the above instructions in reverse order. The transparent housing mounting screw must be tightened to a torque of 0.9 N.m. OTICE Check that the two-pin connector is properly connected. LUCEA 10-40 21 / 40 01700 EN...

  • Page 22: Adjusting The Ceiling And Wall-Mounted Spring Arm

    – If the spring arm lowers by itself, tighten the locknut 2. • Place the cap back on the spring arm (1), ensuring that the pin (A) is aligned with the hole (B). Fig. 21: Adjusting the spring arm LUCEA 10-40 22 / 40 01700 EN...

  • Page 23: Mechanical Inspections

    Maintenance and inspection procedures Mechanical inspections Mechanical inspections 4.4.1 Visual inspections on LUCEA 10 • Check the entire surgical light (articulated arm, complete suspension with ceiling cover) for signs of damage • Checking for corrosion • Check for any chipped or missing paint.
  • Page 24 Use the handle to position the lighthead in order to illuminate the examination area. Fig. 26: Testing the manoeuvrability • Check that the flexible conduit/supply sub- assembly pivot is held in its mount (stop screw fitted). Fig. 27: Checking the pivot support LUCEA 10-40 24 / 40 01700 EN...
  • Page 25 Cover • Check that the wall bracket is firmly at- tached. Fig. 29: Fastening • Check that the rail or desk mount is cor- rectly positioned and tightly fastened. Fig. 30: Rail or desk mount LUCEA 10-40 25 / 40 01700 EN...

  • Page 26: Visual Inspections On Lucea 40

    Integrity of configuration • Check that the cover and split flange or half-covers are firmly in place. Fig. 32: Fitting of cover • Check the rigidity of the configuration by shaking the assembly. Fig. 33: Rigidity LUCEA 10-40 26 / 40 01700 EN...
  • Page 27 Check that the suspension tube is vertical (ceiling-mounted version). Fig. 34: Verticality • Check for any loose covers and caps. Fig. 35: Covers and caps • Check the balance of the spring arm and limit stops. Fig. 36: Balancing LUCEA 10-40 27 / 40 01700 EN...
  • Page 28 Maintenance and inspection procedures Mechanical inspections Check the manoeuvrability on LUCEA 40 Fig. 37: LUCEA 40 manoeuvrability LUCEA 10-40 28 / 40 01700 EN...

  • Page 29: Checking The Position Of The Circlip

    Wall-mounted power supply output voltage (48 VDC +/-10%) • Check the clamping of the wires in the terminal blocks • Check that the power supply is connected to earth. On Lucea 10 • Ceiling-mounted power supply output voltage (40 VDC +/-10%) LUCEA 10-40 29 / 40...

  • Page 30: Functional Tests

    For rail, desk, wall and mobile versions, check that the power cord is not damaged. • Check that the IEC mains connector on the power supply enclosure cover is cor- rectly connected Fig. 41: Rail, desk, wall and mobile versions LUCEA 10-40 30 / 40 01700 EN...

  • Page 31: Optical Inspections

    Operation of the LEDs 1. Check whether the LEDs operate cor- rectly, by pressing the On/Off button on the lighthead. 2. If a problem is noted, contact technical support. Fig. 43: Operation of LEDs LUCEA 10-40 31 / 40 01700 EN...

  • Page 32: Electrical Safety Tests

    Maintenance and inspection procedures Electrical safety tests Electrical safety tests Ceiling-mounted LUCEA 10 Fig. 44: Safety test, ceiling-mounted version Safety test: • Safety test to be performed between Point  and Point  Earth resistance must be ≤300 mΩ. Ceiling-mounted LUCEA 40 Fig. 45: Safety test, ceiling-mounted version...
  • Page 33 Safety test, wall-mounted version Safety test: • Safety test to be performed between Point  and Point  Earth resistance must be ≤300 mΩ. Continuity test (sound test): • Test the continuity between Point  and Point  LUCEA 10-40 33 / 40 01700 EN...

  • Page 34: Recording The Inspection

    Recording the inspection Recording the inspection See also SW Service Protocol PM OR Lights LUCEA 50 100-A [} 35] LUCEA 10-40 34 / 40 01700 EN...

  • Page 35: Lucea

    Suspension mounting screws every 6 years (Tighten the screws to the recommended tightening torque) 4. Parts replaced or needing replacement Replaced Need replacing Description Refer to the repair manual for detailed instructions. Document name: SW Service Protocol OR Lights LUCEA 10-40 www.getinge.com...
  • Page 36 Checking the adjustment of the lighthead brake Check the lighthead rotation limit stop Check the condition of the transparent housing and handle interface (no scratches, no cracks) Check that the configuration handles easily Document name: SW Service Protocol OR Lights LUCEA 10-40 www.getinge.com...
  • Page 37 Check the output voltage of the LUCEA 40 power supply (48 VDC +/-10%) Check the output voltage of the LUCEA 10 power supply (40 VDC +/-10%) Check the clamping of the wires in the terminal blocks Check that the power supply is connected to earth.
  • Page 38 Device shall not be used until all deficiencies are corrected. Device no longer safe. Taking out of service is recommended. Comments 14. Processed by Name / Title Date Signature YYYY Document name: SW Service Protocol OR Lights LUCEA 10-40 www.getinge.com...
  • Page 39 Notes...
  • Page 40 *LUCEA LED, MAQUET, GETINGE, SATELITE and GETINGE GROUP are trademarks or registered trademarks of Getinge AB, its divisions or its subsidiaries. **SURFA'SAFE is a trademark or registered trademark of ANIOS Laboratories, its divisions or its subsidiaries. **ANIOS is a trademark or registered trademark of ANIOS Laboratories, its divisions or its subsidiaries.
