User Guide
DC3251A
QUICK START PROCEDURE

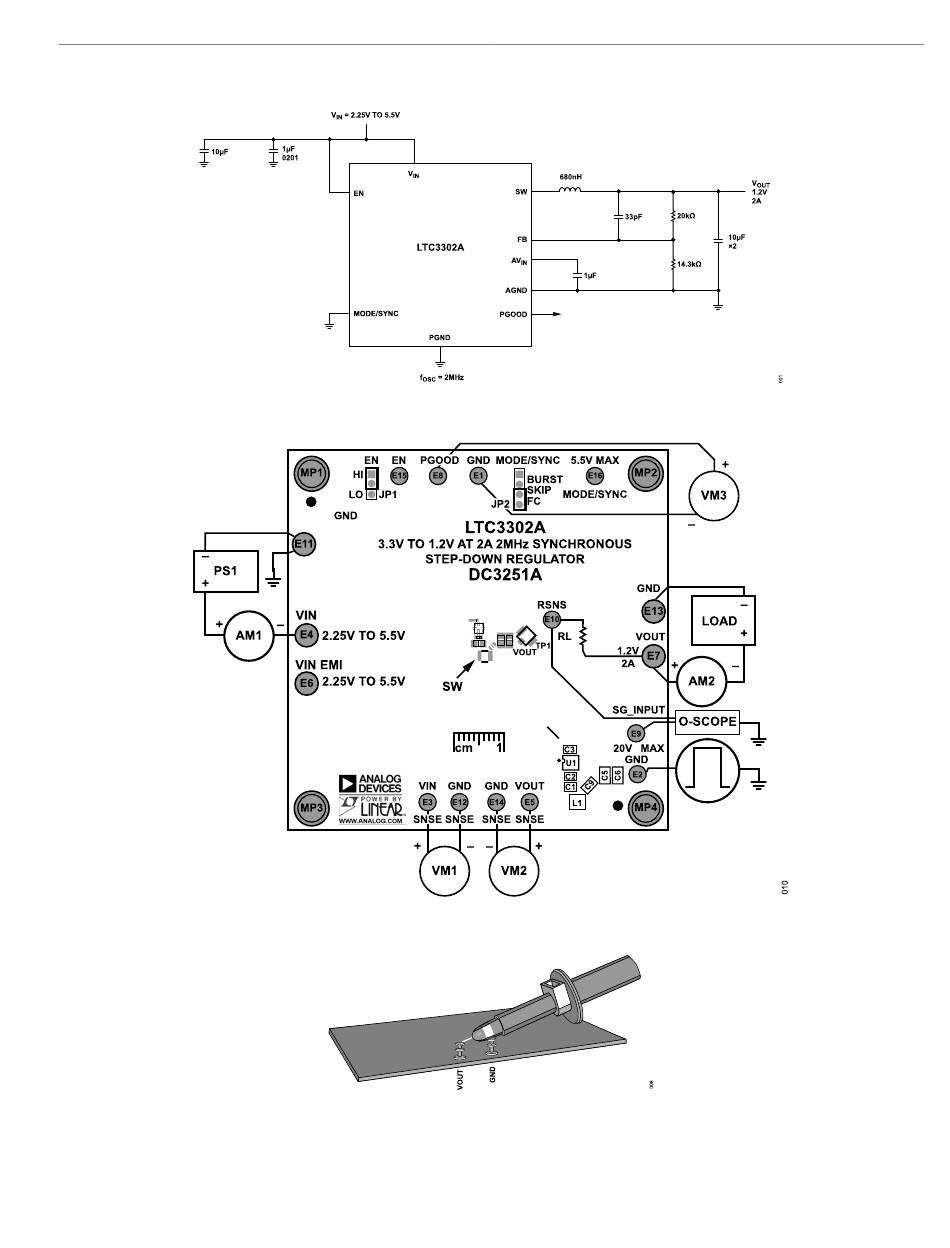

Figure 2. DC3251A Simplified Schematic
Figure 3. Test Setup for the DC3251A Demo Board
Figure 4. Technique for Measuring Output Ripple and Step Response with a Scope Probe
analog.com
Rev. 0 | 6 of 13
