- Page 1 Installation & Operation Manual Growatt New Energy Download Manual Shenzhen Growatt New Energy Co., Ltd 4-13/F,Building A,Sino-German(Europe) Industrial Park, Hangcheng Ave,Bao’an District, Shenzhen, China +86 0755 2747 1942 service@ginverter.com www.ginverter.com GR-UM-287-A-00...
- Page 2 Index 1 Notes on this manual 1.1 Validity 1.2 Applicable personnel 1.3 Symbols in this document 2 Safety 2.1 Product description and features 2.2 Qualification of skilled person 2.3 Safety instruction 3 Product overview 3.1 Appearance overview 3.2 Dimensions 3.3 Storage environment 4 Unpacking inspection 5.1 Basic installation requirements 5 Installation...
- Page 3 13 Troubleshooting 7 Debugging 13.1 Error message 13.2 Syetem error 14 Manufacturer warranty 8 Working mode 8.1 Normal mode 8.2 Failure mode 15 Decommissioning 9 OLED display and touch 15.1 Dismantling the inverter 9.1 Start the inverter buttons 15.2 Packing the inverter 9.2 General setting 15.3 Storing the inverter 9.3 Advanced setting...
-
Page 4: Notes On This Manual
If the procedure or practice is not properly implemented or Alternating Current (AC) followed, it may cause damage or destruction of part or all of the Growatt device and/or other equipment connected to the Growatt device, or cause personal injury. -
Page 5: Product Description And Features

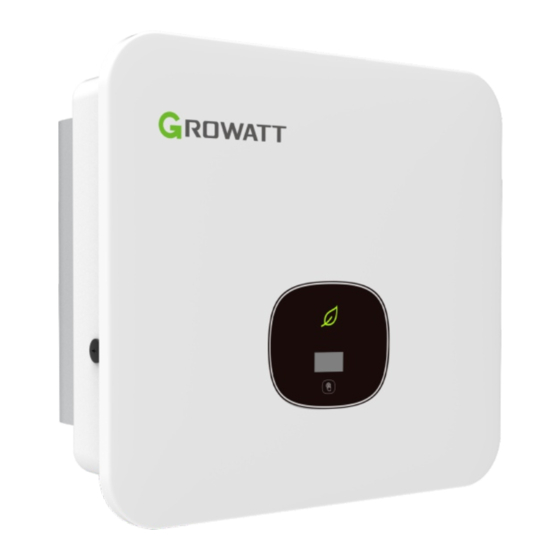

2.1 Product description and features 1.3.3 Glossary 2.1.1 Product description MOD TL3-XA series are the AC Coupled inverter which can store energy into battery with Abbreviation for "Alternating Current” or without existing grid-tied inverter system. MOD TL3-XA can be used to optimize selfconsumption、stored in the battery or feed into public grid. -
Page 6: Qualification Of Skilled Person
Persons with limited physical or mental abilities may only work al engineers; with the Growatt inverter following proper instruction and under constant supervision. Must keep the Growatt inverter away from 3.During installation,except for the wiring terminals,please do not move other parts inside the chassis;... -
Page 7: Product Overview
3 Product overview 3.2 Dimensions 3.1 Appearance overview B C D Fig 3.1 Fig 3.2 Size and weight: The appearance instructions are as follows: Name Name Model Height (H) Width (W) Depth (D) Weight Front panel COM port MOD 3-6KTL3-XA 387mm 425mm 147mm... -
Page 8: Unpacking Inspection
4 Unpacking inspection Installation 5 5.1 Basic installation requirements Before opening the inverter package,please check whether the outer package is damaged.After unpacking,please check whether the appearance of the inverter is The wall on which the inverter is mounted must be sturdy and can withstand the Ø... - Page 9 Fig 5.2 Installation dimensions for one inverter Fig 5.4 Installation Environment Ø Make sure that the inverter is installed in a suitable place and is not allowed to be installed in a closed box; Fig 5.5 Closed box Ø In order to reduce the inverter load and extend the life of the inverter due to direct sunlight, we recommend installing a awning.
-
Page 10: Install The Wall Mount
5.2 Install the wall mount 5.2.1 Install the wall mount To prevent electric shock or other damage, be sure to check the wall for power or other piping before opening the hole in the wall. Danger Fig 5.7 Specifications of wall mount Fig 5.9 Schematic diagram of inverter wall mounting Secure the wall mount as shown, do not let the screws flush with the wall, instead expose 2 to 4 mm. -
Page 11: Inverter Wiring
6 Inverter wiring 6.1 Security Inverter model Switch specification MOD 3000TL3-XA 10A(230/400V) There may be a high voltage in the conductive part of the inverter, which may cause electric shock.Therefore, when installing the MOD 4000TL3-XA 10A(230/400V) inverter,make sure that the AC and DC sides of the inverter are Danger MOD 5000TL3-XA 15A(230/400V) - Page 12 2. Lock the AC cable to the corresponding AC terminal. 6.3.2 Connecting the Bidirectional DC/DC Box Danger to life due to lethal voltages! T heInverterSide TheInverterSide Before connecting the Bidirectional DC/DC Box, ensure that the Box do not connect any power supply. NEVER connect or disconnect the BAT connectors under load.
-
Page 13: Grounding The Inverter
Ø Information details. This series inverter has integrated export limitation functionality. To use this function, you can connect the Growatt smart meter. For the detailed information, please contact with Growatt. Fig 6.9 6.5 Grounding the inverter The inverter must be connected to the AC grounding conductor of the power distribution grid via the ground terminal (PE) . - Page 14 Datasheet Item Parameter Datasheet Item Parameter Communication Method Dimension(L/W/H) 90*45*65mm (Without buckle) RS485(200m) (Communication Distance) Weight 174g Communication Protocol MODBUS-RTU Manual Language Chinese,English Address Range 10-19 General Data Environment Protection Rating IP20 Application 9600bps,19200bps(Default), Bound Rate Parameters 38400bps Mounting Type Standard 35mm Rail Update rate 100ms...
-
Page 15: Inverter Demand Response Modes (Drms)
6.7 Inverter demand response modes (DRMS) 6.7.3 Using the Power Control Interface for EU This series inverter has the function of demand response modes, We use 16-Pin socket as inverter DRMS connection. DRMS application description Ø Applicable to AS/NZS4777.2:2015 or Commission Regulation (EU) 2016/631. -
Page 16: Working Mode
Backup mode, please refer to 9.3.3 Backup Mode Setting. Note: 1.The max. power output at the off grid is 10kW when the battery power is enough. 2.The backup function is permitted to be commissioned only by professionals. The backup function requires a backup box provided by Growatt. - Page 17 Double touch Double touch Double touch Double touch Date Setting Date Setting Date Setting Date Setting Set OK 2019- 04-18 2019-04-18 20NN-04-18 20NN-NN-18 Growatt Country/Area Press Set OK Single touch Single Single Single PV Inverter VDE0126 touch touch touch Address...
- Page 18 9.2.4 Set inverter time the OLED, Single touch to switch display or make the number +1.Double touch to confirm the setting, as described below: Double touch Double touch ExportLimit ExportLimit Set OK Double touch Double touch Double touch Double touch Time Setting Time Setting Time Setting...
- Page 19 9.3.5 System mode setting 9.3.3 Backup mode setting (Off-grid models only） When the MOD XA series inverter is used in AC Coupled system, the system mode must be "System retrofit". Double touch Backup Box Double touch Backup Box Set OK Disable Disable Single touch...
-
Page 20: Communication And Monitoring
10 Communication and Monitoring Maintenance and Cleaning 11 10.1 COM port 11.1 Checking Heat Dissipation This series of inverters provide four RS485 ports. You can monitor one or more inverters If the inverter regularly reduces its output power due to high temperature, please via RS485. -
Page 21: Troubleshooting
LED indicator red will light up. Faults include system faults and inverter faults. 1.Unplug the U disk. In some cases, you may be advised to contact Growatt, please provide the following U disk over-current 2.Re-access U disk after shutdown. - Page 22 Warning Warning Description Suggest Description Suggest message message 1.Check if the meter is on. 1.Check the environment temperature of battery is Battery temperature Warning 401 Meter abnormal 2.Check the machine and the meter connection Warning 506 in the range of specification or not. outrange is normal.
- Page 23 Warning Error code Description Suggest Description Suggest message 1.After shutdown，Check the SP-CT connection. Error 306 CT LN Reversed Off-grid box 1.Restart inverter. Warning 608 2.If error message still exists,contact manufacturer. abnormal alarm 2.If error message still exists,contact manufacturer. Communication The off-grid box fan 1.Check the fan wiring after powering it down.
- Page 24 Error code Description Suggest Error code Description Suggest 1.Restart inverter. Battery terminals 1.Check battery terminals. Error 413 IGBT drive fault Error 505 2.If error message still exists,contact manufacturer. reversed 2.If error message still exists,contact manufacturer. Battery terminal 1.Restart inverter. 1.Check battery terminal. Error 414 EEPROM fault Error 506 open (only for...
-
Page 25: Manufacturer Warranty
Manufacturer warranty 14 Error code Description Suggest Please refer to the warranty card. Off-grid box grid- 1.Restart the off-grid box. Error 701 side relay failure 2.If error message still exists,contact manufacturer. Off-grid box 1.Restart the off-grid box. Error 702 generator access 2.If error message still exists,contact manufacturer. -
Page 26: Eu Declaration Of Conformity
•2014/30/EU Electromagnetic Compatibility Directive (EMC) DC Battery •2011/65/EU RoHS Directive and its amendment (EU)2015/863 Shenzhen Growatt New Energy Co. Ltd confirms that the Growatt inverters and ARK-XH HV Battery(7.68kWh~25.6kWh) Compatible battery(only) accessories described in this document are in compliance with the above mentioned APX HV Battery(5kWh~20kWh) EU directives. - Page 27 Model Model Specifications 3000TL3-XA 4000TL3-XA 5000TL3-XA 6000TL3-XA Specifications 7000TL3-XA 8000TL3-XA 9000TL3-XA 10KTL3-XA THDv THDv≤2%@Rload，THDv≤5%@RCDload DC Battery ARK-XH HV Battery(7.68kWh~25.6kWh) ≤300mV AVG. Compatible battery(only) APX HV Battery(5kWh~20kWh) Switch time <500ms Operating voltage range 600 V ~ 950 V Protection devices Max.operating current 18.5A AC surge protection Max.discharge power...
-
Page 28: Compliance Certificates
String Fuse protection Contect us 19 String monitoring AFCI protection If you have technical questions about our products, please contact the Growatt New General data Energy Service Hotline. We need the following information to provide you with the necessary help:...
