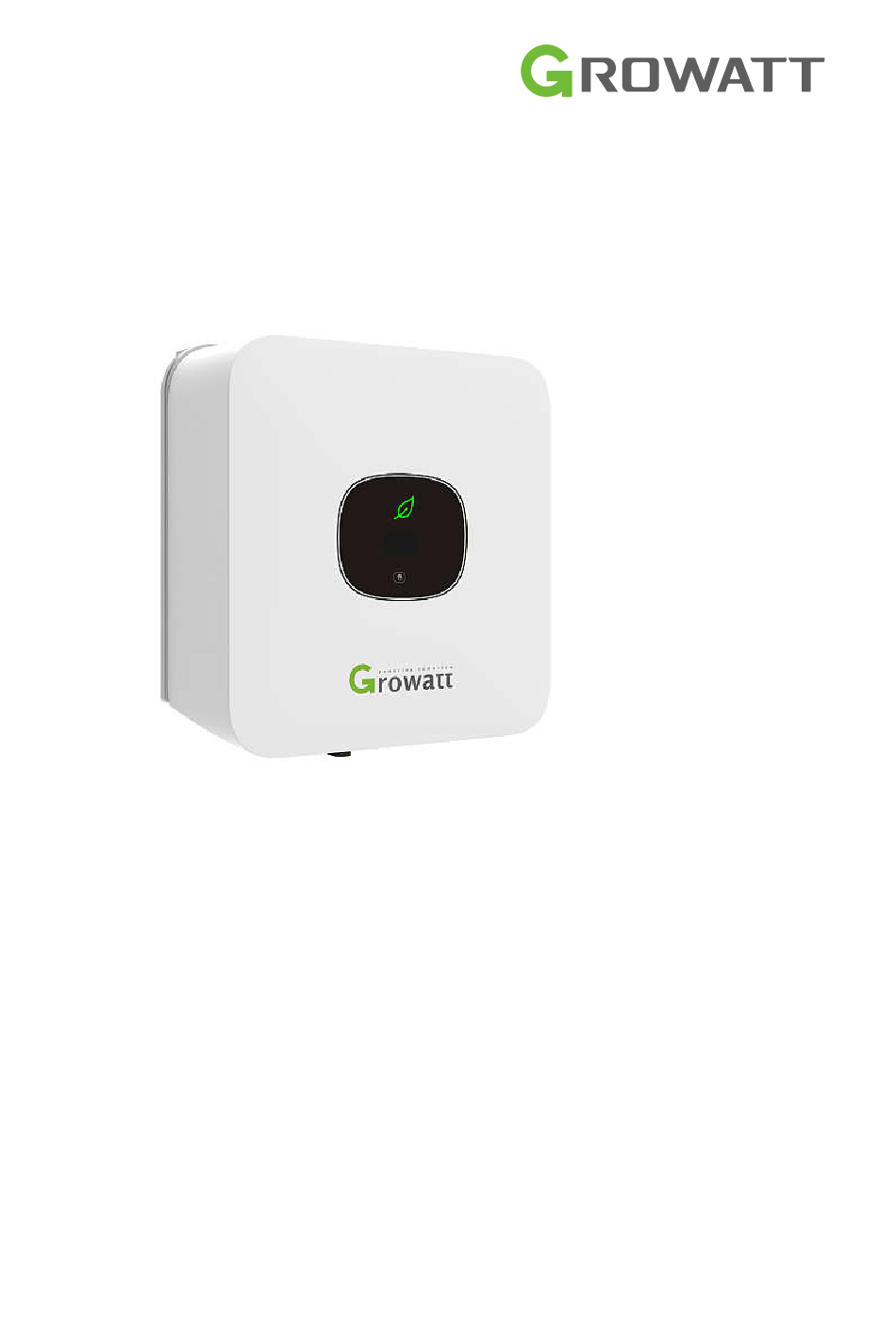

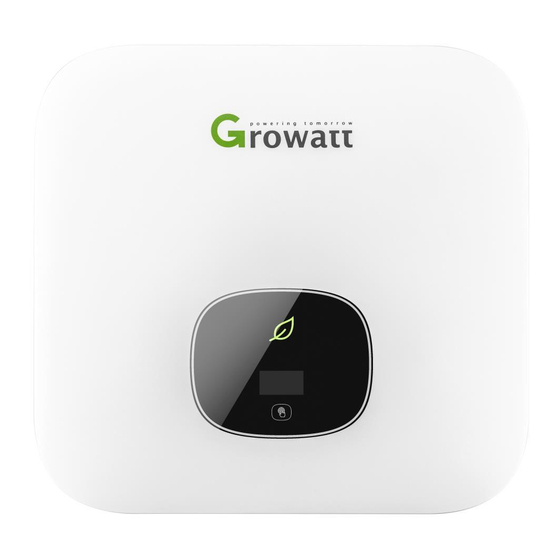

- Page 1 & Installation Operation Manual MIC 600TL-X MIC 750TL-X MIC 1000 TL-X MIC 1500 TL-X MIC 2000 TL-X MIC 2500 TL-X MIC 3000 TL-X MIC 3300 TL-X...
-
Page 2: Warranty Card
Please report the potentially defective devices to your supplier to identify. T: +61 2 8065 1298 H: 1800 476 928 Supplier is required to send the warranty claim form to Growatt or E: australia@ginverter.com authorized service partner with all the necessary information under Australian Consumer Law. - Page 3 Growatt factory warranty based on the 5 year term of Growatt factory warranty, please contact Growatt to get the price and an extending warranty For the inverter with this warranty card you purchased, you receive a card for apply. Growatt...
- Page 4 Index Index ..............................2 1 Notes on this manual ........................5 1.1 Validity ..........................5 1.2 Target Group ........................5 1.3 Additional information ......................5 1.4 Symbols in this document ....................6 1.4.1 Warnings in this document ..................6 1.4.2 Markings on this product..................6 1.5 Glossary ..........................
- Page 5 6.8.3 Using DRMS for EU ....................38 6.9 AFCI(Optional) ......................... 39 6.9.1 Arc-Fault Circuit Interrupter (AFCI) ..............39 6.9.2 Danger information ....................39 6.9.3 Operation step ......................39 6.10 Earth Fault Alarm ......................40 7 Commissioning ..........................40 7.1 Start the inverter ........................ 41 7.1.1 Touch control ......................
- Page 6 14 Technical Data ..........................57 14.1 Specification ........................57 14.2 DC &AC connector info ....................60 14.3 Torque ..........................60 14.4 Accessories ........................61 15 Compliance Certificates ......................61 16 Contact ............................61...
-
Page 7: Notes On This Manual
The manual and other documents must be stored in a convenient place and be available at all times. We assume no liability for any damage caused by failure to observe these instructions. For possible changes in this manual, GROWATT NEW ENERGY CO.,LTD accepts no responsibilities to inform the users. -
Page 8: Symbols In This Document
A warning describes a hazard to equipment or personnel. It calls attention to a procedure or practice, which, if not correctly performed or adhered to, could result in damage to or destruction of part or all of the Growatt equipment and/or other equipment connected to the Growatt equipment or personal injury. - Page 9 Risk of fire or explosion！ Risk of burns Operation after 5 minutes Point of connection for grounding protection Direct Current (DC) Isolation Switch Alternating Current (AC) Read the manual CE mark. inverter complies with requirements of the applicable CE guidelines. The inverter must not be disposed of with the household waste.
- Page 10 1.5 Glossary Abbreviation for "Alternating Current" Abbreviation for "Direct Current" Energy Energy is measured in Wh (watt hours), kWh (kilowatt hours) or MWh (megawatt hours). The energy is the power calculated over time. For example, your inverter operates at a constant power of 4600 W for half an hour and then at a constant power of 2300 W for another half an hour, it has fed 3450Wh of energy into the power distribution grid within that hour.
-
Page 11: Intended Use
2 Safety 2.1 Intended Use The unit converts the DC current generated by the photovoltaic (PV) modules to grid-compliant .MIC series alternating current and performs single-phase feed-in into the electricity grid inverters are built according to all required safety rules. Nevertheless, improper use may cause lethal hazards for the operator or third parties, or may result in damage to the units and other property. -
Page 12: Safety Instruction
（IEC62109-1,CE,VDE0126-1-1, AS4777,etc）; however, certain safety precautions must be observed when installing and operating this inverter. Read and follow all instructions, cautions and warnings in this installation manual. If questions arise, please contact Growatt’s technical services at +86 (0)755 2747 1942. -
Page 13: Electrical Connection Warnings
Persons with limited physical or mental abilities may only work with the Growatt inverter following proper instruction and under constant supervision. Children are forbidden to play with the Growatt inverter. Must keep the Growatt inverter away from children. ... -
Page 14: Product Description
create a shock hazard; to minimize occurrence of such conditions, comply with all corresponding safety symbols and markings present on the unit and in this manual. In special cases, there may still be interference for the specified application area despite maintaining standardized emission limit values (e.g. -
Page 15: Type Label
OLED TOUCH BUTTON PV INPUT + PV INPUT- DRM PORT AC OUTPUT VENTILATION VALVE COM PORT USB PORT *No dc switch for Australia models. **Only for EU and Australia market. Symbol on the inverter Symbol Description Explanation Touch button.We can switch the OLED display Touch symbol and set parameter by touching. - Page 16 More detail about the type label as the chart below: Model Name MIC 600TL-X 750TL-X 1000TL-X 1500TL-X 500V Max input DC voltage Max input DC current Start voltage MPP voltage range 50V~500V AC nominal voltage 230V AC grid frequency 50/60 Hz Max.
-
Page 17: Size And Weight
Max input DC current Start voltage MPP voltage range 65V~550V AC nominal voltage 230V AC grid frequency 50/60 Hz Max. apparent power 2000VA 2500VA 3000VA 3300 VA AC normal output current 8.7A 10.9A 14.3A Power factor 0.8leading…0.8lagging Environmental Protection IP65 Rating Operation Ambient -25...+60℃... -
Page 18: The Advantage Of The Unit
If there are a batch of inverters need to be stored, the maximum layers for original carton is ten. After long term storage, local installer or service department of GROWATT should perform a comprehensive test before installation. 3.5 The advantage of the unit ... -
Page 19: Installation
Object Description Quantity Inverter Mounting bracket Quick Guide Monitor(Optional) Signal connector DRED connector Self-tapping screws Safety-lock screw Plastic expansion pipe PV+/PV- terminal PV+/PV- metal terminal AC connector Uninstall signal or AC connector tool Uninstall PV tool *Only for EU and Australia market. 5 Installation... -
Page 20: Safety Instructions
Do not stay closer than 20 cm to the inverter for any length of time unless it is absolutely necessary. Growatt assumes no responsibility for compliance to EMC regulations for the complete system All electrical installations shall be done in accordance with the local and national electrical codes. -
Page 21: Selecting The Installation Location
Energy stored in this equipment’s DC link capacitors presents a risk of electric shock. Even after the unit is disconnected from the grid and photovoltaic panels, high voltages may still exist inside the PV-Inverter. Do not remove the casing until at least 5 minutes after disconnecting all power sources. - Page 22 Be sure that the inverter is out of the children’s reach. Don’t put any things on the inverter. Do not cover the inverter. Do not install the inverter near television antenna or any other antennas and antenna cables. ...
- Page 23 Ambient dimensions of series inverters There must be sufficient clearance between the individual inverters to ensure that the cooling air of the adjacent inverter is not taken in. If necessary, increase the clearance spaces and make sure there is enough fresh air supply to ensure sufficient cooling of the inverters.
-
Page 24: Mounting The Inverter With Bracket
5.3 Mounting the Inverter 5.3.1 Mounting the Inverter with bracket In order to avoid electrical shock or other injury, inspect existing electronic or plumbing installations before drilling holes. DANGER Fix the mounting bracket as the figure shows. Do not make the screws to be flush to the wall. -
Page 25: Fixed The Inverter On The Wall
5.3.2 Fixed the inverter on the wall Falling equipment can cause serious or even fatal injury, never mount the inverter on the bracket unless you are sure that the mounting frame is really firmly mounted on the wall after WARNING carefully checking. -
Page 26: Electrical Connection
on the right or left side firmly to prevent the inverter from being lifted off the bracket. 6 Electrical connection Decisive Voltage Class (DVC) indicated for ports Port Name Class DRMS USB&RS485 6.1 Safety Danger to life due to lethal voltages! High voltages which may cause electric shocks are present in the conductive parts of the inverter. -
Page 27: Wiring Ac Output
You must install a separate single-phase circuit-breaker or other load disconnection unit for each inverter in order to ensure that the inverter can be safely disconnected under load. We suggest you choice the AC breaker rating current in this table: MIC 600TL-X 10A/230V MIC 750TL-X 10A/230V... - Page 28 Insert the stripped and bared cable through pressure screw, seal ring, threaded sleeve in sequence, insert cables into connection terminal according to polarities indicates on it and tighten the screws firmly. Please try to pull out the wire to make sure the it’s well connected.
- Page 29 Push the threaded sleeve into the socket, Tighten up the cap on the terminal. Finally, Push or screw the threaded sleeve to connection terminal until both are locked tightly on the inverter.
- Page 30 5:To remove the AC output terminal, press the bayonet out of the slot with a small screwdriver and pull it out,or unscrew the threaded sleeve,then pull it out.
- Page 31 Wire suggestion length： Conductor cross Max. cable length section MIC 600&750 TL-X MIC 1000 TL-X MIC 1500 TL-X 2.0mm² 14AWG 3.3 mm² 12AWG 120m...
-
Page 32: Connecting The Second Protective Conductor
Max. cable length Conductor cross section MIC 2000 TL-X MIC 2500 TL-X MIC 3000 TL-X MIC 3300 TL-X 3.3 mm² 12AWG 5.2 mm² 10AWG 6.3 Connecting the second protective conductor In some installation countries, a second protective conductor is required to prevent a touch current in the event of a malfunction in the original protective conductor.For installation countries falling within the scope of validity of the IEC standard 62109, you must install the protective conductor on the AC terminal with a conductor cross-section of at least 10 mm²Cu.Or Install a second... - Page 33 If the inverter is not equipped with a DC switch but this is mandatory in the country of installation, install an external DC switch. The following limit values at the DC input of the inverter must not be exceeded: Types PV Max current Max voltage CAUTION...
-
Page 34: Connecting Signal Cable
6.5 Connecting signal cable This series inverter has one 8 Pin signal connector. Signal Cable Ports: Definition Definition This Pin is This Pin is no no signal signal RS485A1 RS485A2 Signal for Signal communication Smart Meter RS485B1 RS485B2 Procedure Step 1 Insert the stripped and bared cable through pressure screw, seal ring, threaded sleeve in sequence, insert cables into connection terminal according to number indicates on it and tighten the screws firmly. - Page 35 Step 2 Push the threaded sleeve into the socket, Tighten up the cap on the terminal. Step 3 Push the threaded sleeve to connection terminal until both are locked tightly on the inverter. Uninstall signal connector Step 1 Press the fasteners and pull it out from the inverter.
-
Page 36: Grounding The Inverter
Step 2 Insert the H type tool and pull it out from the socket. 6.6 Grounding the inverter The inverter must be connected to the AC grounding conductor of the power distribution grid via the ground terminal (PE) . Because of the transformerless design, the DC positive pole and DC negative pole of PV arrays are not permitted to be grounded. - Page 37 6.7 Active power control with smart meter or ripple control signal receiver The position of export limitation CT or Meter must between the Inverter & Load and gird. Multiple inverter combination is not suitable in Australia. The smart meter and CT can be used only up to 2000m altitude. Information This series inverter has integrated generation limitation control and export limitation functionality.
- Page 38 Overcurrent withstand 20Imax for 0.5s Pulse output 1 1000imp/kWh (default) 0.001(default) /0.01/0.1/1 kWh/kVArh Pulse output 2 (configurable) Display LCD with white backlit Max. Reading 999999kWh Environment Operating temperature -25℃ to +55℃ Storage and transportation -40℃ to +70℃ temperature 23℃ ± 2℃ Reference temperature 0 to 95%, Relative humidity...
-
Page 39: Inverter Demand Response Modes (Drms)
6.8 Inverter demand response modes (DRMS) This series inverter has the function of demand response modes, We use RJ45 as inverter DRED connection. DRMS application description Applicable to AS/NZS4777.2 or Commission Regulation (EU) 2016/6/31 DRM0, DRM5, DRM6, DRM7, DRM8 are available. Information Damage to the inverter due to moisture and dust penetration ... - Page 40 other active DRMs) 6.8.3 Using DRMS for EU Inverter – RRCR Connection 6.8.3.1 The following table describes the connector pin assignment and function: DRM Socket pin NO. Description Connect to RRCR Relay contact 1 input K1 – Relay 1 output Relay contact 2 input K2 –...
-
Page 41: Arc-Fault Circuit Interrupter (Afci)
Active power control and reactive power control are enabled separately. 6.9 AFCI(Optional) 6.9.1 Arc-Fault Circuit Interrupter (AFCI) In accordance with the National Electrical Code R, Article 690.11, the inverter has a system for the recognition of electric arc detection and interruption. An electric arc with a power of 300 W or greater must be interrupted by the AFCI within the time specified by UL 1699B. -
Page 42: Earth Fault Alarm
Wait for the display to go out. 6.9.3.2 Perform troubleshooting on the PV system: Check all PV strings for the correct open-circuit voltage. 6.9.3.3 After the fault is rectified, restart the inverter: Turn the DC & AC Disconnect to position "ON". 6.10 Earth Fault Alarm The inverter complies with AS/NZS 5033. -
Page 43: Start The Inverter
If the cable gland are not mounted properly, the inverter can be CAUTION destroyed due to moisture and dust penetration. All the warranty claim will be invalid. Requirements： The AC cable is correctly connected. The DC cable is correctly connected. ... - Page 44 Press the touch key 5S, the OLED shows Country setting is complete. When the Country setting is complete, the OLED display shows “Set Region” as below: set Region A,B or C when you choose Australia,but if you choose We can Newzealand the default Region is NZ.
-
Page 45: General Setting
7.2 General setting 7.2.1 Set inverter display language This series inverter provides multi languages. Single touch to switch different language. Double touch to confirm you setting. Set the language as described below: 7.2.2 Set inverter COM address The default COM address is 1.We can change COM address as described below: Single touch to sw make the number itch display or... - Page 46 Double touch to confirm you setting. 7.2.3 Set inverter date & time Single touch make the number Double touch to confirm you setting. Hold 5s recover defaut value.
-
Page 47: Advanced Setting
7.3 Advanced setting 7.3.1 Reset Country,Region and Power Quality Response Modes （PQRM） Single touch to sw make the number itch display or Double touch to confirm you setting. Input right password,you can change Country/Area,Region and PQRM settings. Reset Country Reset Region Reset PQRM... - Page 48 7.3.2 Generation & Export limitation control and Power Sensor setting Single touch to sw make the number itch display or Double touch to confirm you setting. Control type: SW stands for enabling software limit control function HW stands for enabling hardware limit control function Both stands for enabling software and hardware limit control function at the same time.
- Page 49 Under the permission given by your energy provider, the ratio of your system output power divide d by the rated power of the inverter is called Limit Rate.For instance,if the energy provider only ac cepts 1kVA/kW from your 2kW system, then the Limit Rate of 2kW inverter is 50.0%.
-
Page 50: Reset Factory
If you only want to c heck the load consumption function,you can choose Meter as Power sensor.CT function is not available for this inverter. 7.3.3 Reset factory Perform this operation with caution because all configured parameters except the current date,time, and model parameters will be restored to their factory defaults. -
Page 51: Start-Up And Shut Down The Inverter
7.4 Communications 7.4.1 RS485 This series inverter provides two RS485 ports. You can monitor one or more inverters by RS485.Another RS485 port is for smart meter(Export limitation functionality.). Definition Definition This Pin is This Pin is no no signal signal RS485A1 RS485A2 Signal for... -
Page 52: Maintenance,Repair And Cleaning
8.1 Start-Up the inverter 1. Connect the AC breaker of the inverter. 2. Turn on the dc switch, and the inverter will start automatically when the input voltage is higher than 70 V. 8.2 Turn-off the Inverter Do not disconnect the DC connectors under load. DANGER Turn-off the inverter step: 1. -
Page 53: Eu Declaration Of Conformity
An error message will be displayed on the OLED screen when a fault occurs. The faults consist of system fault and inverter fault. You may be advised to contact Growatt in some situation, please provide the following information. Information concerning the inverter: ... -
Page 54: System Fault
Error: 202 3. If the voltage of PV string is lower than 500/550V, contact Growatt. 1. Check if panel enclosure ground properly. 2. Check if inverter ground properly. 3. Check if the DC breaker gets wet. - Page 55 Error: 304 permissible range. Check grid frequency is complied with local grid standard. Restart inverter, if problem still exist, Contact Growatt. Auto Test Failed Restart inverter, repeat Auto Test, if Auto test didn’t pass. problem still exist, contact Growatt. Error: 407...
-
Page 56: Inverter Warning
Check the PV panel polarity. Restart the inverter. If the warning still Warning 203 PV1 or PV2 Circuit short exist, please contact Growatt customer service to replace the POWER board. 1.After shutdown,Check the dry Dryconnect wiring. Warning204 Dryconnect function abnormal 2.If the error message still exists, contact... - Page 57 Contact Growatt. If the ambient temperature of inverter is Error: 408 Over Temperature lower than 60°C, restart inverter, if error message still exists, contact Growatt. Restart inverter, if problem still exist, Error: 409 Bus over voltage Contact Growatt. Restart inverter, if problem still exist,...
-
Page 58: Manufacturer Warranty
12 Manufacturer Warranty Please refer to the warranty card. 13 Decommissioning 13.1 Dismantling the Inverter Disconnect the inverter as described in section 8 Remove all connection cables from the inverter. Danger of burn injuries due to hot enclosure parts! Wait 20 minutes before disassembling until the housing has cooled down. CAUTION Screw off all projecting cable glands. -
Page 59: Technical Data
14 Technical Data 14.1 Specification Model MIC 600TL-X MIC 750TL-X MIC 1000TL-X MIC 1500TL-X Specifications Input data(DC) Max. recommended PV 840W 1050W 1400W 2100W power(for module STC) Max. DC voltage 500V Start voltage Nominal voltage 360V Min. operating voltage MPP voltage range 50V-500V No. - Page 60 Overvoltage category PV:II AC:III Others:I Efficiency Max. efficiency 96.5% 97.4% 97.4% 97.4% Euro-eta 96.5% Protection devices DC reverse-polarity Integrated protection DC switch Integrated Type Ⅲ DC Surge protection Insulation resistance Integrated monitoring AC surge protection Type III AC short-circuit protection Integrated Ground fault monitoring Integrated...
- Page 61 Max. DC voltage 500V 550V Start voltage Min. operating voltage Nominal voltage 360V MPP voltage range 50V-500V 65V-550V No. of MPP trackers No. of PV strings per MPP trackers Max. input current per MPP trackers Max. short-circuit current per MPP trackers Output data(AC) Rated output power 2000W...
- Page 62 AC short-circuit protection Integrated Ground fault monitoring Integrated Grid monitoring Integrated Anti-islanding protection Integrated(Active Frequency Drift) Residual-current monitoring Integrated unit General data Dimensions (W / H / D) in 274*254*138 Weight 6.0 kg 6.2 kg Operating temperature range –25 °C ... +60 °C Noise emission (typical) ≤...
-
Page 63: Compliance Certificates
Shine LAN-X LAN monitor with USB interface Shipped to a Growatt service centre for repair, or repaired on-site, or exchanged for a replacement device of equivalent value according to model and age. The warranty shall not cover transportation costs in connection with the return of defective modules . - Page 64 www.ginverter.com Serviceline Tel: + 86 755 2747 1942 Email:service@ginverter.com...
