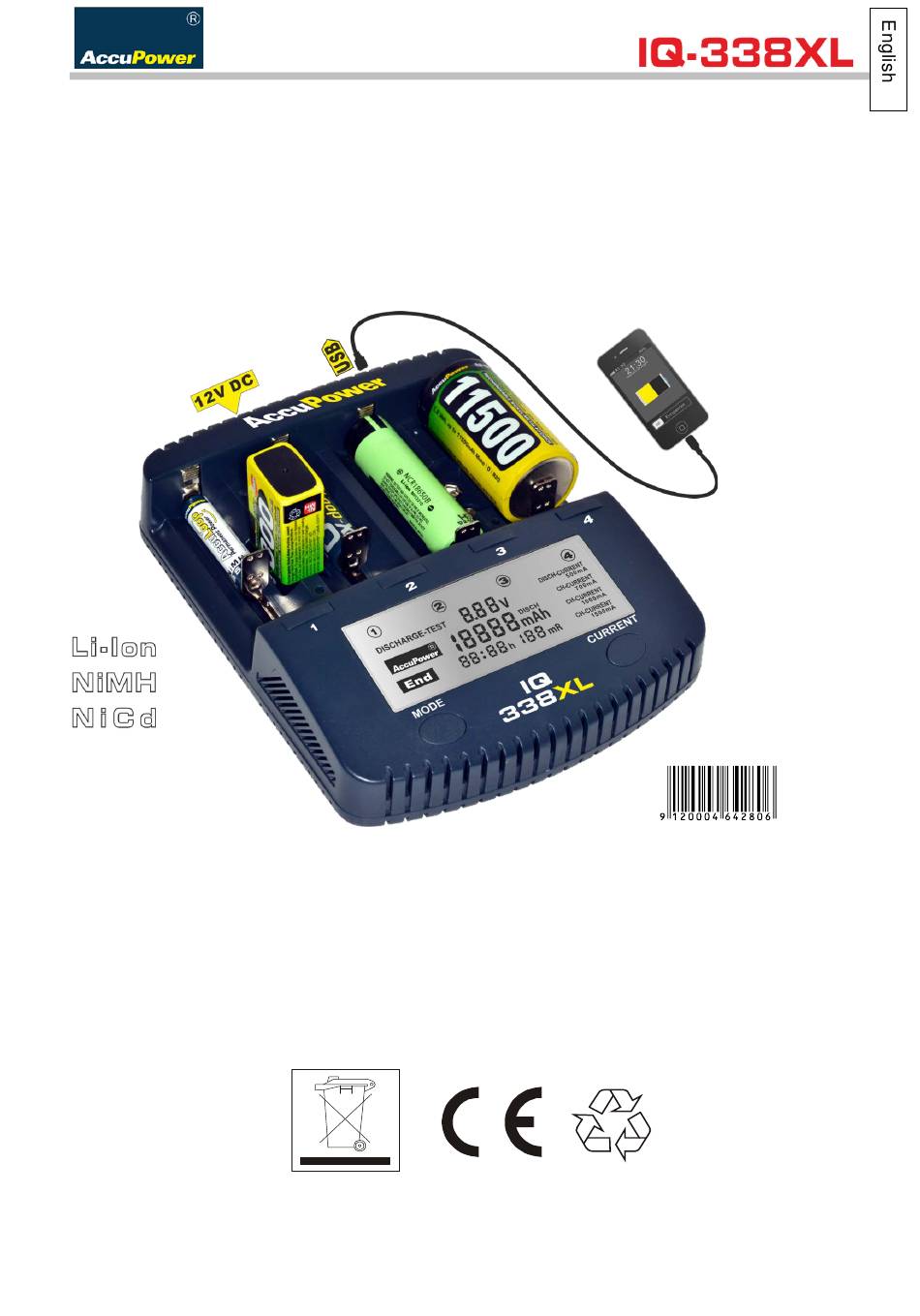

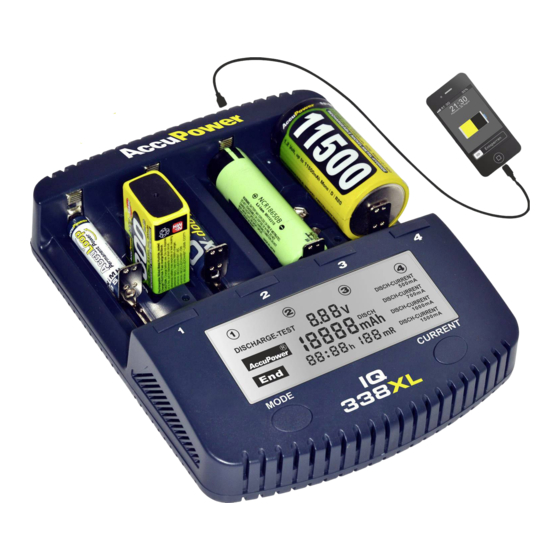

User Manual IQ338XL
Please read the manual carefully before using this charger.
We thank you that you have decided to purchase our intelligent charger.
Please follow the safety and care instructions in this manual, to be able to use this device
efficiently and safely.
Included in delivery:
• Charger IQ338XL
• Power supply
• User Manual
1/8
V06/17
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AccuPower IQ-338XL
Summary of Contents for AccuPower IQ-338XL
- Page 1 User Manual User Manual IQ338XL Please read the manual carefully before using this charger. We thank you that you have decided to purchase our intelligent charger. Please follow the safety and care instructions in this manual, to be able to use this device efficiently and safely.
- Page 2 User Manual Important notes: • Use the IQ338XL charger only with Li-Ion / LiMnO2 cells with 3.6V-3.7V and NiCd, NiMH cells with 1.2V rechargeable batteries. • With the IQ338XL you can automatically charge the following types of cells: Li-Ion: 33700, 26650, 26700, 22650, 18700, 18650, 17670, 18490, 18500, 17500, 17355, 16340 (RCR123), 14500, 10440.
- Page 3 User Manual Inputs: DC 12V / 3,5A Outputs: Six independent charging slots, two of them for 9V batteries One 5W USB output 5V / 1000mA Buttons: • Battery slot select buttons (1, 2, 3, 4) • Mode selection button (MODE) •...
- Page 4 User Manual Display: The following values are apparent on the display during a charging process: • Program (Charge, Charge Test, Discharge Test) • Battery Voltage (V) • Capacity (mAh) • Elapsed time (hh:mm) • Internal resistance (mR) • Charging current (mA) •...
- Page 5 User Manual label “CH” for charged and “DISCH” for discharged value over the unit “mAh”. Also the current is changing depending on the chosen current during the Charge Test. The used charging current is symbolized by „CH-CURRENT“ as well as the discharging current by „DISCH-CURRENT“.
- Page 6 User Manual Charge: If you like to charge one or more batteries, it distinguishes between same type or different cells: • Batteries of the same type Firstly, insert the batteries into the charger. The charger registers the inserted batteries and starts to identify the battery chemistry. By default, the charge process and a charging current of 500 mA gets selected automatically.
- Page 7 User Manual LCD-Background Lightning: • Eco-Mode: The LCD background lighting, which is activated by pressing any channel button, switches off automatically after approx. 30 seconds to prevent unnecessary energy consumption and is activated again by pressing any channel button again for 30 seconds. •...
- Page 8 Information and contents in this datasheet are for reference purpose only. They do not constitute any warranty or representation and are subject to change without notice. AccuPower Research, Development and Distribution Ltd. Pirchaeckerstrasse 27, A-8053 Graz, AUSTRIA Tel.: +43 (0) 316 26 29 11-10; Fax: +43 (0) 316 26 29 11-36 E-Mail: info@accupower.at...
