User Manual

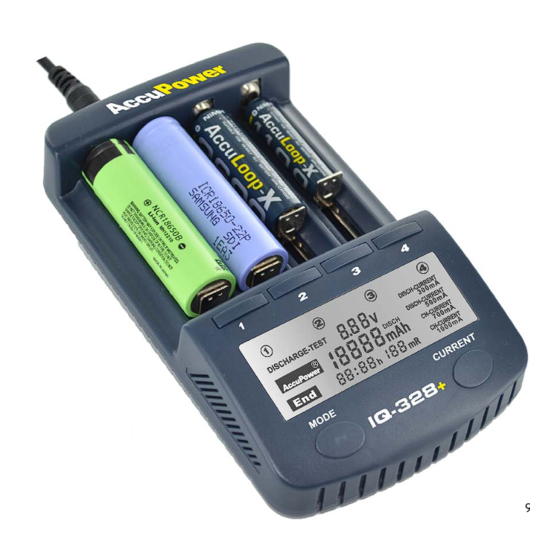

User Manual IQ328+
Please read the manual carefully before using this charger.
We thank you that you have decided to purchase our intelligent charger.
9 120004 642790
Please follow the safety and care instructions in this manual, to be able to use this device
efficiently and safely.
Included in delivery:
• Charger IQ328+
• Power supply
• User Manual
1/7
Update version-V2
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for AccuPower IQ328+
Summary of Contents for AccuPower IQ328+
-

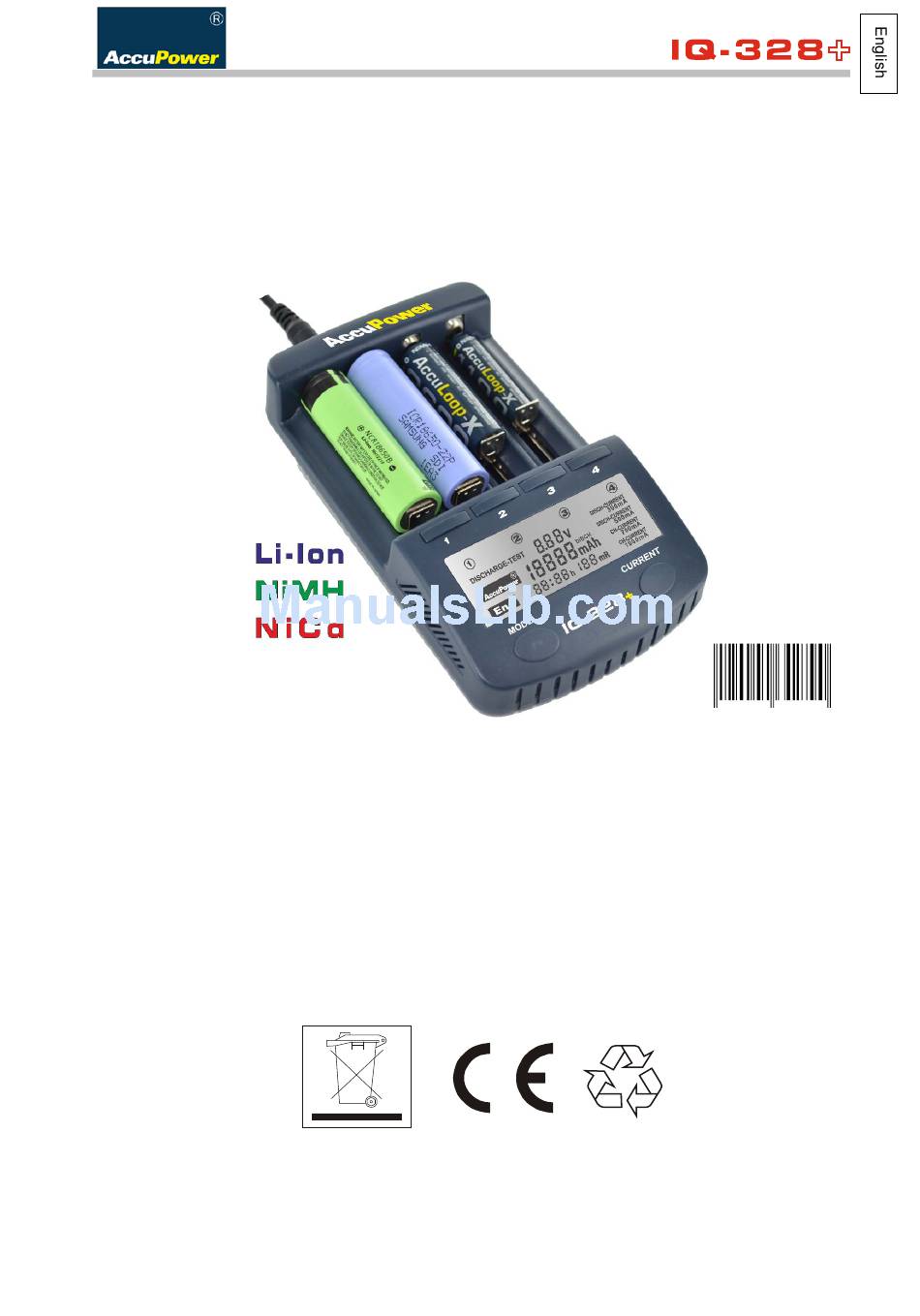

Page 1: User Manual
User Manual User Manual IQ328+ Please read the manual carefully before using this charger. We thank you that you have decided to purchase our intelligent charger. 9 120004 642790 Please follow the safety and care instructions in this manual, to be able to use this device efficiently and safely. - Page 2 User Manual Important notes: • Use the IQ328+ charger only with Li-Ion cells with 3.6V-3.7V and NiCd, NiMH cells with 1.2V rechargeable batteries. • With the IQ328+ you can automatically charge the following types of cells: Li-Ion: 26650, 26700, 22650, 18700, 18650, 17670, 18490, 18500, 17500, 17355, 16340, (RCR123), 14500, 14650, 10440 NiMh / NiCd: AA, AAA, A, Sub-C, C-Baby Do not use the charger with other types of batteries (for example: Alkaline or other...
- Page 3 User Manual Inputs: DC 12V / 2A Outputs: Four independent charging slots Buttons: • Battery slot select buttons (1, 2, 3, 4) • Mode selection button (MODE) • Charging current selection key CURRENT) Display: The following values are apparent on the display during a charging process: •...
- Page 4 User Manual Function Description: You can choose the following programs: Charge In this program you can charge the inserted batteries. Charge Test With „Charge Test” program you can measure the charged capacity of the batteries. The charger discharges the batteries in the first step, during the discharge process the LC Display starts to count the discharged capacity.
- Page 5 User Manual The measured capacities can be, as well as in the “Charge Test”, retrieved by pressing the channel button. If a high charging current is chosen, it can happen in some cases that the full charging capacity is not reached (this depends on the quality and condition of the battery).
- Page 6 User Manual Because the charger shows important extensive information to each slot, the whole LC Display will be used for the selected slot, if you like to see the information for another slot, you have to press the selection button of the slot you like to check. Changing the selected slot does not influence the charging program.
- Page 7 200g for charger unit AC Power supply: AC Input: 100-240V; DC Output: 12V /2A AccuPower Research, Development and Distribution Ltd. Pirchaeckerstrasse 27, A-8053 Graz, AUSTRIA Tel.: +43 (0) 316 26 29 11-10; Fax: +43 (0) 316 26 29 11-36 E-Mail: info@accupower.at...
