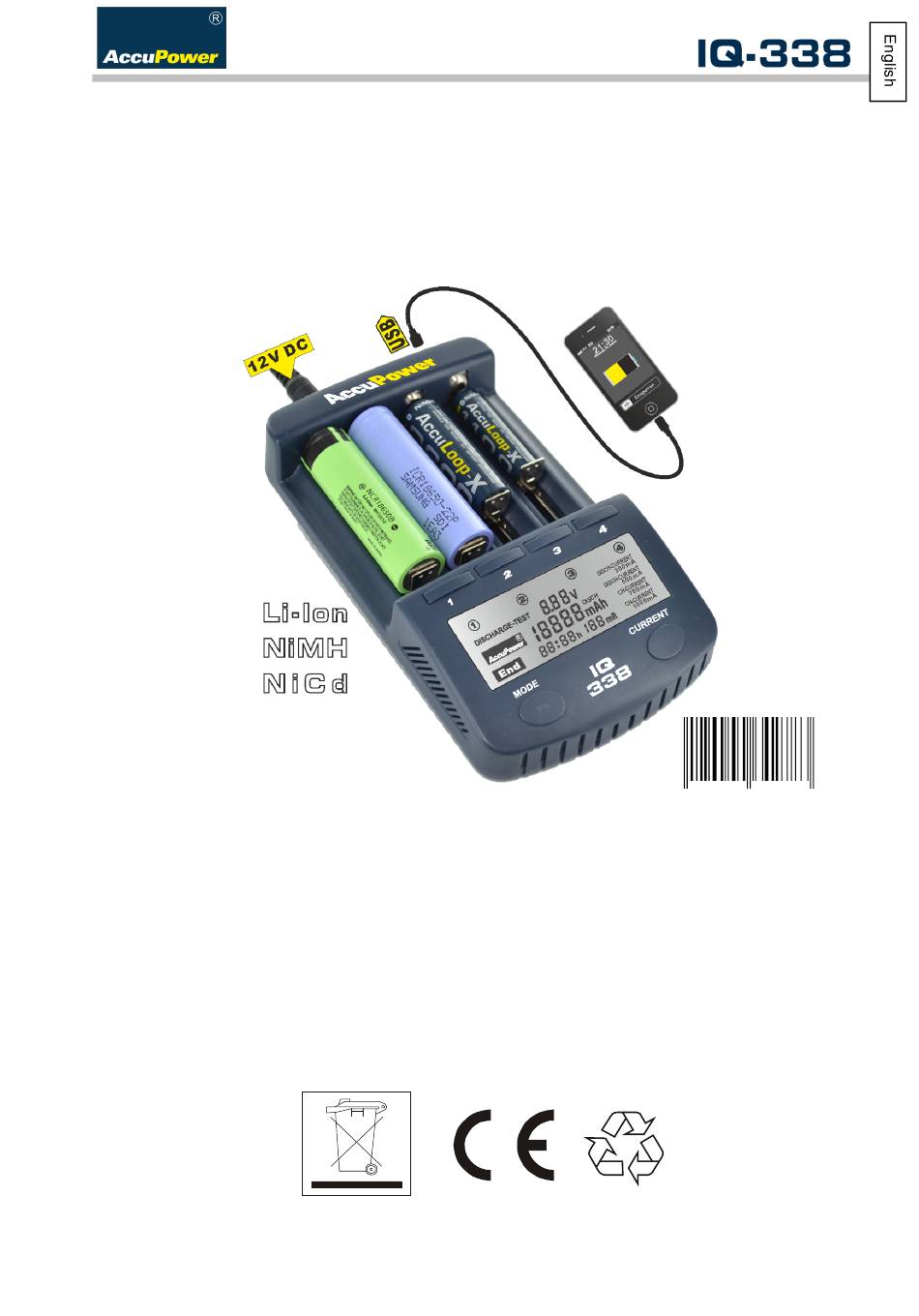

User Manual
User Manual IQ338
Please read the manual carefully before using this charger.
We thank you that you have decided to purchase our intelligent charger.
9 120004 642783
Please follow the safety and care instructions in this manual, to be able to use this device
efficiently and safely.
Included in delivery:
• Charger IQ338
• Power supply
• User Manual
1/7
Update version-V2
Advertisement
Table of Contents
Related Manuals for AccuPower IQ-338
Summary of Contents for AccuPower IQ-338
- Page 1 User Manual User Manual IQ338 Please read the manual carefully before using this charger. We thank you that you have decided to purchase our intelligent charger. 9 120004 642783 Please follow the safety and care instructions in this manual, to be able to use this device efficiently and safely.
- Page 2 User Manual Important notes: Use the IQ338 charger only with Li-Ion cells with 3.6V-3.7V and NiCd, NiMH cells with 1.2V rechargeable batteries. With the IQ338 you can automatically charge the following types of cells: Li-Ion: 26650, 26700, 22650, 18700, 18650, 17670, 18490, 18500, 17500, 17355, 16340, (RCR123), 14500, 10440 NiMH/NiCd: AA, AAA, A, Sub-C, C Baby ...
- Page 3 User Manual Inputs: DC 12V / 3A Outputs: Four independent charging slots One 5W USB output Buttons: Battery slot select buttons (1, 2, 3, 4) Mode selection button (MODE) Charging current selection key CURRENT) Display: The following values are apparent on the display during a charging process: ...
- Page 4 User Manual You can choose the following programs: Charge In this program you can charge the inserted batteries. Charge Test With „Charge Test” program you can measure the charged capacity of the batteries. The charger discharges the batteries in the first step, during the discharge process the LC Display starts to count the discharged capacity.
- Page 5 User Manual The measured capacities can be, as well as in the “Charge Test”, retrieved by pressing the channel button. If a high charging current is chosen, it can happen in some cases that the full charging capacity is not reached (this depends on the quality and condition of the battery).
- Page 6 User Manual If the charger started the selected program, it can only be interrupted through removing the cells from the slots or pressing the mode button for some seconds. Short pressing of the mode button cannot interrupt the running program. This is a protection against unintentional cancel the program.
- Page 7 200g for charger unit AC Power supply: AC Input: 100-240V; DC Output: 12V /3A AccuPower Research, Development and Distribution Ltd. Pirchaeckerstrasse 27, A-8053 Graz, AUSTRIA Tel.: +43 (0) 316 26 29 11-10; Fax: +43 (0) 316 26 29 11-36 E-Mail: info@accupower.at...
