FREEZER
USER'S MANUAL
PF 186 ENF

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF 186 ENF and is the answer not in the manual?

Questions and answers

Related Manuals for Philco PF 186 ENF

Summary of Contents for Philco PF 186 ENF

  • Page 1 FREEZER USER’S MANUAL PF 186 ENF...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user‘s manual. Copyright © 2020, Fast ČR, a. s. Revision 12/2021...

  • Page 3: Table Of Contents

    CONTENTS 1. SAFETY INFORMATION..........................2 2. INSTALLING YOUR NEW APPLIANCE .......................10 VENTILATION OF APPLIANCE ..............................10 LEVELING OF APPLIANCE................................10 DOOR HANDLE INSTALLATION ..............................11 TOOLS YOU WILL NEED .................................11 3. DESCRIPTION OF THE APPLIANCE ......................16 VIEW OF THE APPLIANCE ................................16 4. DISPLAY CONTROLS ..........................17 CONTROLLING THE TEMPERATURE............................17 MODE SUPER FREEZE ..................................17 TEMP °C .......................................18...

  • Page 4: Safety Information

    1. SAFETY INFORMATION FOR YOUR SAFETY AND CORRECT USAGE, BEFORE INSTALLING AND FIRST USING THE APPLIANCE,READ THIS USER MANUAL CAREFULLY, INCLUDING ITS HINTS AND WARNINGS. TO AVOID UNNECESSARY MISTAKES AND ACCIDENTS,IT IS IMPORTANT TO MAKE SURE THAT ALL PEOPLE USING THE APPLIANCE ARE THOROUGHLY FAMILIAR WITH ITS OPERATION AND SAFETY FEATURES.
  • Page 5 ● IF THE SUPPLY CABLE GETS DAMAGED, HAVE IT REPLACED BY A SPECIALIZED SERVICE CENTER IN ORDER TO AVOID DANGEROUS SITUATIONS. IT IS PROHIBITED TO USE THE APPLIANCE WHEN THE SUPPLY CABLE IS DAMAGED. ● CAUTION: IF YOUR MODEL IS EQUIPPED WITH AN ICE MAKER WITHOUT WATER SUPPLY CONNECTION, FILL IT WITH DRINKING WATER ONLY.
  • Page 6 THIS APPLIANCE IS INTENDED TO BE USED IN HOUSEHOLDS AND SIMILAR PREMISES, SUCH AS: – KITCHENETTES IN SHOPS, OFFICES AND OTHER WORKPLACES; APPLIANCES USED BY GUESTS IN HOTELS, MOTELS, AND OTHER ACCOMMODATION FACILITIES; APPLIANCES USED IN BED-AND- BREAKFAST FACILITIES; APPLIANCES USED IN CATERING AND OTHER SIMILAR NON-VENDING ENVIRONMENTS.
  • Page 7 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS CONTAINS COOLING GAS ISOBUTANE R600A REFRIGERANT THE REFRIGERANT ISOBUTENE (R600A) IS CONTAINED WITHIN THE REFRIGERANT CIRCUIT OF THE APPLIANCE,A NATURAL GAS WITH A HIGH LEVEL OF ENVIRONMENTAL COMPATIBILITY,WHICH IS NEVERTHELESS FLAMMABLE. DURING TRANSPORTATION AND INSTALLATION OF THE APPLIANCE,ENSURE THAT NONE OF THE COMPONENTS OF THE REFRIGERANT CIRCUIT BECOMES DAMAGED.
  • Page 8 WARNING : RISK OF FIRE / FLAMMABLE MATERIALS IF THE REFRIGERANT CIRCUIT SHOULD BE DAMAGED: - AVOID OPENING FLAMES AND SOURCES OF IGNITION. - THOROUGHLY VENTILATE THE ROOM IN WHICH THE APPLIANCE IS SITUATED. IT IS DANGEROUS TO ALTER THE SPECIFICATIONS OR MODIFY THIS PRODUCT IN ANY WAY.
  • Page 9 5. IF THE POWER PLUG SOCKET IS LOOSE, DO NOT INSERT THE POWER PLUG. THERE IS A RISK OF ELECTRIC SHOCK OR FIRE. 6. YOU MUST NOT OPERATE THE APPLIANCE WITHOUT THE INTERIOR LIGHTING LAMP COVER. 7. THE FRIDGE IS ONLY APPLIED WITH POWER SUPPLY OF SINGLE PHASE ALTERNATING CURRENT OF 220~240V/50HZ.
  • Page 10 ● DO NOT PLACE CARBONATED OR FIZZY DRINKS IN THE FREEZER COMPARTMENT AS IT CREATES PRESSURE ON THE CONTAINER,WHICH MAY CAUSE IT TO EXPLODE,RESULTING IN DAMAGE TO THE APPLIANCE. ● FROZEN FOOD CAN CAUSE FROST BURNS IF CONSUMED STRAIGHT FROM THE FREEZER COMPARTMENT. ●...
  • Page 11 INSTALLATION IMPORTANT! ● FOR ELECTRICAL CONNECTION CAREFULLY, FOLLOW THE INSTRUCTIONS GIVEN IN THIS MANUAL. UNPACK THE APPLIANCE AND CHECK IF THERE ARE DAMAGES ON IT. ● DO NOT CONNECT THE APPLIANCE IF IT IS DAMAGED. REPORT POSSIBLE DAMAGES IMMEDIATELY TO THE PLACE YOU BOUGHT IT.

  • Page 12: Installing Your New Appliance

    2. INSTALLING YOUR NEW APPLIANCE Before using the appliance for the first time, you should review the following tips. Ventilation of appliance In order to improve efficiency of the cooling system andsave energy,itis necessary to maintaingood ventilation around the appliance for the dissipation of heat.For this reason,sufficientclearspaceshould be available around the refrigerator.

  • Page 13: Door Handle Installation

    Door handle installation Take the handle and screws out of the bag, remove the handle covers from the handle, position the handle on the right side of door, fix it by screws and cover the handle covers. The side at which the door opens can be changed, from the right side (as supplied) to the left side, if the installation site requires.
  • Page 14 If required you may lay the refrigerator on its back in order to gain access to the base, you should rest it on soft foam packaging or similar material to avoid damaging the backboard of the refrigerator. To reverse the door, the following steps are generally recommended. Use a putty knife or thin-blade screwdriver to prize the screw hole cover which is at the top left corner of the refrigerator, and the upper hinge cover which is at the top right corner of the refrigerator.
  • Page 15 Place it on a smooth surface with its panel upwards. Loose screw and pard , then install them to the left side and tighten securely. Stop block Self-tapping screw Lay the refrigerator on soft foam packaging or similar material. Remove both adjustable bottom feet parts, and the lower hinge part by unscrewing the special flange selftapping screws.
  • Page 16 Lower hinge part (right) Adjustable bottom feet part Self-tapping screws Replace the lower hinge part to the left side and fixing it with the special flange self-tapping screws. Replace the adjustable bottom feet parts to another side and fixing it . Transfer the door to the property position, adjust the lower hinge part, make the hinge axis into the lower hole of the door.
  • Page 17 Upper hinge part 10. Install the screw hole cover on the top right corner of the refrigerator. Install the upper hinge cover (which is in the plastic bag) on the left corner. Put the other upper hinge cover into the plastic bag. Screw hole Upper hinge part (left) cover...

  • Page 18: Description Of The Appliance

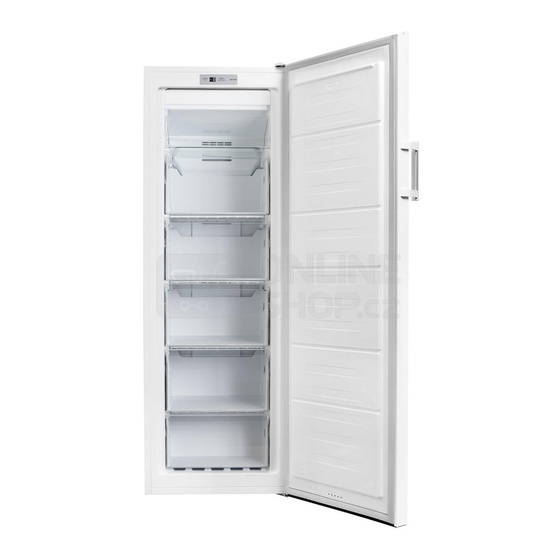

    3. DESCRIPTION OF THE APPLIANCE View of the appliance 1 Control panel 8 Lower drawer 2 Wind channel 9 Left adjustable bottom foot 3 Flap 0 Right adjustable bottom foot 4 Glass shelf Door handle 5 Middle drawers • Due to unceasing modification of our products, your appliance may be slightly different from this instruction manual, but its functions and using methods remain the same. • To get the best energy efficiency of this product, please place all shelves, drawers on their original position as the illustration above.

  • Page 19: Display Controls

    4. DISPLAY CONTROLS The control panel that controls the temperature inside the freezer compartment is located inside the freezer. Use your appliance according to the following control regulations, your appliance has the corresponding functions and modes as the control panel showed in the picture below. When the appliance is powered on for the first time, the backlighting of the icons on display panel starts working.

  • Page 20: Temp °C

    TEMP °C • You can press the “TEMP °C/Super freeze 3 ” button to activate the mode to control the freezer temperature. When you press the button continuously, the temperature will be set as the following sequence. Door Alarm • If the door of freezer is open for over 1 minutes, the door alarm will sound and the indicator begin to flash. The buzzer will stop alarming by press "ALARM" button and the indicator will be on but will stop flashing. •...

  • Page 21: Using Your Appliance

    5. USING YOUR APPLIANCE This section tells you how to use most of the useful features. We recommend that you read through them carefully before using the appliance. Using your freezer compartment The freezer compartment is suitable for storage of food which need to be frozen, including meat, fish, ice cream, etc..

  • Page 22: Helpful Hints And Tips

    6. HELPFUL HINTS AND TIPS Energy saving tips We recommend that you follow the tips below to save energy. • Try to avoid keeping the door open for long periods in order to conserve energy. • Ensure the appliance is away from any sources of heat (Direct sunlight, electric oven or cooker etc) • Don’t set the temperature colder than necessary. • Don’t store warm food or evaporating liquid in the appliance. • Place the appliance in a well ventilated, humidity free, room. Please refer to Installing your new appliance chapter. • If the diagram shows the correct combination for the drawers, crisper and shelves, do not adjust the combination as this is designed to be the most energy efficient configuration. Hints for freezing •...

  • Page 23: Cleaning And Care

    7. CLEANING AND CARE For hygienic reasons the appliance (including exterior and interior accessories) should be cleaned regularly(at least every two months). The appliance must not be connected to the mains during cleaning as there is a danger of electrical shock! Before cleaning switch the appliance off and remove the plug from the mains socket.

  • Page 24: Troubleshooting

    8. TROUBLESHOOTING If you experience a problem with your appliance or are concerned that the appliance is not functioning correctly, you can carry out some easy checks before calling for service,please see below. Don’t try to repair the appliance yourself. If the problem persists after you have made the checks mentioned below, contact a qualified electrician, authorized service engineer or the shop where you purchased the product.
  • Page 25 Problem Possible causes & Solutions Check that the air outlets are not blocked by food and ensure food is placed A layer of frost occurs within the appliance to allow sufficient ventilation. Ensure that door is fully in the compartment. closed. To remove the frost, please refer to the “Cleaning and care” chapter.

  • Page 26: Storage Instructions

    Storage instructions To avoid contamination of food, please respect the following instructions - Opening the door for long periods can cause a significant increase of the temperature in the compartments of the appliance. - Clean regularly surfaces that can come in contact with food and accessible drainage systems. - Store raw meat and fish in suitable containers in the refrigerator, so that it is not in contact with or drip onto other food.
  • Page 27 Chill -2~+3 Fresh/frozen pork, beef, chicken, freshwater aquatic products, etc. (7 days below 0 °C and above 0 °C is recommended for consumption within that day, preferably no more than 2 days). Seafood (less than 0 for 15 days, it is not recommended to store above 0 °C).

  • Page 28: Product Information Sheet

    9. PRODUCT INFORMATION SHEET Product Information Sheet COMMISSION DELEGATED REGULATION (EU) 2019/2016 Supplier's name or trademark: PHILCO Supplier's address: PHILCO, FAST ČR, a.s. U Sanitasu 1621 Říčany 251 01, Czech Republic Model identifier: PF 186 ENF Type of refrigerating appliance: Freezer Low-noise appliance:...
  • Page 29 Minimum duration of the guarantee offered by the manufacturer: 24 months Additional information: Weblink to the manufacturer's website, where the information in point4(a) Annex of Commission Regulation (EU) 2019/2019 is found: www.philco.cz * A (highest efficiency) to G (lowest efficiency) EN - 27 Copyright ©...

  • Page 30: Technical Information

    When contacting our authorized service, have the model designation, serial number and defect description available. To download documents, visit www.philco.cz. To report a defect and obtain additional service information, visit https://philco.cz/podpora-a-servis. Subject to change without notice. EN - 28 Copyright © 2020, Fast ČR, a. s.

  • Page 31: Instructions And Information Regarding The Disposal Of Used Packaging Materials

    INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
  • Page 32 NOTES/POZNÁMKY/NOTATKI/MEGJEGYZÉS...
  • Page 33 Výrobce/Manufacturer: Fast ČR, a.s. U Sanitasu 1621 Říčany 251 01, CZECH REPUBLIC Distributor: FAST PLUS, a.s. Na pántoch 18 831 06 Bratislava, SLOVAKIA Distributor: FAST POLAND Sp. z o. o. Kwietniowa 36 05-090 Wypędy, POLAND Distributor: FAST HUNGARY Kft. H-2310 Szigetszentmiklós Kántor utca 10, HUNGARY is a pending or registered trademark of Electrolux Home Products, Inc.
