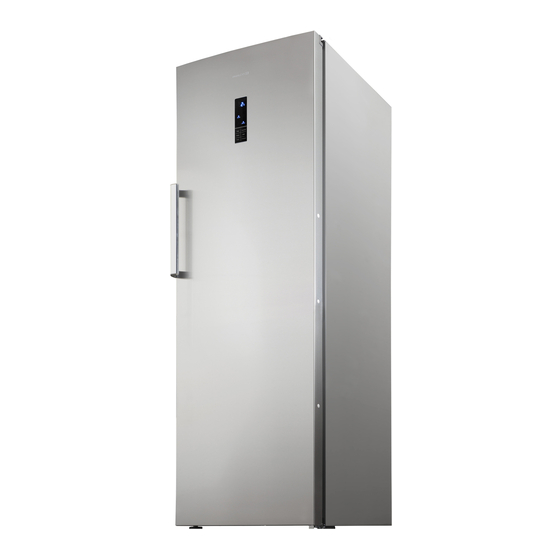

UPRIGHT FREEZER
USER'S MANUAL
PF 2602 NX

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PF 2602 NX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Philco PF 2602 NX

Summary of Contents for Philco PF 2602 NX

  • Page 1 UPRIGHT FREEZER USER'S MANUAL PF 2602 NX...
  • Page 2 Dear customer, Thank you for buying a PHILCO brand product. So that your appliance serves you well, please read all the instructions in this user's manual.

  • Page 3: Table Of Contents

    CONTENTS PART 1: BEFORE PUTTING INTO OPERATION ....................2 • Safety notices ....................................2 • Safety instructions for gas R600a ..............................4 PART 2: DESCRIPTION OF THE DEVICE ......................5 PART 3: INSTALLATION ............................ 6 • Transport and unpacking ................................6 • Placement ......................................7 •...

  • Page 4: Part 1: Before Putting Into Operation

    PART 1: BEFORE PUTTING INTO OPERATION Safety notice Symbols: General advice for the optimal operation of the appliance General dangers Hot surfaces Before you put the appliance into operation • Carefully study the user's manual and installation instructions before installing and using the appliance! This user's manual includes important information regarding the installation, operation and maintenance of the appliance.
  • Page 5 Do not place food inside the freezer containing fl ammable propulsion gases (e.g. sprays) and no explosive, contaminating or volatile substances. There is a danger of explosion! Do not store liquids inside bottles and cans (especially beverages containing carbon dioxide) inside the freezer compartment.

  • Page 6: Safety Instructions For Gas R600A

    Technical safety The appliance contains a cooling gas, ISOBUTHAN (R600a). Only transport or move the appliance with the utmost care, prevent excessive impacts and shaking to prevent damaging the appliance. If the cooling circuit becomes damaged and the cooling gas may be escaping, there is a risk of an explosion, which may be ignited by a spark or fl ame.

  • Page 7: Part 2: Description Of The Device

    PART 2: DESCRIPTION OF DEVICE Outer case 11. Levelling feet Cover 12. LED light Ice drawer. 13. Narrow freezer drawer Drawer with roller wheels 14. Glass shelf Top freezer drawer 15. Shelf holder Middle freezer drawer 16. Top compartment Handle 17.

  • Page 8: Part 3: Installation

    PART 3: INSTALLATION Transport and unpacking If the appliance is transported in a horizontal position the oil from the compressor may leak into the cooling circuit. For this reason, allow the appliance to rest in a vertical position for 12 hours before turning it on, so that the oil fl ows back into the compressor.

  • Page 9: Placement

    Installation location The installation location of the appliance must meet the requirements in the paragraph "Operating conditions" and must have a stable fl oor with a load bearing capacity corresponding to the weight of the appliance. Furthermore you must maintain distances and dimensions of the appliance, so that correct operation is ensured: Top part at least 20 cm;...

  • Page 10: Cleaning Before Use

    Recommendation: We recommend that suffi cient space of 135° is kept in the front part for the opening of the door – see the following picture. 50 mm 50 mm 1025 mm Cleaning before use Check that you have removed from the appliance all adhesive tape used to hold accessories . Then clean all the inside parts using lukewarm water with a neutral cleaning agent, vinegar or sodium carbonate –...

  • Page 11: Installing The Handles

    Installing the handles For easier transport, the handles are supplied separately in a plastic bag and it is necessary to install them. Remove the screw covers on the left side of the door and place them in the plastic bag. Place the handle on to the left part of the door. The axis of the screw holes in the handle and the holes in the door should be aligned as shown in the picture below.
  • Page 12 To change the door opening direction, proceed as follows. Stand the appliance upright. Open part 1 in the top part of the appliance from the left side and then remove part 3 and fi nally part 4 from the top part in the same manner. Remove part 2 and put it back into the plastic bag. 1 Top cover 2 Top hinge cover (left) 3 Top cover of the top door...
  • Page 13 Disconnect electrical connector 1 and electrical connector 2 and then remove part 3. Remove screws 1, release cables 2 and remove part 3. Special self-tapping screws Grounding wire Top hinge part NOTE: During step 4, hold the door with your hand so that it does not fall off . Remove the door and place it on a soft surface with the front part facing upwards.
  • Page 14 Handle covers Special self-tapping screws Handle Screw hole covers Door holder Stopper Self-tapping screws NOTE: Remove the handle cover as shown on the picture: bend the top wing and remove the top clip from the handle and also on the other side, then remove the handle cover. clip NOTE: Install the handle covers as shown in the picture: fi rst secure the clip, then close the cover from the inner...
  • Page 15 clip Lay the appliance down fl at, remove part 3 and loosen screw 4. Remove part 2 and part 1. washer 1 Bottom hinge (left) Note: The washer may 2 Fixed plate of the front foot stick to the bottom 3 Levelling feet door.
  • Page 16 Screw out the top hinge, turn it over and secure it on the other side. Then put it aside for further use. 10. Exchange the wires on both sides of the appliance. 11. Place the top door in the correct position, set part 1 and the top door, move the connecting wire 2 into the holes in the top part of the door from left to right and then secure part 1 and wire 2 with screws 3.
  • Page 17 12. Connect the power supply connector 1 according to the connection in step 3 and then install part 2 (it is found in the plastic bag). Top hinge cover (right) 13. Turn part 1 by 180° and install it in the left corner of the door, then secure part 2. (both were removed in step 2.) 14.

  • Page 18: Installation Of Freezers As A Pair

    15. Install part 1, connect connector 2 and then install part 3. Installation of freezers as a pair • Your freezer may be installed as a pair. • Install according to the instructions on the picture. EN - 16 Copyright © 2013, Fast ČR, a. s. 12/2013...

  • Page 19: Part 4: Setting The Temperature

    PART 4: SETTING THE TEMPERATURE Display and indicator lights on the display The appliance is controlled by means of the display and the indicator lights on the display; the appliance is equipped with corresponding functions and modes as shown on the displays on the pictures below. As soon as the appliance is turned on for the fi rst time, a backlit icon on the display will remain in operation.
  • Page 20 4. Sound alarm If the sound alarm is activated, the "Alarm" icon will be lit and a signal will be made. Press the "Alarm" button to cancel the sound alarm and the "Alarm" indicator light will turn off and the alarm will stop. Door alarm If the freezer door is left open for longer than 2 minutes, an alarm will be sounded.
  • Page 21 Freezer drawers They are used for storing food such as meat, fi sh, ice cream, etc. Small storage box (inside) It is used for storing small amounts of food, which needs to be frozen such as ravioli, dumplings, frozen desserts, etc.
  • Page 22 Ice drawer. If you are using the ice drawer for the fi rst time or if you have not used it for a long time, it is necessary to clean it fi rst. The ice drawer is used for making and storing ice cubes. It is necessary to proceed as follows. Pull the ice drawer out of the holder.

  • Page 23: Part 5: Arrangement Of Food

    PART 5: ARRANGEMENT OF FOOD • Appropriate wrapping materials for food are plastic containers, aluminium foil, polyethylene freezing bags, etc. • Always allow hot dishes to cool down before placing them into the freezer. • Open the door only for a short time so that the inside area of the freezer is not heated. This saves energy. •...

  • Page 24: Chart On Storing Food In The Freezer

    Important information • Place only properly wrapped food into the freezer. • When storing deep frozen food intended for immediate consumption, note the expiry date marked by the manufacturer. • Remember that only quality fresh food is suitable for freezing. •...

  • Page 25: Part 6: Defrosting And Regular Maintenance

    PART 6: DEFROSTING AND REGULAR MAINTENANCE For hygiene reasons, it is necessary to regularly clean the appliance (including the outside and inside accessories) at least once every two months. CAUTION! The appliance must not be connected to the power socket during cleaning. Danger of injury by electric shock! Before cleaning the appliance, disconnect the power plug from the power socket.
  • Page 26 CAUTION! • Do not use sharp objects for the removal of frozen food or ice, the wall of the freezer could be scratched. • When defrosting a freezer never use electric appliances such as hair fans, hot air fans, steam cleaners, de-icing sprays or open fl ames (e.g.
  • Page 27 Please be aware: Compressor The compressor is controlled by the thermostat, which is set by the temperature dial, and turns itself on automatically when temperature inside the appliance is exceeded and then turns itself off as soon as it again reaches this temperature.

  • Page 28: Part 7: What Should I Do When

    PART 7: WHAT SHOULD I DO WHEN... If you notice problems with your appliance or if you fi nd that the appliance is not working properly, you can remedy some of the most common faults yourself prior to contacting an authorised service centre. Check the appliance and proceed according to the instructions below before contacting an authorised service centre.
  • Page 29 The temperature The door was opened for a longer period of time or were opened too frequently, inside the freezer or the door was not closed due to an obstruction; or the appliance was installed is too high. without suffi cient ventilation being provided on the sides, top and underside. The temperature Increase the temperature - further instructions in a previous part of this inside the freezer...

  • Page 30: Part 8: Information Sheet

    PART 8: INFORMATION SHEET Information Sheet INFORMATION SHEET: Philco Philco brand: Brand Philco PF 2602 NX Product number Type of appliance Energy effi ciency class (A... low electricity consumption to G high electricity consumption) Electricity consumption per 365 days Total available volume: l of which: refrigerator part l  ...
  • Page 31 EN - 29 Copyright © 2013, Fast ČR, a. s. 12/2013...
  • Page 32 INSTRUCTIONS AND INFORMATION REGARDING THE DISPOSAL OF USED PACKAGING MATERIALS Dispose of packaging material at a public waste disposal site. DISPOSAL OF USED ELECTRICAL AND ELECTRONIC APPLIANCES The meaning of the symbol on the product, its accessory or packaging indicates that this product shall not be treated as household waste.
