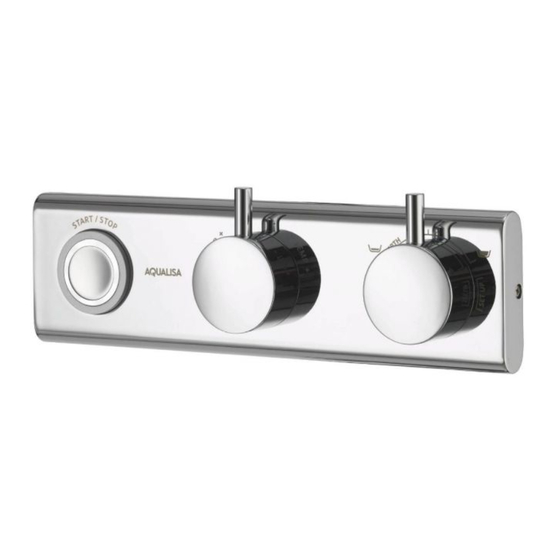

Summary of Contents for Aqualisa HiQu HQD1005
- Page 1 HiQu Digital Bath Installation guide HiQu Digital Bath installation instructions Page 1...
- Page 2 HiQu Digital Bath HiQu Digital Digital Bath HiQu Digital Bath installation instructions Page 2...
- Page 3 Components (HP/Combi) Literature not shown. Components (Gravity Pumped) Literature not shown. HiQu Digital Bath installation instructions Page 3...
-
Page 4: Safety Information
Important information Safety information This product must be installed by a competent person in accordance with all relevant current Water Supply Regulations. ALL PRODUCTS REQUIRING AN ELECTRICAL CONNECTI0N MUST BE INSTALLED BY A QUALIFIED PERSON FOLLOWING THE LATEST REVISION OF BS 7671 (WIRING REGULATIONS) AND CERTIFIED TO CURRENT BUILDING REGULATIONS. - Page 5 Regulations prior to connection of the product. After installation Familiarise the end user with the HiQu Digital bath operation and hand them this guide. Complete and post the guarantee card or register online at www.aqualisa.co.uk HiQu Digital Bath installation instructions Page 5...
- Page 6 Installation instructions This product must be installed by a competent person in accordance with the relevant current Water Supply Regulations. In addition to the guide below it is essential that the written in- structions overleaf are read and understood and that you have all the necessary components (shown overleaf) before com- mencing installation.
- Page 7 Isolation valves are supplied with the Dig- ital processor and must be fitted on both inlets and the blended water outlet. All pipe work should be run in 15mm pipe. All pipe work should be supported. For exter- nally pumped gravity fed installa- tions, 22mm pipe work should be run...
- Page 8 Place the Digital processor on a solid mounting surface, and place the fixing feet into suitable positions. Mark then drill and prepare suitable fixings before securing the processor to the mounting surface using the screws provided. Flush through both hot and cold supply pipes. The maximum hot water inlet temperature must be no more than 65˚C.
- Page 9 Undo the fixing screw, remove the controller assembly away from the back plate and set aside. Place the bath control back plate onto the finished wall surface in the desired location and mark the fixing and data cable entry points. Care should be taken to ensure the mounting holes do not pierce the data cable conduit.
- Page 10 Hook the left side of the controller into position and secure the controller onto the back plate assembly. To remove the controller from the back plate, undo the screw and remove from the base of the controller assem- bly. Carefully pull the controller away from the back plate and set aside.
-
Page 11: This Appliance Must Be Earthed
Connect the processor power lead to a double pole 3 amp fuse switched spur in- corporated in the fixed wiring circuit, accordance with current wiring rules. En- sure that this is located in an cessible, dry location and not in the bathroom. - Page 12 The Digital processors are supplied factory set with the flow rate at either ‘NORMAL HP’ or ‘NORMAL GRAVITY’ mode depending on which bath system has been ordered. STANDARD PROCESSORS ON BALANCED HP SYSTEMS: Standard processors fitted to balanced high pres- sure systems may be set to ‘NORMAL HP’...
- Page 13 Run the bath at maximum temperature (fac- tory pre set to 45 C). If required, maxi- mum temperature adjustment can be made with a flat bladed screwdriver using ‘MAX’ TEMP ADJUSTMENT’ control as indicated. When the temperature has been set to the desired position carefully replace the Digi- tal processor lid and secure the fixing hand tight only.
- Page 14 Part No:700392 Issue 01 Jun 12 Please note that calls may be recorded for training and quality purposes The company reserves the right to alter, change or modify the product specifications without prior warning ® Registered Trademark Aqualisa Products Limited...
