Sound Advance CT10 Specifications

Recommended Installations:
• Suspended ceilings
• Wood or metal stud ceilings
• Soffits
• Retrofit into almost all standard 8" speaker
openings
Recommended Environment:
• Indoor or weather-protected outdoor
Recommended Accessories:
• PBB8-10 Backcan
• UMB8-10 Universal mounting bracket
• ECS8-10 Enclosure compensation module
Installation Example:
PBB8-10
Backcan
(w/hang
straps)

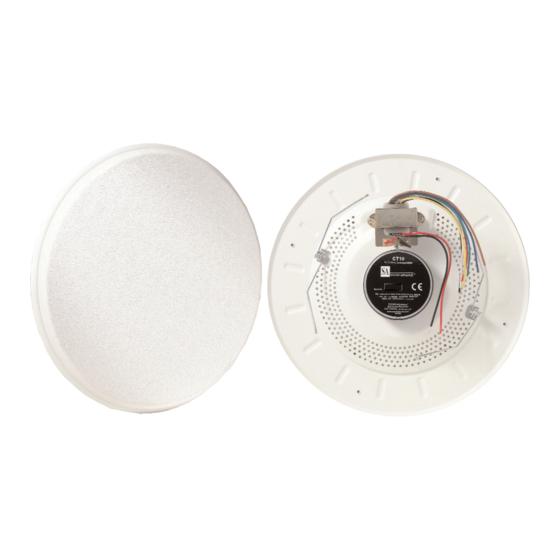

Wide-Dispersion Speaker for 8" Installations
HIGH QUALITY, WIDE DISPERSION
LOUDSPEAKER
The Sound Advance
planar loudspeaker designed for use in commercial installations. Concealed mount-
ing hardware results in a more discreet appearance than conventonal speakers.
UMB8-10
Universal
Patented Planar Diaphragm Technology™ allows a CT10 that has been properly
Mounting
Bracket
installed in a ceiling boundary to radiate sound in a 140° hemispherical
pattern with smooth, even coverage. This dispersion characteristic allows CT10
speakers to be spaced farther apart than narrow-dispersion conventional speakers,
reducing the total quantity of loudspeakers required in almost any installation.
The CT10 is generally mounted into wood or metal stud ceilings or suspended
ceiling tile systems, and will retrofit into almost all existing standard 8" diameter
speaker openings. Mounting is by torsion springs, and optional tile bridge and
backcan mounting accessories are available. An optional enclosure compensation
module is also available, to restore bass performance when the CT10 is installed in
a backcan.
The flat Expanded Polystyrene
water soluble materials such as latex paints to match almost any decor or color
requirement using conventional brush-on, roller or airless spray application
systems.
The CT10 is transformer-coupled, with the following taps: 0.5W, 1W, 2W, 4W, 8W,
CT10
Speaker
16W, and 8-ohm bypass.
Warranty:
Sound Advance
manship for a period of 5 years from the date of purchase. During the warranty
period, Sound Advance will repair or replace (at its option) all such defects without
charge for parts or labor, if returned prepaid to the proper Sound Advance service
facility, together with the original sales receipt or other proof of purchase. The unit
will be returned prepaid.
CT10 is a unique, extended bandwidth, wide-dispersion
®
[EPS] loudspeaker surface may be finished with
®
warrantees the CT10 to be free of any defect in material of work-
®
CT10
