U-Line H-5642 Quick Start Manual

π
H-5642

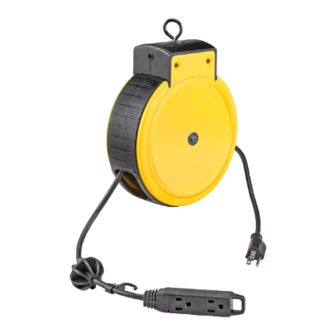

RETRACTABLE CORD REEL –
ALL PURPOSE, 25'
TOOLS NEEDED
Phillips Screwdriver
CEILING MOUNT – 360° ROTATION
1. Select location within two feet of an electrical outlet.
2. Screw hanger hook into ceiling stud using a Phillips
screwdriver. (See Figure 1)
3. Hang reel on hook.
4. Use pliers to close hook so reel is secure and won't
fall off.
5. Adjust cord stop so outlet hangs at desired length
when cord is retracted. (See Figure 1)
6. Plug power cord into outlet.
Figure 1
Hanger Hook
PAGE 1 OF 3
Pliers
Cord Stop
1-800-295-5510
uline.com
INSTALLATION
WALL MOUNT – 180° ROTATION
1. Select location within two feet of an electrical outlet.
2. Attach U-bracket to wall stud with screws provided
using a Phillips screwdriver. (See Figure 2)
3. Place hanger bracket inside U-bracket, lining up
small holes in brackets. (See Figure 2)
4. Insert locking pin through lined-up holes. (See Figure 2)
5. Adjust cord stop so outlet hangs at desired length
when cord is retracted.
6. Plug power cord into outlet.
Figure 2
Para Español, vea página 2.
Pour le français, consulter la page 3.
Locking
Pin
Hanger
Bracket
U-Bracket
0423 IH-5642
