U-Line H-57 Operation Instructions

H-57, H-540, H-572
H-702, H-703
STRAPPING TENSIONERS
AND SEALERS

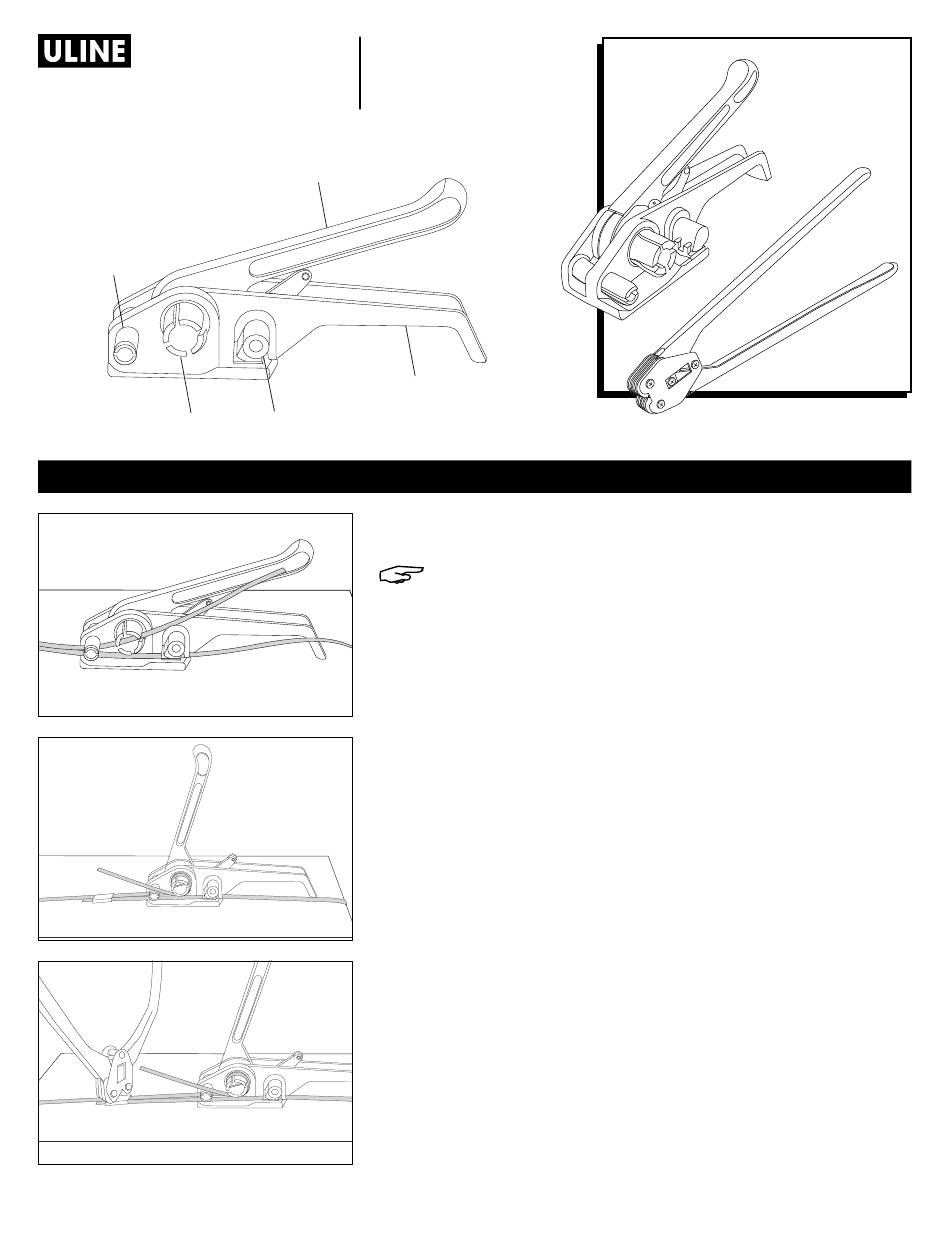

Cutter Wheel
Windlass
PAGE 1 OF 3
1-800-295-5510
uline.com
Tension Lever
Base Handle
Gripper Plate
OPERATION
THREADING TENSIONER
1. Wrap both ends of strapping around product.
2. Squeeze handle and base together.
3. Insert the shorter end of strapping under the gripper plate and cutter
wheel leaving approximately 5" of strapping off the front end.
4. Release handle and base.
Figure 1
5. Feed the other end through the cutter wheel and up through the windlass.
6. Pull strapping as tight as possible.
TENSIONING
1. Move tension lever forward and back to begin tensioning.
2. Continue back and forth motion until strapping has reached desired
tension.
PLACING THE SEAL
1. Seal should be placed open side down on top of both ends of strapping.
Figure 2
SEALING
1. Close nose of sealer around seal.
2. Crimp tightly around strapping.
REMOVING EXCESS
1. Squeeze handle and base together to cut strapping.
2. Slide tool off to the right.
MAINTENANCE
Figure 3
Tools do need to be cleaned and maintained periodically with a steel brush or
dry compressed air. Lubricate all moving parts with light machine oil.
(See Figure 1)
NOTE: Layer the strapping so that the end closest to your body is on
the bottom.
(See Figure 2)
(See Figure 3)
Para Español, vea página 2.
Pour le français, consulter la page 3.
