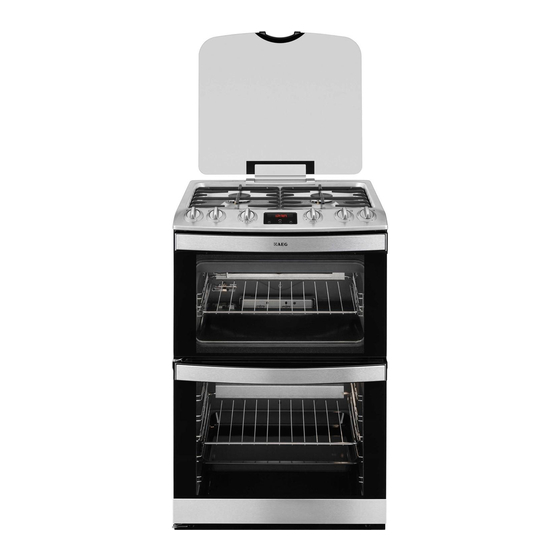

User Manual
17166GM-MN
Cooker

Advertisement

Table of Contents
loading

Related Manuals for AEG 17166GM-MN

Summary of Contents for AEG 17166GM-MN

  • Page 1 User Manual 17166GM-MN Cooker...

  • Page 2: Table Of Contents

    14. ENERGY EFFICIENCY....................28 FOR PERFECT RESULTS Thank you for choosing this AEG product. We have created it to give you impeccable performance for many years, with innovative technologies that help make life simpler features you might not find on ordinary appliances. Please spend a few minutes reading to get the very best from it.

  • Page 3: Safety Information

    ENGLISH SAFETY INFORMATION Before the installation and use of the appliance, carefully read the supplied instructions. The manufacturer is not responsible if an incorrect installation and use causes injuries and damages. Always keep the instructions with the appliance for future reference.

  • Page 4: Safety Instructions

    Do not use a steam cleaner to clean the appliance. • Metallic objects such as knives, forks, spoons and lids • should not be placed on the hob surface since they can get hot. Remove any spillage from the lid before opening. Let •...
  • Page 5 ENGLISH • Do not install the appliance on a • Fully close the appliance door, before platform. you connect the mains plug to the • Do not install the appliance adjacent mains socket. to a door or under a window. This 2.3 Gas connection prevents hot cookware to fall from the appliance when the door or the...
  • Page 6 • The vapours that very hot oil releases • Provide good ventilation in the room can cause spontaneous combustion. where the appliance is installed. • Used oil, that can contain food • Use only stable cookware with the remnants, can cause fire at a lower...
  • Page 7 ENGLISH 2.8 Gas Grill • If you use an oven spray, obey the safety instructions on the packaging. • Do not clean the catalytic enamel (if WARNING! applicable) with any kind of Risk of fire, explosion and detergent. burns. • Do not clean the burners in the •...

  • Page 8: Product Description

    3. PRODUCT DESCRIPTION 3.1 General overview Control panel and hob Air vents for the cooling fan Grill Shelf support, removable Lamp Shelf positions 3.2 Cooking surface layout Steam outlet - number and position depend on the model Semi-rapid burner...

  • Page 9: Before First Use

    ENGLISH Use the trivet only with the Grill- / roasting pan. 4. BEFORE FIRST USE Press the to set the correct WARNING! time. Refer to Safety chapters. After approximately five seconds, the flashing stops and the display shows the 4.1 Initial Cleaning time of day.

  • Page 10: Hob - Hints And Tips

    F. Slots In the absence of electricity G. Burner body you can ignite the burner H. Location peg without an electrical device. Hole for the ignition candle In this case approach the burner with a flame, push 5.3 Replacing burner parts the relevant knob down and turn it to maximum position.

  • Page 11: Hob - Care And Cleaning

    ENGLISH 6.1 Cookware 6.2 Diameters of cookware WARNING! WARNING! Do not put the same pan on Use cookware with two burners. diameters applicable to the size of burners. WARNING! Do not put unstable or Burner Diameter of cook- damaged pots on the burner ware (mm) to prevent from spill and injury.

  • Page 12: Oven - Daily Use

    Keep these components well cloth. clean to prevent difficult lighting and check that the burner crown holes are 7.4 Cleaning the spark plug not obstructed. This feature is obtained through a ceramic ignition candle with a metal 8.
  • Page 13 ENGLISH 8.3 Turning off the oven burners To put out the flame, turn the knob to the off position. 8.4 Top Oven Functions Oven function Application Off position The appliance is off. 1 - 8 Heat settings Heat settings for Conventional Cooking. Grilling To grill flat food in the middle of the grill and to toast.
  • Page 14 The stopper in the top oven cavity keeps the deep pan in the proper position. Do not push the pan too deep into the cavity, because it may cause a damage to the stoper or the deep pan. You can use the trivet to roast larger pieces of meat or poultry on one shelf position.

  • Page 15: Oven - Clock Functions

    ENGLISH 9. OVEN - CLOCK FUNCTIONS 9.1 Display A. Minute minder indicator B. Time display C. Time of day indicator 9.2 Buttons Button Function Description MINUS To set the time. CLOCK To set a clock function. PLUS To set the time. 9.3 Setting the Minute Minder 4.
  • Page 16 10.3 Baking The temperature and baking times in the tables are • Your oven can bake or roast guidelines only. They differently to the appliance you had depend on the recipes and before. Adapt your usual settings the quality and quantity of (temperature, cooking times) and the ingredients used.
  • Page 17 ENGLISH Baking results Possible cause Remedy The cake is too dry. The baking time is too long. The next time you bake, set a shorter baking time. The cake browns unevenly. The oven temperature is too Set a lower oven tempera- high and the baking time is ture and a longer baking too short.
  • Page 18 Food Heat setting Total prepara- Shelf position tion time (min) Fish 20 - 30 Fish Pie 20 - 25 Beef Casserole 150 - 180 Lamb Casserole 150 - 180 Convenience Foods Follow manufacturer’s instructions Baked Potatoes 60 - 90...
  • Page 19 ENGLISH Food Heat setting Total preparation Shelf posi- time (min) tion Flaky Pastry 25 - 40 Mince Pies 15 - 20 1 + 4 Pasta Lasagne etc. 40 - 45 Meat Pies 25 - 35 Quiche, Tarts, Flans 25 - 45 Shepherd’s Pie 30 - 40 Soufflés...
  • Page 20 10.8 Roasting Food Heat setting Total preparation time (min) Shelf posi- tion Beef / Beef boned 20 - 35 minutes per 500g (1lb) and 20 - 35 minutes over Mutton / Lamb 25 - 35 minutes per 500g (1lb) and 25...

  • Page 21: Oven - Care And Cleaning

    ENGLISH Food Total preparation time Shelf position (min) Plaice / Cod Fillets 10 - 15 2 - 3 Kebabs 20 - 30 2 - 3 Kidneys – Lamb / Pig 8 - 12 2 - 3 Liver – Lamb / Pig 10 - 20 2 - 3 Sausages...
  • Page 22 WARNING! Keep children away when you clean the oven at a high temperature. The oven surface becomes very hot and there is a risk of burns. CAUTION! Always turn the oven light on while using the catalytic cleaning (if applicable).

  • Page 23: Troubleshooting

    ENGLISH 11.6 Removing and cleaning 11.7 Replacing the lamp the door glasses - main oven Put a cloth on the bottom of the interior of the appliance. It prevents damage to The door glass in your the lamp glass cover and the cavity. product can be different in type and shape from the WARNING!
  • Page 24 Problem Possible cause Remedy You cannot activate the ap- The fuse is released. Make sure that the fuse is pliance. the cause of the malfunction. If the fuse releases again and again, contact a quali- fied electrician. You cannot activate the ap- The appliance is too hot.

  • Page 25: Installation

    ENGLISH 12.2 Service data on the front frame of the appliance cavity. Do not remove the rating plate If you cannot find a solution to the from the appliance cavity. problem yourself, contact your dealer or an Authorised Service Centre. The necessary data for the service centre is on the rating plate.
  • Page 26 13.5 Other technical data CAUTION! Install the stability chain to WARNING! prevent the appliance from These instructions are only tilting. The stability chain valid in the countries whose only works when the symbols appear on this appliance is put in a correct booklet's cover.
  • Page 27 ENGLISH WARNING! WARNING! Only a qualified and The gas bayonet connector competent person can do must be in the marked area. the gas installation. Before you connect te gas, Dimension disconnect the appliance from the electricity supply or switch off the fuse in the fuse box.

  • Page 28: Energy Efficiency

    The gas supply should be not connected correctly. 14. ENERGY EFFICIENCY 14.1 Product information for hob according to EU 66/2014 Model identification 17166GM-MN Type of hob Hob inside Freestanding Cooker Number of gas burners Energy efficiency per gas Left Front - Rapid 52.9 %...
  • Page 29 ENGLISH 14.3 Product Fiche and information for ovens according to EU 65-66/2014 Supplier's name Model identification 17166GM-MN Top oven: 95.0 Energy Efficiency Index Main oven: 90.0 Top oven: A Energy efficiency class Main oven: A Top oven: 1.35 kWh/cycle Energy consumption with a standard load, conven- 4.86 MJ/cycle...
  • Page 30 Return the product to...
  • Page 31 ENGLISH...
  • Page 32 www.aeg.com/shop...
