Description Quantity - designer's image 211-4513 Assembly Instructions Manual

HARDWARE
(H1) x 4 (H2) x 8
pre-glued dowel hex screw
(H3) x 2 (H4) x 2
L-bracket screw wall screw
#10 x 1/2 in. #10 x 1-1/2 in.
finished
edge

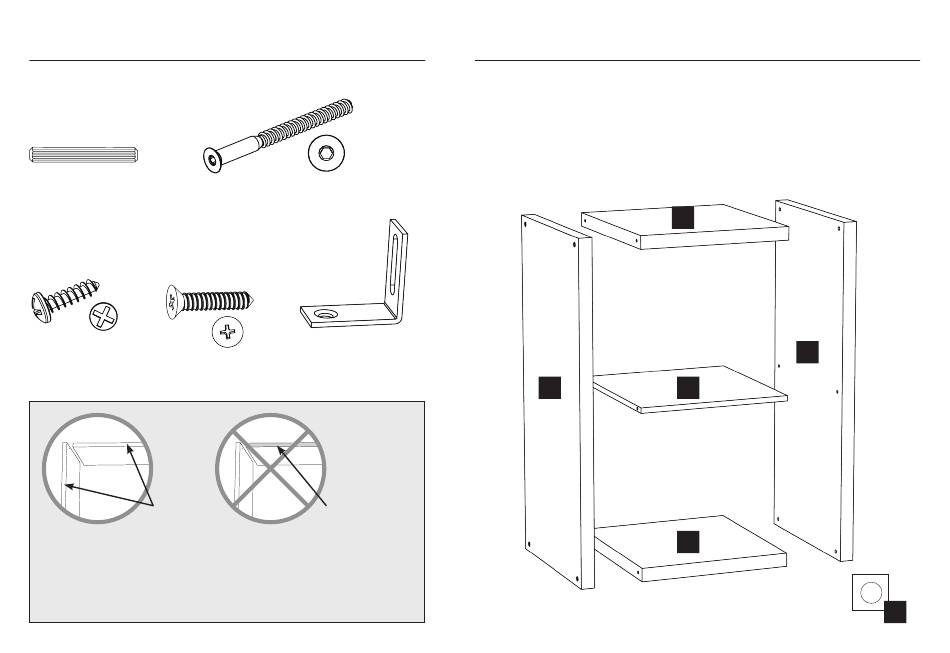

Unfinished edges are shaded in gray in the illustrations throughout this document. It is
important to understand how finished edges go together. Take a moment to lay out all the
wood pieces and note the finished and unfinished (raw wood) edges. Arrange pieces so all
finished edges are facing the same way. While assembling, take care to note in each diagram
which way finished edges are facing. In general, all finished edges will face forward and all
finished sides (large area of piece) will face up when product is fully assembled and upright.

DESCRIPTION QUANTITY

A
B
C
D
(H5) x 2
L-bracket
unfinished
edge
side panel
top/bottom panel
divider
adhesive screw-covers
B
A C
B
2
2
1
8
A
D
3
