Car-Interface r.link RL5-MIB2-E Manual

Video-inserter
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
All manuals and user guides at all-guides.com

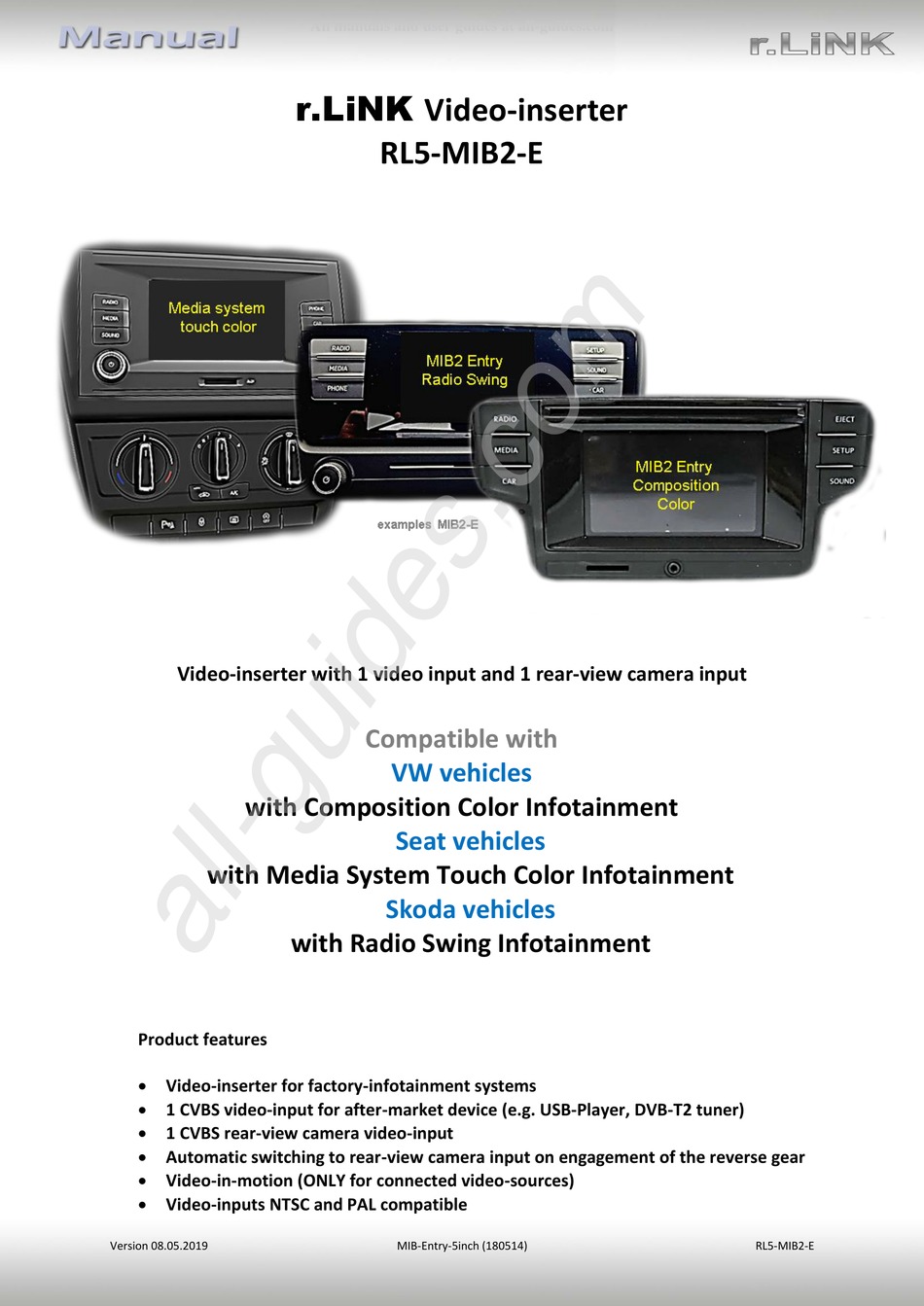

r.LiNK Video-inserter
RL5-MIB2-E
Video-inserter with 1 video input and 1 rear-view camera input
Compatible with
VW vehicles
with Composition Color Infotainment
Seat vehicles
with Media System Touch Color Infotainment
Skoda vehicles
with Radio Swing Infotainment
Product features
 Video-inserter for factory-infotainment systems
 1 CVBS video-input for after-market device (e.g. USB-Player, DVB-T2 tuner)
 1 CVBS rear-view camera video-input
 Automatic switching to rear-view camera input on engagement of the reverse gear
 Video-in-motion (ONLY for connected video-sources)
 Video-inputs NTSC and PAL compatible
Version 08.05.2019
MIB-Entry-5inch (180514)
RL5-MIB2-E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the r.link RL5-MIB2-E and is the answer not in the manual?

Questions and answers

Related Manuals for Car-Interface r.link RL5-MIB2-E

Summary of Contents for Car-Interface r.link RL5-MIB2-E

  • Page 1 All manuals and user guides at all-guides.com r.LiNK Video-inserter RL5-MIB2-E Video-inserter with 1 video input and 1 rear-view camera input Compatible with VW vehicles with Composition Color Infotainment Seat vehicles with Media System Touch Color Infotainment Skoda vehicles with Radio Swing Infotainment Product features ...

  • Page 2: Table Of Contents

    All manuals and user guides at all-guides.com Contents 1. Prior to installation 1.1. Delivery contents 1.2. Checking the Interface compatibility of vehicle and accessories 1.3. Connectors – Video interface (daughter PCB) 2. Installation 2.1. Place of installation 2.2. Connection scheme 2.3.

  • Page 3: Prior To Installation

    All manuals and user guides at all-guides.com 1. Prior to installation Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Version 08.05.2019 MIB-Entry-5inch (180514) RL5-MIB2-E...
  • Page 4 All manuals and user guides at all-guides.com 1.2. Checking the compatibility of vehicle and accessories Compatibility brand Compatible vehicles Infotainment systems Ibiza (6P) model years since 2016 MIB2 Entry - Media System Touch Color – Seat Leon3 (5F) model years since 2013 with 5inch monitor Toledo4 (KG) model years since 2016 Fabia3 (NJ) model years since 2014...

  • Page 5: Installation

    All manuals and user guides at all-guides.com 1.3. Anschlüsse - Video-interface (daughter PCB) The video-interface (daughter PCB) converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. 2.

  • Page 6: Place Of Installation

    All manuals and user guides at all-guides.com 2.1. Place of installation The daughter PCB shell be connected inside the factory monitor and externely fixed on the head unit’s upper side, by using enclosed screws and spacers. Version 08.05.2019 MIB-Entry-5inch (180514) RL5-MIB2-E...

  • Page 7: Connection Scheme

    All manuals and user guides at all-guides.com 2.2. Connection Scheme Version 08.05.2019 MIB-Entry-5inch (180514) RL5-MIB2-E...

  • Page 8: Installation - Vw And Seat

    All manuals and user guides at all-guides.com 2.3. Installation – VW and Seat (Skoda vehicles: refer to the according chapter!) 2.3.1. Opening the factory monitor Turn out both screws at the outer side of the top part of the head unit (red arrows) and both screws at the bottom part of the head unit (red arrows).

  • Page 9: Connection - 50Pin Ribbon Cables

    All manuals and user guides at all-guides.com 2.3.2. Connection - 50pin ribbon cables Fold upwards the black hinge of the factory ribbon cable base to unlock the original brown colored 50pin ribbon cable of the factory PCB. Carefully pull out the original 50pin ribbon cable in arrow direction. Note: The original short ribbon cable is made by stiff material.
  • Page 10 All manuals and user guides at all-guides.com Carefully lead the monitor’s brown colored 50pin ribbon cable into the preassembled ribbon cable merger of the daughter PCB’s 50pin ribbon cable “PNL-OUT”. Make sure that the connector pins are faced to the merger’s platinum. After a check of its perfect position, close the ribbon cable merger’s lock, by folding back the black hinge, to fix the connection again.

  • Page 11: Warning Notes, Concerning The Installation Of Ribbon Cables

    All manuals and user guides at all-guides.com 2.3.2.1. Warning notes, concerning the installation of ribbon cables 1) The contacting ends of ribbon cables always have to be installed in a straight and precise 180° position to the connector. Each deviation from a perfect contact position will curse faulty contact and even danger of short circuit 2) The ribbon cable’s contacting side always has to correspond to the contacting side of the connector, concerning the mounting position.

  • Page 12: Reassembly - Head Unit, Monitor And Daughter Pcb

    All manuals and user guides at all-guides.com 2.3.4. Reassembly - head unit, monitor and daughter PCB Carefully, plug the head unit into the monitor again and fix it with the 4 screws on its top and its bottom. Note: Take special care for the ribbon cables for they won’t be injured during the assembly of both parts! Change the original brass screws against the enclosed brass spacers at the position that’s shown in the picture.

  • Page 13: Installation - Skoda Vehicles

    All manuals and user guides at all-guides.com 2.4. Installation – Skoda vehicles 2.4.1. Opening the factory monitor Turn out both screws at the outer side of the top part of the head unit (red arrows) and both screws at the bottom part of the head unit (red arrows). Separate the head unit from the monitor and lay it aside.

  • Page 14: Connection - 50Pin Ribbon Cables

    All manuals and user guides at all-guides.com 2.4.2. Connection - 50pin ribbon cables Fold upwards the hinge of the factory ribbon cable base to unlock the original brown colored 50pin ribbon cable of the factory PCB. Carefully pull out the original 50pin ribbon cable in arrow direction. Note: The original short ribbon cable is made by very stiff material.

  • Page 15: Reassembling - Skoda Monitor And Head Unit

    All manuals and user guides at all-guides.com 2.4.3. Reassembling – Skoda monitor and head unit Lead the picture signal cable out at an appropriate location and save it against cable damage by using some tape. Note: For the cable entry, a housing modification could possibly be required. Reassemble the monitor’s rear housing part by using the 8 screws.
  • Page 16 All manuals and user guides at all-guides.com Reassemble the head unit housing to the monitor housing. Take special care for the perfect fitting of both parts for not to get caught the small white cables of the 12pin connector. Screw in the left screw at the upside and both screws at the bottom of the head unit. Version 08.05.2019 MIB-Entry-5inch (180514) RL5-MIB2-E...

  • Page 17: Fixing - Daughter Pcb

    All manuals and user guides at all-guides.com 2.4.4. Fixing – daughter PCB Note: For Skoda head unit installation, the 6pin interface cable and the 4pin pushbutton cable connections have to be done before fixing the PCP to the head unit! Change the original brass screw against one of the enclosed brass spacers at the position that’s shown in the picture.

  • Page 18: Cable Connection - Daughter Pcb

    All manuals and user guides at all-guides.com 2.5. Cable connection – daughter PCB Connect the 6pin interface cable’s 6pin connector and the menu pushbutton cable’s 4pin connector to the 6pin and 4pin connectors of the daughter PCB. Connect the 6pin interface cable’s single red colored wire to S-Contact terminal 86s +12V (e.g.

  • Page 19: After-Market Rear-View Camera

    All manuals and user guides at all-guides.com 2.6. After-market rear-view camera: To switch the interface’s rear-view camera input, an external switching signal from the reverse gear light is required. As the reverse gear light signal contains electronic interference, a traditional open relay (e.g AC-RW-1230 with wiring AC-RS5) or filter (e.g. AC- PNF-RVC) is required.

  • Page 20: Connection - Video Inputs

    All manuals and user guides at all-guides.com 2.7. Connection – video inputs It is possible to connect one after-market video sources and one after-market rear-view camera to the video-interface. Before final installation, we recommend a test-run to detect an incompatibility of vehicle and interface.

  • Page 21: Connection - External Keypad

    All manuals and user guides at all-guides.com 2.8. Connection – external keypad Connect the keypad’s female 4pin connector to the male 4pin connector of the daughter PCB Version 08.05.2019 MIB-Entry-5inch (180514) RL5-MIB2-E...

  • Page 22: Interface Operation By External Keypad

    All manuals and user guides at all-guides.com 3. Interface operation by external keypad Use the external keypad to switch to the connected video source. Each press will switch between the factory video and the connected video source. 4. Picture settings by pusbuttons menu adjustment The picture settings are adjustable by the 3 push-buttons of the daughjter PCB’s menu keypad.

  • Page 23: Specifications

    All manuals and user guides at all-guides.com 5. Specifications BATT/ACC range 7V - 25V Stand-by power drain Power 90mA @12V Video input 0.7V - 1V Video input formats NTSC / PAL RGB-video amplitude 0.7V with 75 Ohm impedance Temperature range -40°C to +85°C Dimensions PCB1 132x 11 x 50 mm (W x H x D)
  • Page 24 All manuals and user guides at all-guides.com FAQ – Trouble shooting Interface functions For any troubles which may occur, check the following table for a solution before requesting support from your vendor. Symptom Reason Possible solution Not all connectors have been reconnected to factory head- Connect missing connectors.

  • Page 25: Technical Support

    All manuals and user guides at all-guides.com Technical Support Please note that direct technical support is only available for products purchased directly from NavLinkz GmbH. For products bought from other sources, contact your vendor for technical support. NavLinkz GmbH distribution/tech dealer-support Eurotec-Ring 39 D-47445 Moers +49 2841 949970...
