Citroen, DS, Fiat, Opel, Peugeot
with ALL-IN-ONE head unit PSA AIO
Video-inserter for front- and rear-view camera
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS video-inputs for after-market devices (e.g. USB-Player, DVB-T2 tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10, 15 or 20 seconds
Display of factory PDC graphic can be shown (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 22.04.2025
Video inserter
CI-RL4-PSAAIO
Compatible with
and Toyota vehicles

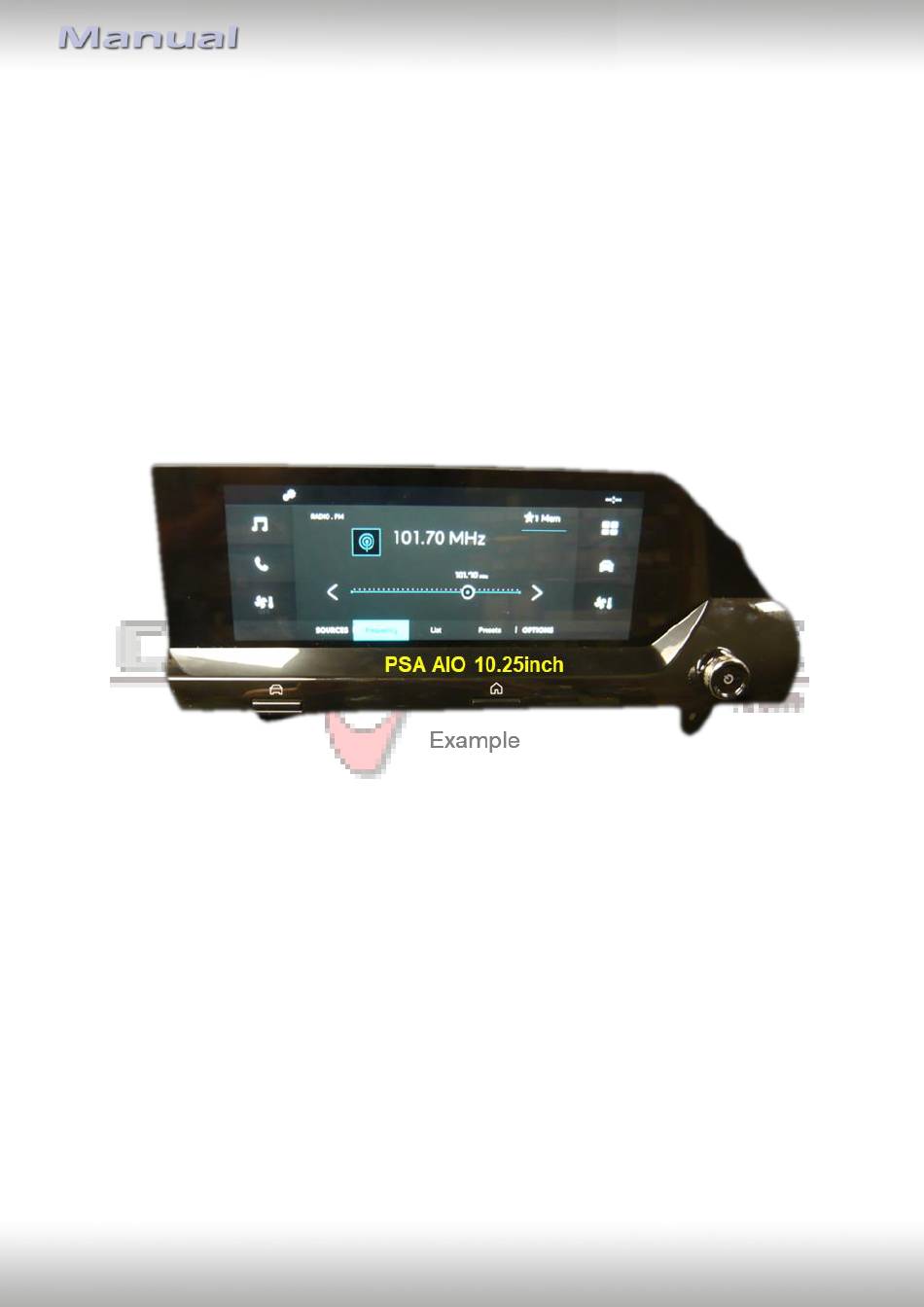

with 10.25inch monitor
and two additional video sources
from SW 25 V2.3 / GD V1.0 / GW256 V2.1
CI-RL4-PSAAIO
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL4-PSAAIO
Summary of Contents for Car-Interface CI-RL4-PSAAIO
- Page 1 Video inserter CI-RL4-PSAAIO Compatible with Citroen, DS, Fiat, Opel, Peugeot and Toyota vehicles with ALL-IN-ONE head unit PSA AIO with 10.25inch monitor Video-inserter for front- and rear-view camera and two additional video sources Product features Video-inserter for factory-infotainment systems ...
-
Page 2: Table Of Contents
Case 2: Video interface does not receive the reverse gear signal 2.9. Connection – external keypad Interface operation by external keypad Picture settings Specifications Frequently asked questions Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 3: Legal Information
Read the manual prior to installation. Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 4: Checking The Interface Compatibility Of Vehicle And Accessories
ProAce II from model year 2024, ALL-IN-ONE head-unit Toyota ProAce City from model year 2024, Not compatible with CRONY2 from ProAce Verso from model year 2024 Clarion! Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... - Page 5 Factory PDC display The factory PDC graphic display does not work in all vehicles. Video input signal NTSC video sources compatible only. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO...
-
Page 6: Connectors
The video-interface converts the video signals of connected after-market sources in a factory monitor compatible picture signal which is inserted in the factory monitor, by using separate trigger options. 1.3.2. Connectors – daughter PCB Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 7: Dip-Switch Settings
OSD menu) after disengaging the reverse gear. * The factory PDC display must also be activated via Dip 6. See the following chapters for detailed information. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 8: Activating The Front Camera Input (Dip 1)
Dip position down is ON and position up is OFF. Set all dip switches to off Vehicle/Navigation Dip 1 Dip 2 Dip 3 Dip 4 All vehicles Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 9: Installation
The daughter PCB is installed on the outside of the head unit. The video interface is connected to the daughter PCB and to the back of the head unit. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 10: Connection Scheme
2.2. Connection Scheme Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 11: Installation - Daughter Pcb
Installation – daughter PCB Remove the factory head-unit. The enclosed daughter PCB has to be installed into the picture line between the monitor panel and mainboard of the head-unit. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... - Page 12 Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO...
-
Page 13: Warning Notes, Concerning The Installation Of Ribbon Cables
2) The ribbon cable’s contacting side always has to correspond to the contacting side of the connector, concerning the mounting position. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 14: Pictures: Installation Example Opel Combo E 2025
2.3.2. Pictures: Installation example Opel Combo E 2025 Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 15: Connection - Picture Signal Cable
2.4. Connection – picture signal cable Connect the female 20pin connector of the pre-connected 20pin picture signal cable to the male 20pin connector of the video interface. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 16: Connection - 10Pin Power/Can Cable
12pin connector of the 10-pin power/CAN cable. Connect the opposing black female 12pin connector of the 10-pin Power/CAN cable to the previously become free male 12pin connectors of the head unit. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 17: Analogue Power Supply
Connect the 12pin interface cable’s purple coloured wire Manual ACC to +12V ACC terminal 15 or to +12V S-contact terminal 86s +12V (e.g. glove compartment illumination). Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 18: Power Supply Output
(depending on the setting in the OSD menu) delay after reverse gear is disengaged and +12V by manual switching to front camera by keypad (short press) Dip 1 OFF +12V (max. 3A) ACC Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... - Page 19 Limitations: To ensure a better image quality, the video image (front and rear-view camera, video 1 and video 2) is displayed in a reduced format on the monitor, i.e. it does not cover the entire monitor size. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO...
- Page 20 RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO...
-
Page 21: Audio Insertion
1 is set to ON and the front camera input is selected). Attention: A long press of the external keypad push button will switch the interface to the next source. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 22: After-Market Rear-View Camera
20pin cable to avoid an unnecessary, permanent power supply to the camera electronic. For the operation, both green cables “Reverse IN” “Reverse OUT” have to remain onnected. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 23: Case 2: Video Interface Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect permanent power / 12V to the relay’s input connector (30). Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 24: Connection - External Keypad
Connect the keypad’s female 4pin connector to the 12pin interface cable’s male 4pin connector. Note: Even if the switching through several video sources by the keypad mightn’t be required, the keypad’s invisible connection and availability is strongly recommended. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 25: Interface Operation By External Keypad
Short press of keypad (only if DIP 1 is set to ON) By short pressing the external keypad, the video interfaces switches from the factory video to the front camera input and back to factory video. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 26: Picture Settings
FRONT-CNTRL (front camera switch back, duration adjustable for 10, 15 or 20 seconds - 10 seconds is preset) Note: To adjust the reverse picture settings, engage the reverse gear. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... -
Page 27: Specifications
-40°C to +85°C Dimensions interface box 116 x 25 x 89mm (W x H x D) Dimensions daughter PCB 130 x 8 x 81mm (W x H x D) Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO... - Page 28 Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO...
- Page 29 If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. Made in China Version 22.04.2025 from SW 25 V2.3 / GD V1.0 / GW256 V2.1 CI-RL4-PSAAIO...
