Video inserter
CI-RL4-LR16-8
CI-RL4-LR16-10

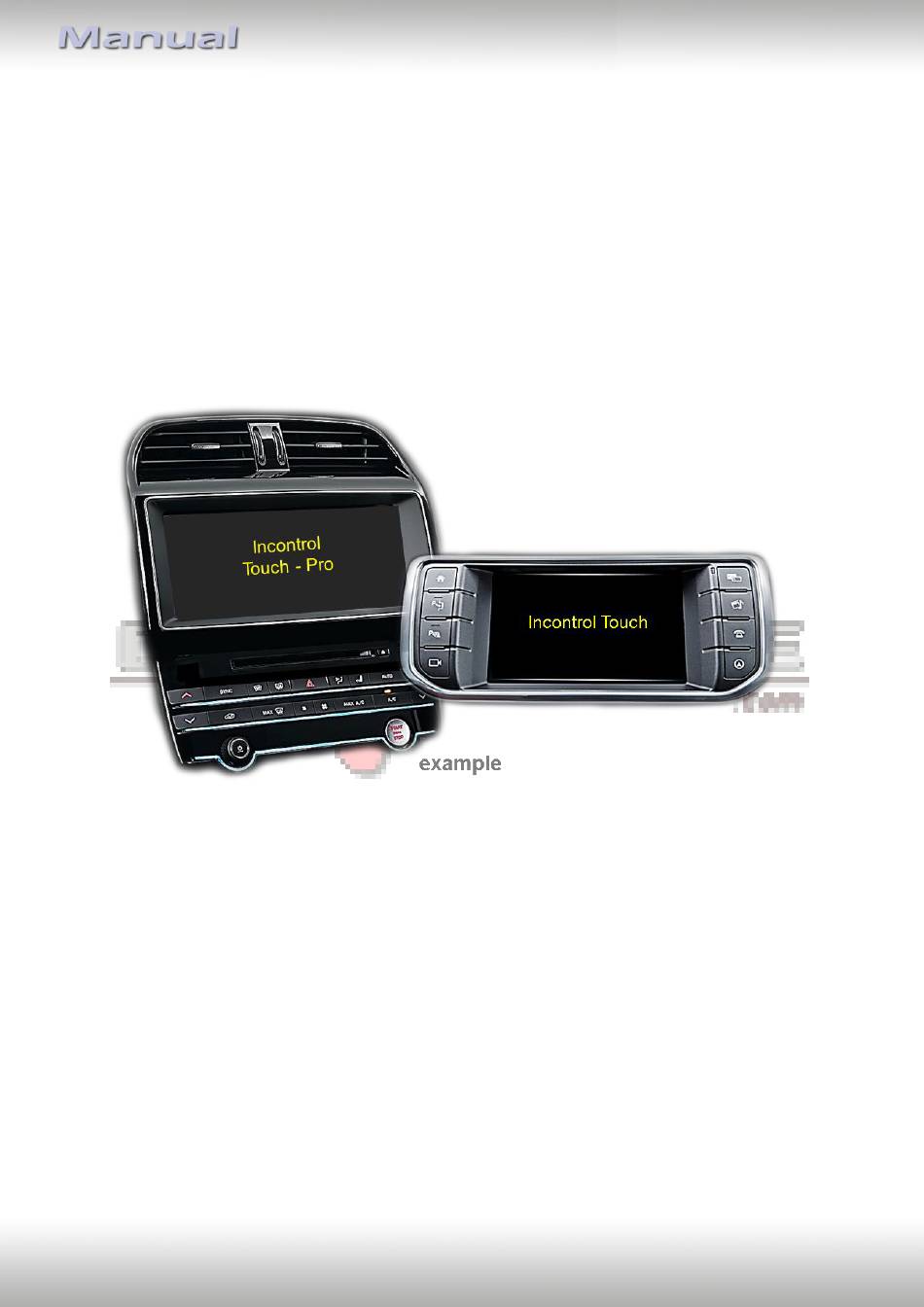

Compatible with
Jaguar and Landrover vehicles
with Incontrol Touch system and 8inch monitor
or Incontrol Touch Pro system and 10.2inch Monitor
Video-inserter for front- and rear-view camera
and two more video inputs
Product features
Video-inserter for factory-infotainment systems
1 CVBS Input for rear-view camera
1 CVBS Input for front camera
2 CVBS Video-inputs for after-market Video sources (e.g. DVD-Player, DVB-T Tuner)
Automatic switching to rear-view camera input on engagement of the reverse gear
Automatic front camera switching after reverse gear for 10 seconds
Activatable parking guide lines for rear-view camera (not available for all vehicles)
Video-in-motion (ONLY for connected video-sources)
Video-inputs NTSC compatible
Version 05.01.2022
HW CAM(V100)/(V20)
CI-RL4-LR16-8/10
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL4-LR16-8
Summary of Contents for Car-Interface CI-RL4-LR16-8
- Page 1 Video inserter CI-RL4-LR16-8 CI-RL4-LR16-10 Compatible with Jaguar and Landrover vehicles with Incontrol Touch system and 8inch monitor or Incontrol Touch Pro system and 10.2inch Monitor Video-inserter for front- and rear-view camera and two more video inputs Product features Video-inserter for factory-infotainment systems ...
-
Page 2: Table Of Contents
Case 2Interface does not receive the reverse gear signal 2.7. Connecting - video-interface and external keypad 2.8. Picture settings and guide lines 3. Interface operation 3.1. By factory infotainment button 3.2. By keypad 4. Specifications 5. FAQ – Trouble Shooting-Interface functions Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 3: Prior To Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
For the RL4-LR16-10 for Incontrol Touch Pro with 10.2 inch monitor, the front camera must be suitable for permanent operation. PDC and guide lines Displayed guide lines and PDC are not available in all vehicles. Video input signal Only NTSC video sources compatible. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 5: Boxes And Connectors - Video Interface
Further it reads the vehicle’s digital signals out of the vehicle’s CAN-bus and converts them for the video interface. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 6: Settings Of The 8 Dip Switches (Black)
After each Dip-switch-change a power-reset of the Video interface has to be performed! *The front camera will automatically be switched for 10 seconds after disengaging the reverse gear (according to the menu adjustments). See the following chapters for detailed information. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 7: Activating The Front Camera (Dip 1)
Using the 10,2inch monitor, the dip switch setting is OFF. Size of monitor Dip 8 8inch – INCONTROL TOUCH 10.2inch – INCONTROL TOUCH PRO Note: Dip 4 is out of function and has to be set to OFF! Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 8: Settings Of The 4 Dip Switches (Can Function - Red)
Behind the trim panel in the boot on the left (e.g. F-Pace 10.2 inch - not 8 inch) Under the rear centre console Under the driver seat (e.g. in the Range Rover Sport - installed low down) Under the passenger seat. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 9: Connection Schema
2.2. Connection schema Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 10: Connection - Factory Head Unit And Monitor
Connect the female aubergine coloured HSD+2 connector opposite the picture signal cable to the waterblue coloured male HSD+2 connector „HU IN“ of the video interface. Note: The colours of the HSD+2 connectors at monitor and head unit may vary. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... - Page 11 Connect the angled female aubergine coloured HSD+2 connector opposite the picture signal cable to the waterblue coloured male HSD+2 connector „HU IN“ of the video interface. Note: The colours of the HSD+2 connectors at monitor and head unit may vary. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10...
-
Page 12: Connection - Quadlock-Can
Quadlock connector at the rear-side of the head unit. Note: If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned on, refer to chapter “Analogue power supply for the video interface” Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 13: Incontrol Touch Pro Head Unit (10,2 Inch Monitor - Rl4-Lr16-10)
24pin connector at the rear-side of the head unit. Note: If, after connecting the PNP harness, no interface LED lightens up while the ignition is turned on, refer to chapter “Analog power supply for the video interface” Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 14: Analog Power Supply For The Video Interface
With analogue connection of the video interface (without CAN bus), the connection of the rear-view camera has also to be done manually (see point: “Case 2: Interface does not receive a reverse gear signal”). Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 15: Power Supply Output
Incontrol Touch (short press) 8inch Monitor Dip 1 OFF No function! Variant Function RL4-LR16-10 Dip 1 ON +12V (max. 3A) simulated ACC Incontrol Touch Pro Dip 1 OFF +12V (max. 3A) simulated ACC 10.2inch Monitor Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 16: Connection - Video-Sources
Connect the front camera’s video RCA connector to the 12pin interface cable’s female RCA connector „Front V3“. Connect the video RCA of the AV source 1 and 2 to the 12pin interface cable’s female RCA connector “Left (V1)” ”Right (V2)”. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 17: Audio Insertion
For RL4-LR16-10 - Incontrol Touch Pro with 10.2inch monitor: The red power supply output ACC/front cam out 12V (max 3A) can be used to power a front camera. Attention: In this case, the front camera must be suitable for permanent operation! Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 18: After-Market Rear-View Camera
“Camera IN” while the reverse gear is engaged. Additionally, the +12V (max. 3A) power supply for the rear-view camera can be taken from the green wire of the 12pin interface cable. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... - Page 19 Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it to the green “Reverse-IN” cable before. Connect stabile and permanent +12V to the relay’s input connector (30). Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10...
-
Page 20: Connecting - Video-Interface And External Keypad
Connect the keypad’s female 4pin connector to the male 4pin connector of the 12pin interface cable. Note: Even if switching through several video sources by the keypad mightn’t be required, the invisible connection and availability is strongly recommended. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... - Page 21 IR-AV1/2 (no function) Guide L/R (no function) UI-CNTRL (no function) - via Dip6 the guide lines were activated Illustration exemplary Size H/V (picture size horizontal/vertical) Note: To adjust the reverse picture, engage the reverse gear. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10...
-
Page 22: Interface Operation
Each press will switch to the next enabled input. Inputs which are not enabled will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 23: By Keypad
7V - 25V Stand-by power drain 11mA Power 230mA @12V Video input 0.7V - 1V Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 117 x 26 x 103 mm (W x H x D) Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... -
Page 24: Faq - Trouble Shooting-Interface Functions
Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10... - Page 25 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-05 0068 Made in China Version 05.01.2022 HW CAM(V100)/(V20) CI-RL4-LR16-8/10...
