Video-inserter
CI-RL2-N900

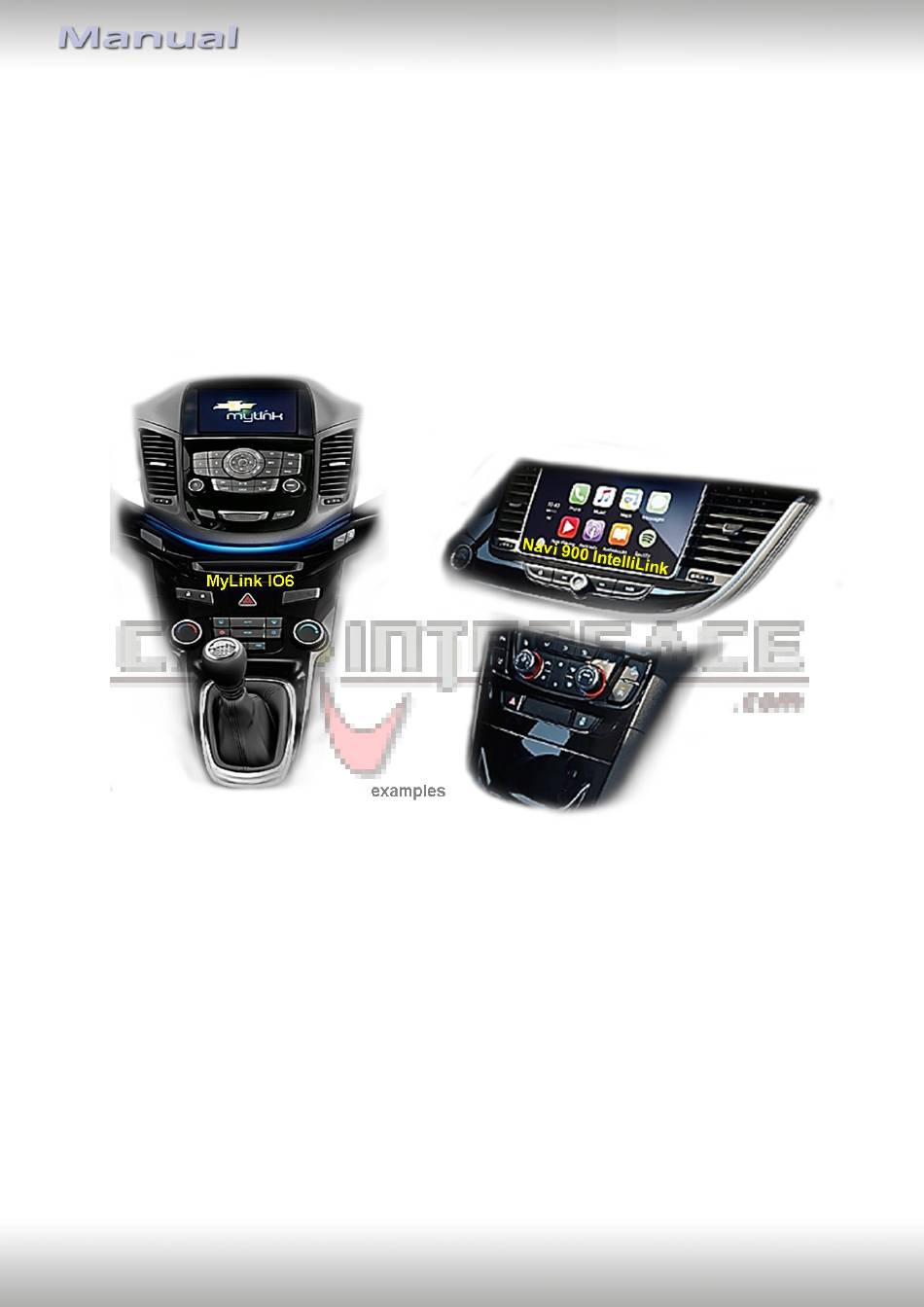

Compatible with
Opel
vehicles with
Navi 900 intelliLink infotainment with 8" touch monitor
Chevrolet
vehicles with MyLink IO6 infotainment
Video-inserter for rear-view camera input
and two additional video sources
Product features
Video-inserter for factory-infotainment systems
2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner)
FBAS Rear-view camera video-input
Automatic switching to rear-view camera input on engagement of the reverse gear
Activatable parking guide lines for rear-view camera (not available on all vehicles)
Video-in-motion in drive mode (ONLY for connected video-sources)
Video inputs NTSC compatible
Version 23.06.2023
HW: CAM(V31)(V55)
CI-RL2-N900
Advertisement
Table of Contents
Related Manuals for Car-Interface CI-RL2-N900
Summary of Contents for Car-Interface CI-RL2-N900
- Page 1 Video-inserter CI-RL2-N900 Compatible with Opel vehicles with Navi 900 intelliLink infotainment with 8” touch monitor Chevrolet vehicles with MyLink IO6 infotainment Video-inserter for rear-view camera input and two additional video sources Product features Video-inserter for factory-infotainment systems 2 CVBS video-inputs for after-market devices (e.g. DVD-Player, DVB-T tuner) ...
-
Page 2: Table Of Contents
Case 2: CAN-box does not receive the reverse gear signal 2.5.2. Audio-insertion 2.6. Connection - video-interface and keypad 2.7. Picture settings and guide lines 3. Switching the video sources 3.1. By infotainment buttons 3.2. By external keypad 4. Specifications 5. Frequently asked questions Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 3: Prior To Installation
Technical knowledge is necessary for installation. The place of installation must be free of moisture and away from heat sources. 1.1. Delivery contents Take down the serial number of the interface and store this manual for support purposes: ____________________ Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 4: Checking The Compatibility Of Vehicle And Accessories
To delay the switch-back an additional electronic part is required. Guidelines Displayed guidelines are not available in all vehicles. Video input signal NTSC video sources compatible only. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 5: Connectors - Video Interface
Try all possible combinations of Dips 6, 7 and 8 to receive adjustments the best picture (quality and size) After each Dip-switch-change a power-reset of the Can-box has to be performed! See following chapters for detailed information. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 6: Enabling The Interface's Video Inputs (Dip 2-3)
CAN box. Dip position “down” is ON and position “up” is OFF. Fahrzeug/Navigation Dip 1 Dip 2 Dip 3 Dip 4 All vehicles After each Dip-switch-change a power-reset of the Can-box has to be performed! Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 7: Installation
Due to changes in the production of the vehicle manufacturer there’s always a possibility of incompatibility. 2.1. Place of installation The interface is built to be connected at the factory monitor. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 8: Connection Schema
2.2. Connection schema Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 9: Connecting - 10Pin Pnp Cable
10pin connector of the 10pin PNP cable. Connect the opposite female 10pin connector of the 10pin PNP cable to the previously become free male 10pin connector at the rear-side of the monitor. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 10: Connection - Picture Signal Cable
Connect the female black colored Mini USB connector of the picture signal cable to the previously become free male Mini USB connector at the rearside of the blackbox. Connect the female waterblue colored HSD+2 connector to the HSD+2 connector of the video interface. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 11: Connection - Video Sources
Connect the video RCA connector of the rear-view camera to the female RCA connector “Camera-IN” of the video cable. Connect the video RCA connectors of additional AV sources to the female RCA connectors „Video IN 1” “Video IN 2”. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 12: After-Market Rear-View Camera
“CAMERA-IN” while the reverse gear is engaged. Additionally, the +12V (max. 500mA) power supply for the rear-view camera can be taken from the green wire of the 6pin to 12pin cable. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 13: Case 2: Can-Box Does Not Receive The Reverse Gear Signal
Connect the output connector (87) of the relay to the rear-view camera’s power- cable, like you did it with the green cable before. Connect permanent power +12V to the relay’s input connector (30). Note: Don’t forget to set the Dip 5 to ON. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 14: Audio-Insertion
Connect the 4pin female connector of the external keypad to the male 4pin connector of the video interface. Note: Regardless if it’ll be used or not, the external keypad should always be connected! In case of non-using, it should be invisibly hidden together with the video interface. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 15: Picture Settings And Guide Lines
Position H (horizontal) Position V (vertical) IR-AV1/2 (no function) Guide L/R (no function) UI-CNTRL (ON/OFF) guide lines Size H/V (picture size horizontal/vertical) Note: If the CAN-box does not support the vehicle’s CAN, the guide-lines cannot be used. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 16: Switching The Video Sources
Factory video video IN1 video IN2 factory video … Disabled inputs will be skipped. Switchover by vehicle buttons isn’t possible in all vehicles. In some vehicles the external keypad has to be used. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... -
Page 17: By External Keypad
Video input formats NTSC Temperature range -40°C to +85°C Dimensions video-box 113 x 22 x 104 mm (W x H x D) Dimensions CAN-box 73 x 23 x 42 mm (W x H x D) Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900... - Page 18 Camera input picture fluorescent light which shines Test camera under natural light outside the garage. flickers. directly into the camera. Camera input picture is Protection sticker not Remove protection sticker from lens. bluish. removed from camera lens. Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900...
- Page 19 Cut the grey wire of 6pin to 8pin and isolate both Interface switches compatibility to vehicle is ends. If problem still occurs, additionally cut the white video-sources by itself. limited. wire of 6pin to 8pin cable and isolate both ends. 10R-03 5384 Made in China Version 23.06.2023 HW: CAM(V31)(V55) CI-RL2-N900...
