Moxa Technologies NPort 5210-T Quick Installation Manual

NPort 5200 Series
Quick Installation Guide
Seventh Edition, September 2014
Overview
The NPort 5200 compact palm-sized device servers are used to
control RS-232 (NPort 5210/5230/5210-T/5230-T) or RS-422/485
(NPort 5230/5232/5232I/5230-T/5232-T/5232I-T) serial devices
over a TCP/IP-based Ethernet.
NOTE "-T" indicates an extended operating temperature model.
Package Checklist
Before installing your NPort 5200, verify that the package contains
the following items:
• 1 NPort 5200 2-port Serial Device Server
• Documentation & Software CD
• NPort 5200 Series Quick Installation Guide
Optional Accessories
DK-35A: DIN-Rail Mounting Kit (35 mm)
CBL-RJ45M9-150: RJ45 (8-pin) to DB9 (M) cable, 150 cm
CBL-RJ45F9-150: RJ45 (8-pin) to DB9 (F) cable, 150 cm
CBL-RJ45M25-150: RJ45 (8-pin) to DB25 (M) cable, 150 cm
CBL-RJ45F25-150: RJ45 (8-pin) to DB25 (F) cable, 150 cm
DIN-Rail Power Supply and Adapter
Note: Notify your sales representative if any of the above items are
missing or damaged.

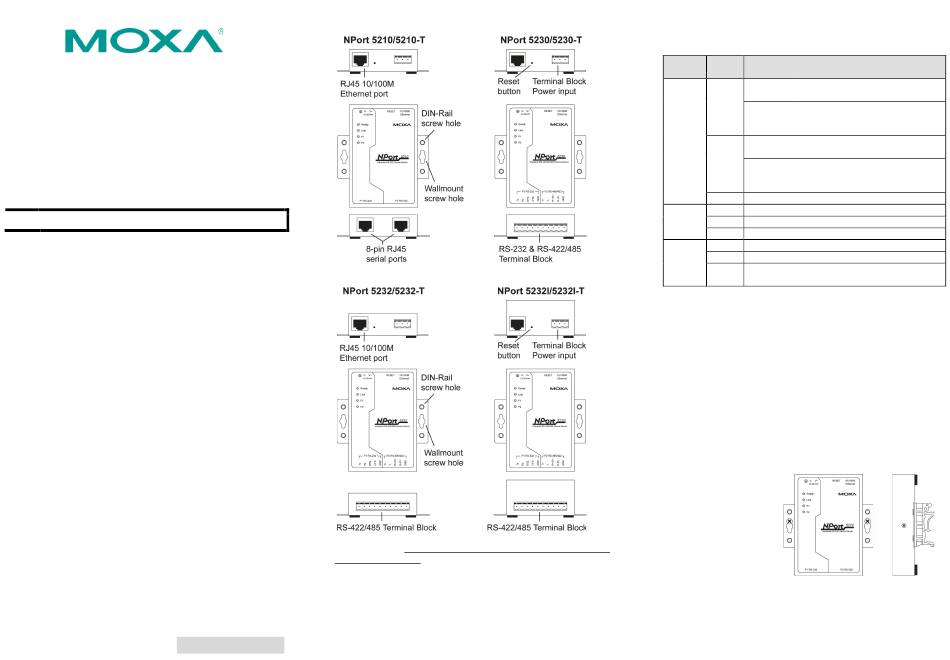

Hardware Introduction
The NPort 5200 device servers are used to control
RS-232/422/485 devices. The NPort 5210/5210-T has two 8-pin
RJ45 ports, both for the RS-232 interface. The NPort 5230/5230-T
has one 10-pin terminal block, with 5 pins used for one RS-232
port, and 5 pins used for one RS-422/485 port. The NPort
5232/5232I/5232-T/5232I-T have one 10-pin terminal block, with
5 pins used for one RS-422/485 port, and 5 pins used for another
RS-422/485 port.
P/N: 1802052000311
– 1 –
Reset Button—Press the Reset button continuously for 5 sec to
load factory defaults: Use a pointed object, such as a straightened
paper clip or toothpick, to press the reset button. This will cause
the Ready LED to blink on and off. The factory defaults will be
loaded once the Ready LED stops blinking (after about 5 seconds).
At this point, you should release the reset button.
– 2 –
NPort 5200 LED Indicators (top panel)
LED LED LED Function
Name Color
Ready red Steady on: Power is on and the NPort 5200 is
booting up.
Blinking: Indicates an IP conflict, or DHCP or
BOOTP server did not respond
properly.
green Steady on: Power is on and the NPort 5200 is
functioning normally.
Blinking: The device server has been located
by Administrator's Location
function
off Power is off, or power error condition exists.
Ethernet orange 10 Mbps Ethernet connection.
green 100 Mbps Ethernet connection.
off Ethernet cable is disconnected, or has a short.
P1, P2 orange Serial port is receiving data.
green Serial port is transmitting data.
off No data is being transmitted or received
through the serial port.
Hardware Installation Procedure
STEP 1: After removing the NPort 5200 from the box, the first
thing you should do is connect the power adapter. Connect the
12-30 VDC power line with the NPort 5200's terminal block, or
connect the DIN-rail power supply with the NPort 5200's terminal
block.
STEP 2: Connect the NPort 5200 to a network. Use a standard
straight-through Ethernet cable to connect to a hub or switch.
When setting up or testing the NPort 5200, you might find it
convenient to connect directly to your computer's Ethernet port. In
this case, use a cross-over Ethernet cable.
STEP 3: Connect the NPort 5200's serial port to a serial device.
STEP 4: Placement Options
Wall Mount
In addition to placing the
NPort 5200 on a desktop
or other horizontal
surface, you may also
make use of the DIN-rail
or wall mount options, as
illustrated here.
– 3 –
DIN-Rail
