Moxa Technologies NPort 5200 Series Quick Installation Manual

NPort 5200 Series

Quick Installation Guide

Fourth Edition, March 2005
1. Overview
The NPort 5200 Series of compact palm-sized device servers are used to
control RS-232 (NPort 5210/5230) or RS-422/485 (NPort
5230/5232/5232I) serial devices over a TCP/IP-based Ethernet.
2. Package Checklist
Before installing NPort 5200, verify that the package contains the
following items:
1 NPort 5200 2-port Serial Device Server
Documentation & Software CD
NPort 5200 Series Quick Installation Guide
Optional Accessories
DK-35A DIN-Rail Mounting Kit (35 mm)
CBL-RJ45M9-150 RJ45 (8-pin) to DB9 (M) cable, 150 cm
CBL-RJ45F9-150 RJ45 (8-pin) to DB9 (F) cable, 150 cm
CBL-RJ45M25-150 RJ45 (8-pin) to DB25 (M) cable, 150 cm
CBL-RJ45F25-150 RJ45 (8-pin) to DB25 (F) cable, 150 cm
DIN-Rail Power Supply and Adapter
Notify your sales representative if any of the above items is missing or
damaged
.

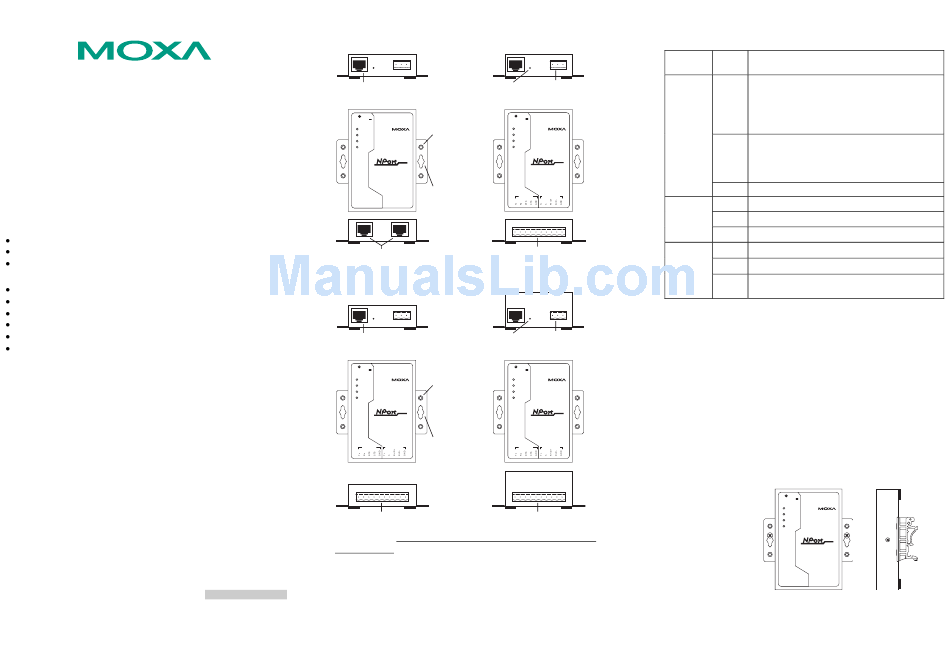

3. Hardware Introduction
The NPort 5200 series of device servers are used to control
RS-232/422/485 devices. NPort 5210 has two 8-pin RJ45 ports, both for
the RS-232 interface. NPort 5230 has one 10-pin terminal block, with 5
pins used for one RS-232 port, and 5 pins used for one RS-422/485 port.
NPort 5232/5232I have one 10-pin terminal block, with 5 pins used for
one RS-422/485 port, and 5 pins used for another RS-422/485 port.
— 1 —
NPort 5210
RJ45 10/100M
Ethernet port
V- V+
12-30V
Ready
Link
P1
P2
Industrial RS-232 Device Server
P1 RS-232
8-pin RJ45
serial ports
NPort 5232
RJ45 10/100M
Ethernet port
V- V+
12-30V
Ready
Link
P1
P2
Industrial RS-422/485 Device Server
P1 RS-232
RS-422/485 Terminal Block
Reset Button—Press the Reset button continuously for 5 sec to load
factory defaults: Use a pointed object, such as a straightened paper clip or
toothpick, to press the reset button. This will cause the Ready LED to
blink on and off. The factory defaults will be loaded once the Ready LED
stops blinking (after about 5 seconds). At this point, you should release
P/N: 1802052000300
the reset button.
NPort 5230
Reset Terminal Block
button Power input
DIN-Rail
RESET 10/100M V- V+ RESET 10/100M
Ethernet 12-30V Ethernet
screw hole
Ready
Link
P1
P2
5230
5210 5210
Industrial RS-232/422/485 Device Server
Wallmount
P1 RS-232 P2 RS-485/422
screw hole
P2 RS-232
RS-232 & RS-422/485
Terminal Block
NPort 5232I
Reset Terminal Block
button Power input
DIN-Rail
RESET 10/100M V- V+ RESET 10/100M
Ethernet 12-30V Ethernet
screw hole
Ready
Link
P1
P2
5210 5232 5232I 5210
Industrial RS-422/485 Device Server
Wallmount
P2 RS-485/422 P1 RS-232 P2 RS-485/422
screw hole
RS-422/485 Terminal Block
— 2 —
NPort 5200 LED Indicators (top panel)
LED LED
LED Function
Name Color
Steady on: Power is on and NPort 5200 is
booting up.
red
Blinking: Indicates an IP conflict, or DHCP or
BOOTP server did not respond
properly.
Ready
Steady on: Power is on and NPort 5200 is
functioning normally.
green
Blinking: The device server has been located
by Administrator's Location function
off Power is off, or power error condition exists.
orange 10 Mbps Ethernet connection.
Ethernet green 100 Mbps Ethernet connection.
off Ethernet cable is disconnected, or has a short.
orange Serial port is receiving data.
green Serial port is transmitting data.
P1, P2
No data is being transmitted or received through
off
the serial port.
4. Hardware Installation Procedure
STEP 1: After removing NPort 5200 from the box, the first thing you
should do is connect the power adaptor. Connect the 12-30 VDC power
line with NPort 5200's terminal block, or connect the DIN-Rail power
supply with NPort 5200's terminal block.
STEP 2: Connect NPort 5200 to a network. Use a standard
straight-through Ethernet cable to connect to a Hub or Switch. When
setting up or testing NPort 5200, you might find it convenient to connect
directly to your computer's Ethernet port. In this case, use a cross-over
Ethernet cable.
STEP 3: Connect NPort 5200's serial port to a serial device.
STEP 4: Placement Options
Wall Mount
In addition to placing
NPort 5200 on a
V+ 10/100M
V- RESET
12-30V Ethernet
desktop or other
Ready
horizontal surface, you Link
P1
may also make use of
P2
the DIN-Rail or Wall
5210
5210
Industrial RS-232 Device Server
Mount options, as
illustrated here.
P1 RS-232 P2 RS-232
— 3 —
DIN-Rail
