BOERPLAY SOLE030.079 Assembly Instructions Manual

Tumble bar/monkey rack
Hide thumbs
1
2
3
4
5
6
7
8
9

Advertisement

Quick Links

Download this manual
Tumble bar/monkey rack
SOLE030.079

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOLE030.079 and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY SOLE030.079

Summary of Contents for BOERPLAY SOLE030.079

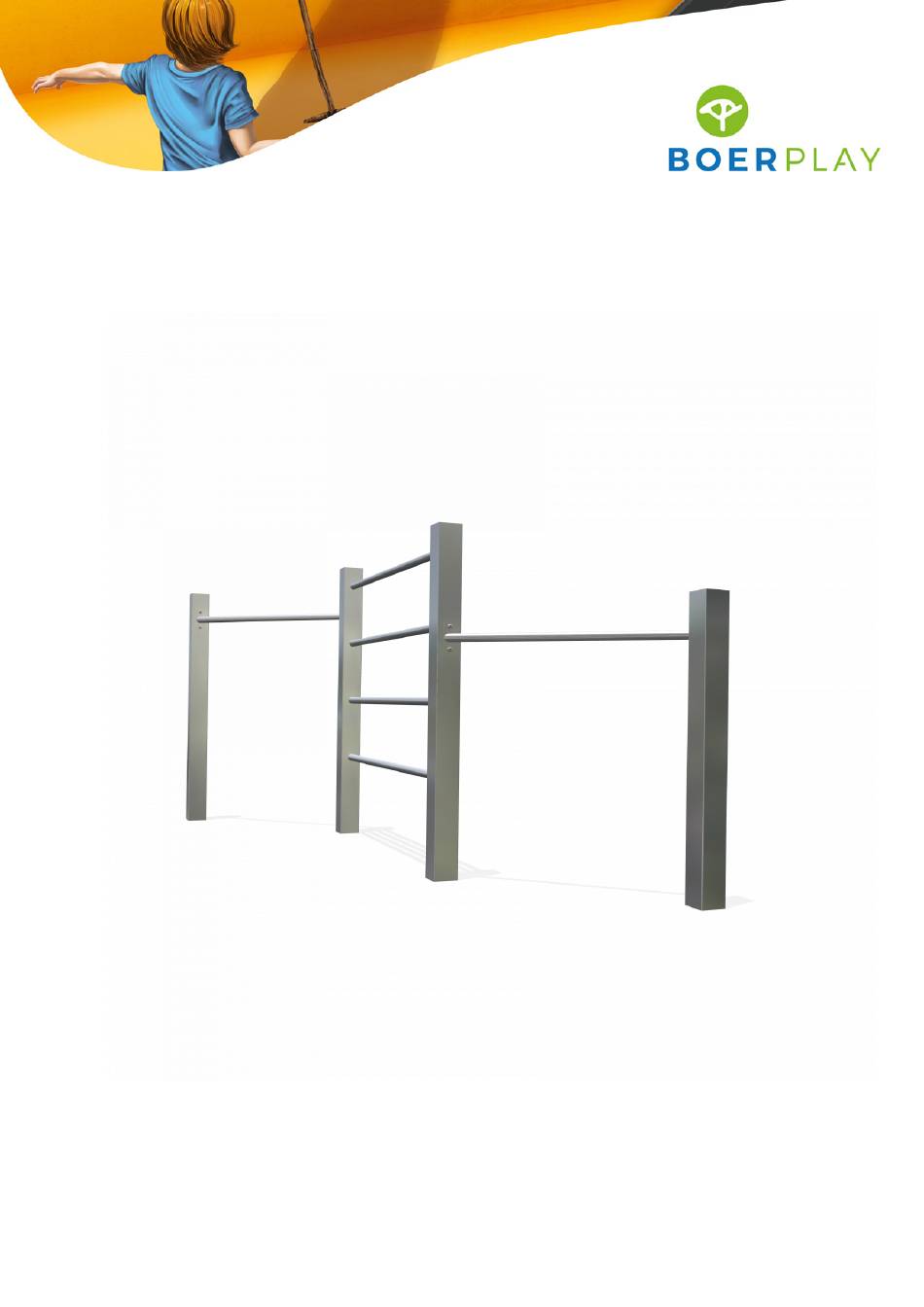

  • Page 1 Tumble bar/monkey rack SOLE030.079...
  • Page 2 1,47 m 1,42 m 0,73 m 0,05 m 0,00 m 1,57 m 1,49 m 1,57 m 1,47 m 1,34 m 1,28 m 1,19 m 1,14 m 0,89 m 0,59 m 0,00 m 0,00 m Benaming TOE SOL 030 079 A Klimklauterrek Title Tekening...
  • Page 3 3,03 m 4,11 m Benaming TOE SOL 030 079 A Klimklauterrek Title Tekening Opmerking RVS Trio Drawing Comment BOER Datum Obstakelvrije Ruimte Obstacle free zone 12-7-2016 Date SPEELTOESTELLEN...
  • Page 4 1,37 m 0,79 m 1,42 m 0,79 m 1,37 m Grondmarkering Ground level marker 0,43 m Benaming TOE SOL 030 079 A Klimklauterrek Title Tekening Opmerking RVS Trio Drawing Comment BOER Datum Bodemplan Groundplan 12-7-2016 Date SPEELTOESTELLEN...
  • Page 5 Supplied modules: Geleverde modules: See table Zie tabel Assembly instruction: Montageinstructie: - The main dimensions indicate the dimensions of the posts and floors - De hoofdmaten geven de maten van de staanders en vloeren aan - The detailed dimensions show the specific dimensions of the connections - De detailtekeningen geven specifiek de maten van de verbindingen aan - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
  • Page 6 SOLE030.079 Tumble bar/monkey rack LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Nature Play Product code SOLE030.079 Name of equipment Duikel / klimrek RVS...

  • Page 7: Maintenance

    LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
  • Page 9 Type Progr. Volgnr Bew. Rev. Benaming Opmerking BOLKOP SCHROEF ISO 7380 - M10 x 25 SLUITRING OPVULDOPJE 6 MM ROOD STAANDER DUIKEL RVS 1.7 M STAANDER DUIKEL RVS 1.9 M KLIMREK DUIKELSTANG 45 GRADEN Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 120 - VZ 8.8 Voetplaat 100 x 100...
