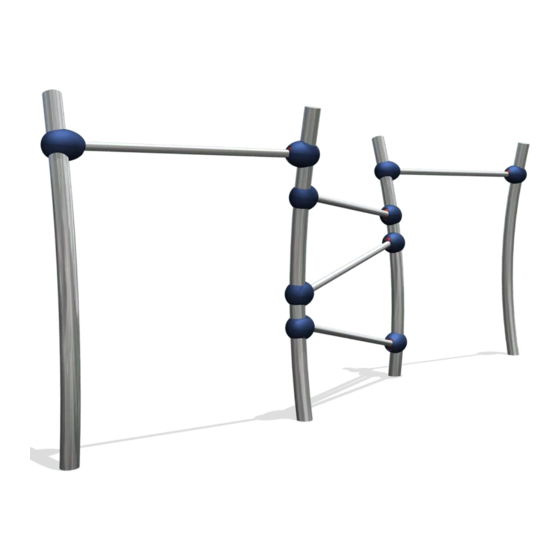

Trio climbing tumble bar
Hide thumbs Also See for SOLE030.222:

Advertisement

Quick Links

Download this manual
Trio climbing tumble bar
SOLE030.222

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOLE030.222 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for BOERPLAY SOLE030.222

Summary of Contents for BOERPLAY SOLE030.222

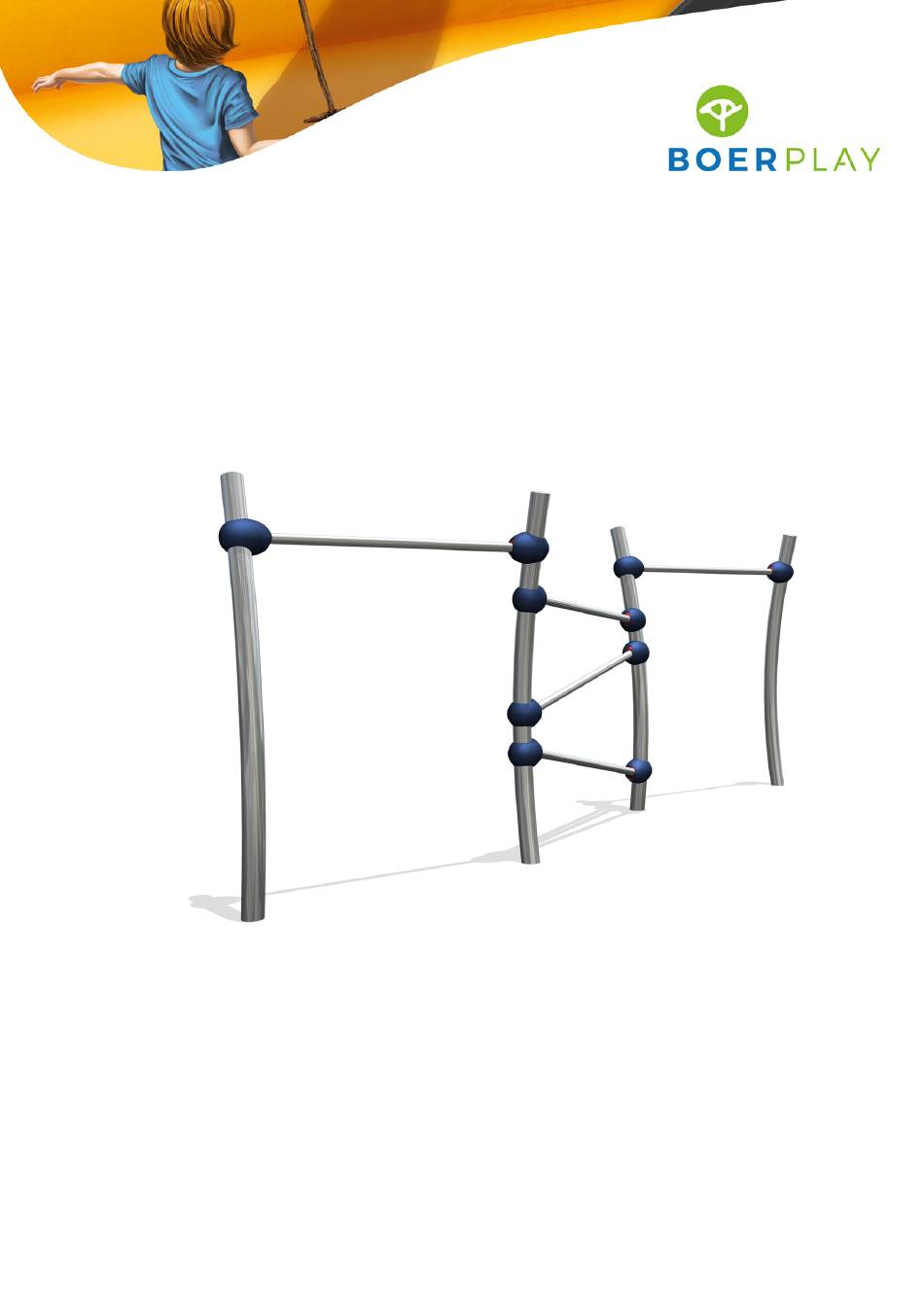

  • Page 1 Trio climbing tumble bar SOLE030.222...
  • Page 2 3,20 m 4,20 m 6,18 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE SOL 030 222 Klimduikel trio Title Tekening Opmerking Pionier Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 26-1-2017 Date SPEELTOESTELLEN...
  • Page 3 6,18 m 4,20 m 0,20 m 4,20 m Grondmarkering Ground level marker Benaming TOE SOL 030 222 Klimduikel trio Title Tekening Opmerking Pionier Drawing Comment BOER Datum Bodemplan Groundplan 26-1-2017 Date SPEELTOESTELLEN...
  • Page 4 1,07 m 0,97 m 1,07 m 1,35 m 1,17 m 1,03 m 0,94 m 0,79 m 0,60 m 0,45 m 0,24 m 0,00 m Benaming TOE SOL 030 222 Klimduikel trio Title Tekening Opmerking Pionier Drawing Comment BOER Datum Afmetingen Dimensions 26-1-2017 Date SPEELTOESTELLEN...
  • Page 5 Geleverde modules: Supplied modules: Zie tabel See table Montageinstructie: Assembly instruction: - De hoofdmaten geven de maten van de staanders en vloeren aan - The main dimensions indicate the dimensions of the posts and floors - De detailtekeningen geven specifiek de maten van de verbindingen aan - The detailed dimensions show the specific dimensions of the connections - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat - The modules which contain tubes are dimensioned at the top of the flanges...
  • Page 6 SOLE030.222 Trio climbing tumble bar LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Pioneer Play Product code SOLE030.222 Name of equipment Klimduikel Trio pionier...

  • Page 7: Maintenance

    LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
  • Page 9 Grondmarkering Ground level marker 115 cm Duikel frame EI 05 Submodule TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 500 000 Duikelrek Title...
  • Page 10 Submodule EI 05 Klimstang PNR 33.7x2 Lengte 1020 cm HOH TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 502 000 Duikelstang 100 cm Title...
  • Page 11 Submodule EI 05 Klimstang PNR 33.7x2 Lengte 1000 cm HOH TYPE PROJ. BEH. BENAMING OPMERKING B B B B e e e e n n n n a a a a m m m m i i i i n n n n g g g g MOD PNR 503 000 Duikelstang 98 cm Title...
