Summary of Contents for BOERPLAY SOLE030.102

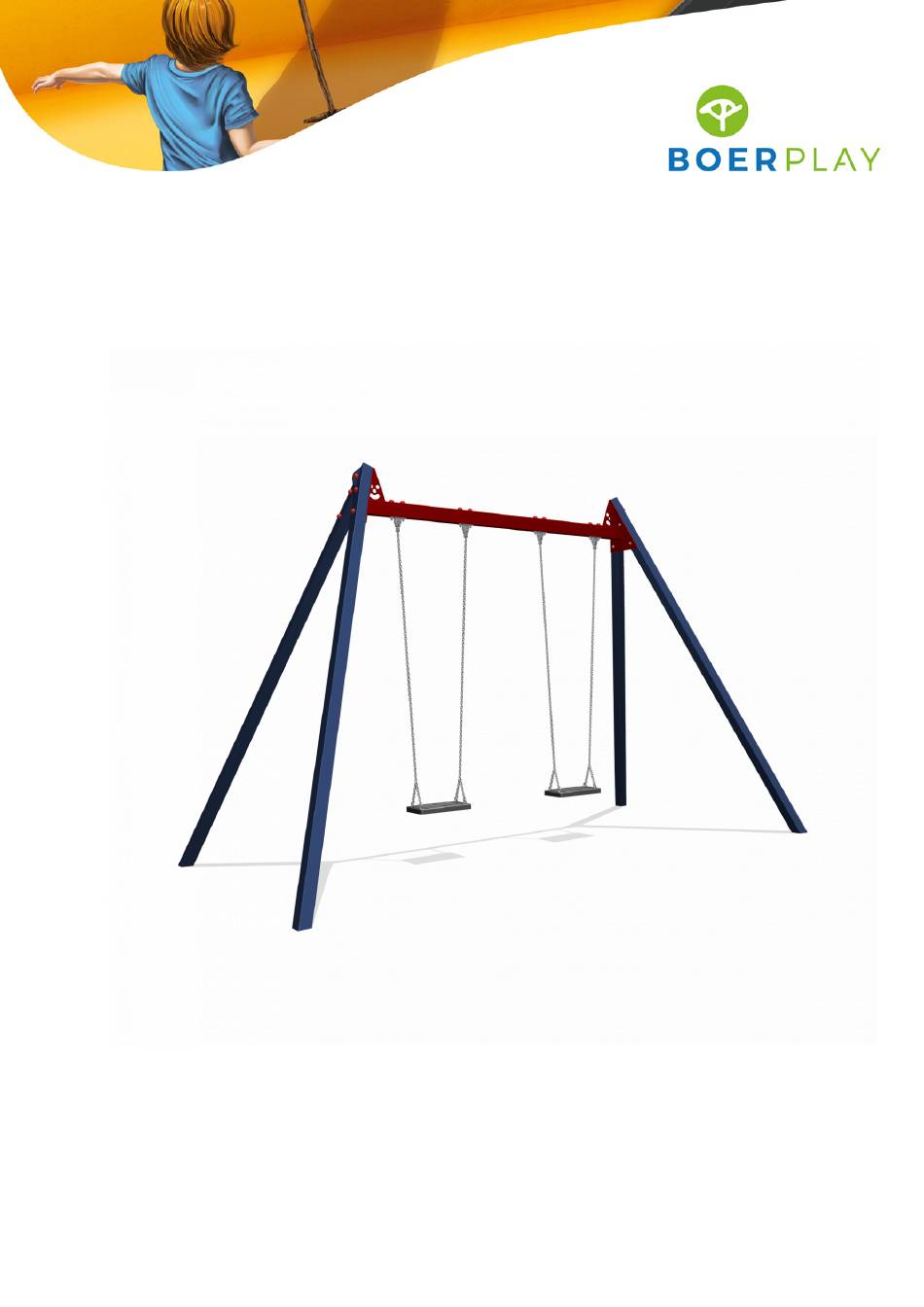

- Page 1 Swing (2 seats) SOLE030.102...
- Page 2 4,41 m 2,81 m 2,56 m 2,46 m 0,00 m Benaming TOE SOL 030 102 A Swoeng Title Tekening Opmerking Metal dubbel Drawing Comment Datum Afmetingen Dimensions 22-12-2014 Date...
- Page 3 7,42 m 3,03 m 5,35 m Obstakelvrij EN-1176 Obstacle free EN-1176 Opvangzone Impact area Obstakelvrij WAS Obstacle free WAS Benaming TOE SOL 030 102 A Swoeng Title Tekening Opmerking Metal dubbel Drawing Comment Datum Obstakelvrije zone Obstacle free zone 22-12-2014 Date...
- Page 4 0,37 m Grondmarkering Ground level marker 0,62 m Benaming TOE SOL 030 102 A Swoeng Title Tekening Opmerking Metal dubbel Drawing Comment Datum Bodemplan Groundplan 22-12-2014 Date...
- Page 5 Supplied modules: Geleverde modules: See table Zie tabel Assembly instruction: Montageinstructie: - The main dimensions indicate the dimensions of the posts and floors - De hoofdmaten geven de maten van de staanders en vloeren aan - The detailed dimensions show the specific dimensions of the connections - De detailtekeningen geven specifiek de maten van de verbindingen aan - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
- Page 6 SOLE030.102 Swing (2 seats) LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Classic Play Product code SOLE030.102 Name of equipment Dubbele gecoate schommel Maximum height of fall...
-
Page 7: Maintenance
LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear. - Page 9 Type Progr. Volgnr Bew. Rev. Benaming Opmerking DOPMOER BORG RVS M10 Zeskantbout M10 x 130 - RVS A2-70 M10 - RVS A2-70 Sluitring Schommelscharnier RVS A2-70 Beschermdop M10-M12 Donut Rood Beschermdop M10-M12 Dop rood Zitje incl. ketting Zeskantbout M8 x 25 - RVS A2-70 Sluitring M8 - RVS A2-70 Schommelzitje CNK...
- Page 10 Type Progr. Volgnr. Bew. Rev. Benaming Opmerking Borgmoer M10 - RVS A2-70 DOPMOER BORG RVS M10 Zeskantbout M10 x 30 - RVS A2-70 Zeskantbout M10 x 105 - RVS A2-70 SLUITRING Borgmoer M10 - VZ 8.8 Zeskantbout ISO 4014 M10 x 100 - VZ 8.8 SLUITRING M10 VZ Beschermdop M10-M12...
