BOERPLAY SOLE030.140 Manual

Revolving plate
Hide thumbs Also See for SOLE030.140:

Advertisement

Quick Links

Download this manual
Revolving plate
SOLE030.140

Advertisement

loading
Need help?

Need help?

Do you have a question about the SOLE030.140 and is the answer not in the manual?

Questions and answers

Related Manuals for BOERPLAY SOLE030.140

Summary of Contents for BOERPLAY SOLE030.140

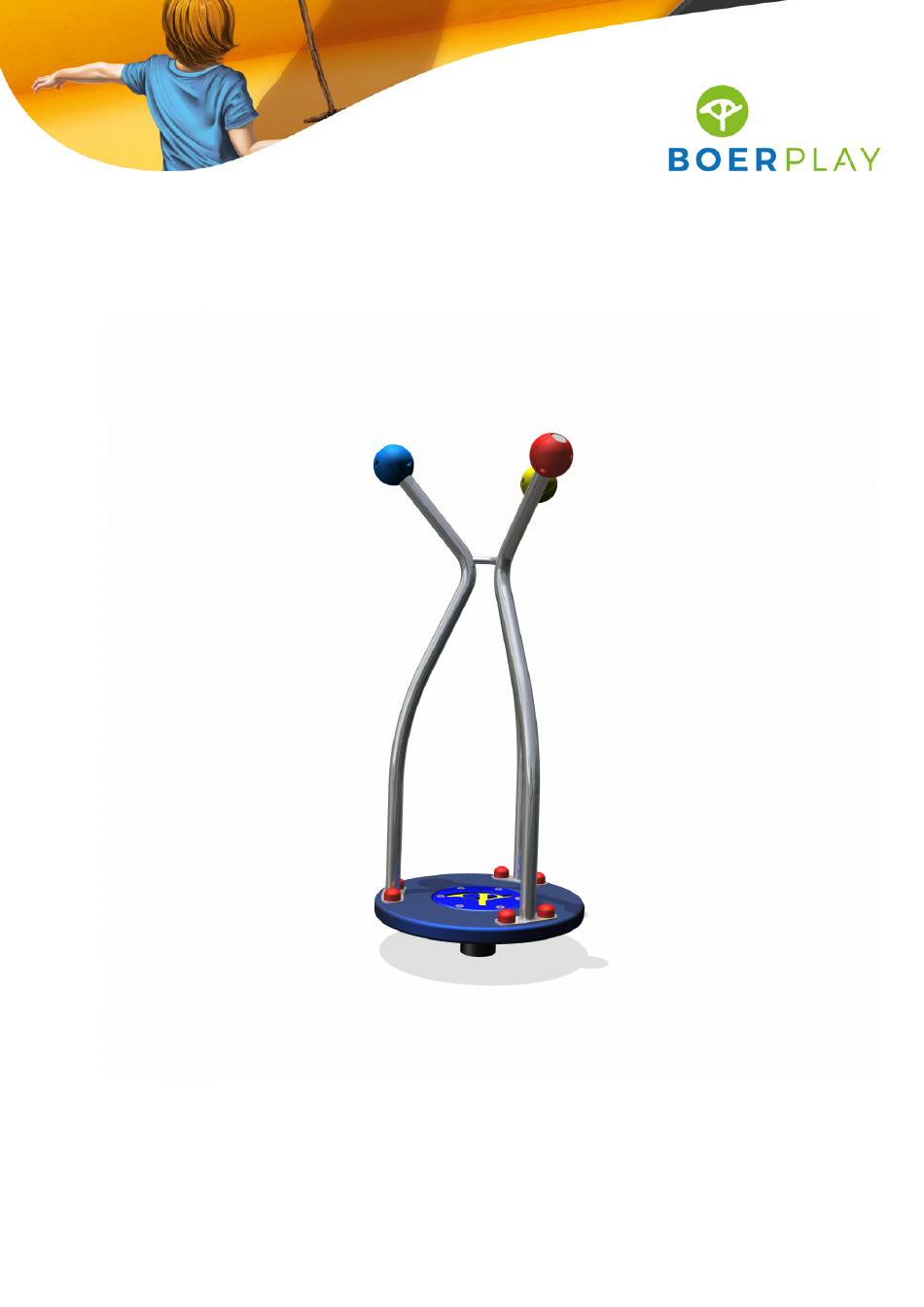

  • Page 1 Revolving plate SOLE030.140...
  • Page 2 1,15 m 0,13 m 0,00 m Ø 0,48 m Benaming TOE SOL 030 140 B Instapduizel Title Tekening Opmerking Drawing Comment BOER Datum Afmetingen Dimensions 8-8-2016 Date SPEELTOESTELLEN...
  • Page 3 1,50 m 3,48 m Opvangzone Impact area Obstakelvrije zone Obstacle free zone Benaming TOE SOL 030 140 B Instapduizel Title Tekening Opmerking Drawing Comment BOER Datum Obstakelvrije zone Obstacle free zone 8-8-2016 Date SPEELTOESTELLEN...
  • Page 4 1,42 m 1,42 m 0,64 m Grondmarkering Ground level marker Benaming TOE SOL 030 140 B Instapduizel Title Tekening Opmerking Drawing Comment BOER Datum Bodemplan Groundplan 8-8-2016 Date SPEELTOESTELLEN...
  • Page 5 Supplied modules: Geleverde modules: See table Zie tabel Assembly instruction: Montageinstructie: - The main dimensions indicate the dimensions of the posts and floors - De hoofdmaten geven de maten van de staanders en vloeren aan - The detailed dimensions show the specific dimensions of the connections - De detailtekeningen geven specifiek de maten van de verbindingen aan - The modules which contain tubes are dimensioned at the top of the flanges - De modules met buizen zijn op de tekeningen bemaat op bovenkant kopplaat...
  • Page 6 SOLE030.140 Revolving plate LOGBOOK (Onderstaand logboek kan gebruikt worden om te voldoen aan de eisen, gesteld in artikel 14 van het Warenwetbesluit Attractie- en Speeltoestellen) Type indication Pioneer Play Product code SOLE030.140 Name of equipment Instapduizel Maximum height of fall...

  • Page 7: Maintenance

    LOGBOOK Inspection and maintenance intervals months Inspection Maintenance between inspections Verify equipment's stability, junctions and missing parts. Add missing parts, secure joints, apply missing fixing Inspect bolts, screws and nuts for absence, jams, corrosion agent and replace corroded parts. and wear. Replace worn parts and/or remove non-functioning Check suspension for wear.
  • Page 9 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Zeskantmoer M16 - VZ 8.8 Carrosseriering M16 x 50 - VZ 8.8 Poermodel 7 245 kg Benaming MOD OBT 007 002 Poermodel 7 Title Tekening Opmerking 245 kilo Drawing Comment BOER Datum Samenstelling module Assembly module 13-2-2014 Date SPEELTOESTELLEN...
  • Page 10 4 10 5 2 12 Type Progr. Bew. Rev. Benaming Volgnr Opmerking 3,5 x 19 - RVS A2-70 Zelfb. schroef Borgmoer M10 - RVS A2-70 DOPMOER BORG RVS M10 Verzonken bout M10 x 60 - RVS A2-70 SLUITRING CARROSSERIERING M10 x 30 x 2,5 Telbol helft Blauw Telbol helft...
  • Page 11 Type Progr. Volgnr Bew. Rev. Benaming Opmerking Bolkopbout ISO 7380 M10 x 16 - RVS A2-70 55 x 2,00 - VZ 8.8 Circlip DIN 471 Ø75 x Ø55 x 10 Oliekeerring Afstandbus Duizelanker Stop Duizel Kogellager 6009 6009 2RSR - 75x45 Anker Duizel Duizel...
